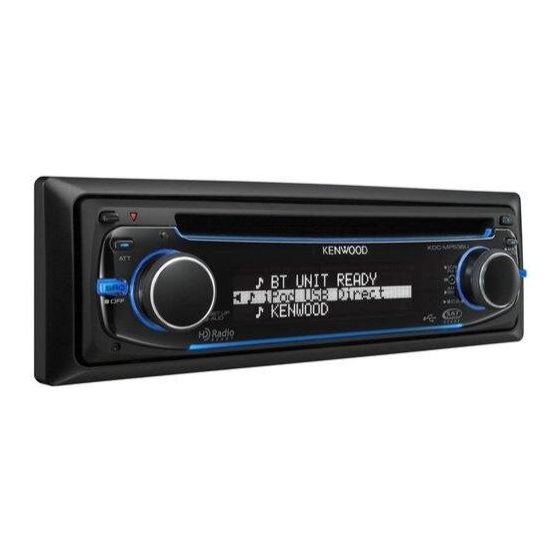

Kenwood KDC-MP538U Service Manual

CD RECEIVER
KDC-MP538U/MP6039/MP6539U
KDC-W6041U/W6141UY
KDC-W6541U/W6641UY
KDC-X592
SERVICE MANUAL
KDC-MP538U : Panel assy (A64-4436-11)
KDC-MP6539U : Panel assy (A64-4441-11)
KDC-W6141UY : Panel assy (A64-4440-11)
KDC-W6641UY : Panel assy (A64-4438-11)
* Cover
(F19-1475-04)
* Screw set * Escutcheon
(N99-1790-05) (B07-xxxx-xx)
Mounting hardware assy
(J21-9716-03)
* Screw (4x16)
(N84-4016-48)
* Depends on the model. Refer to the parts list.
(TENTATIVE)
KDC-MP538U
KDC-MP6539U
KDC-W6141U
KDC-W6641U
* Compact disc
(W01-1723-05)
* Carrying case
(W01-1710-05)
* DC cord
(E30-6428-05)
* Screw set
Lever
(N99-1757-15) (D10-7012-04) x2
This product complies with the
© 2008-4 PRINTED IN JAPAN
B53-0631-00 (N) 519
KDC-MP6039 : Panel assy (A64-4442-11)
KDC-W6041U : Panel assy (A64-4439-11)
KDC-W6541U : Panel assy (A64-4437-11)
KDC-X592 : Panel assy (A64-4435-11)
TDF SPARE-PANEL
MAIN UNIT NAME TDF PARTS No.
KDC-MP538U Y33-2950-61
KDC-MP6039 Y33-2950-65
KDC-MP6539U Y33-2950-64
KDC-W6041U Y33-2950-63
KDC-W6141UY Y33-2950-63
KDC-W6541U Y33-2950-62
KDC-W6641UY Y33-2950-62
KDC-X592 Y33-2950-60
* DC cord * Remote controller assy (RC-547)
(A70-2085-05)
(E30-6671-05)
* Plastic cabinet assy
(A02-2755-13)
This product uses Lead Free solder.
RoHS
KDC-MP6039
KDC-W6041U
KDC-W6541U
KDC-X592
TDF NAME
TDF-MP86D
TDF-MP6039
TDF-MP6539U
TDF-W6041U
TDF-W6041U
TDF-W6541U
TDF-W6541U
TDF-86DX
Battery
(Not supplied)
directive for the European market.
