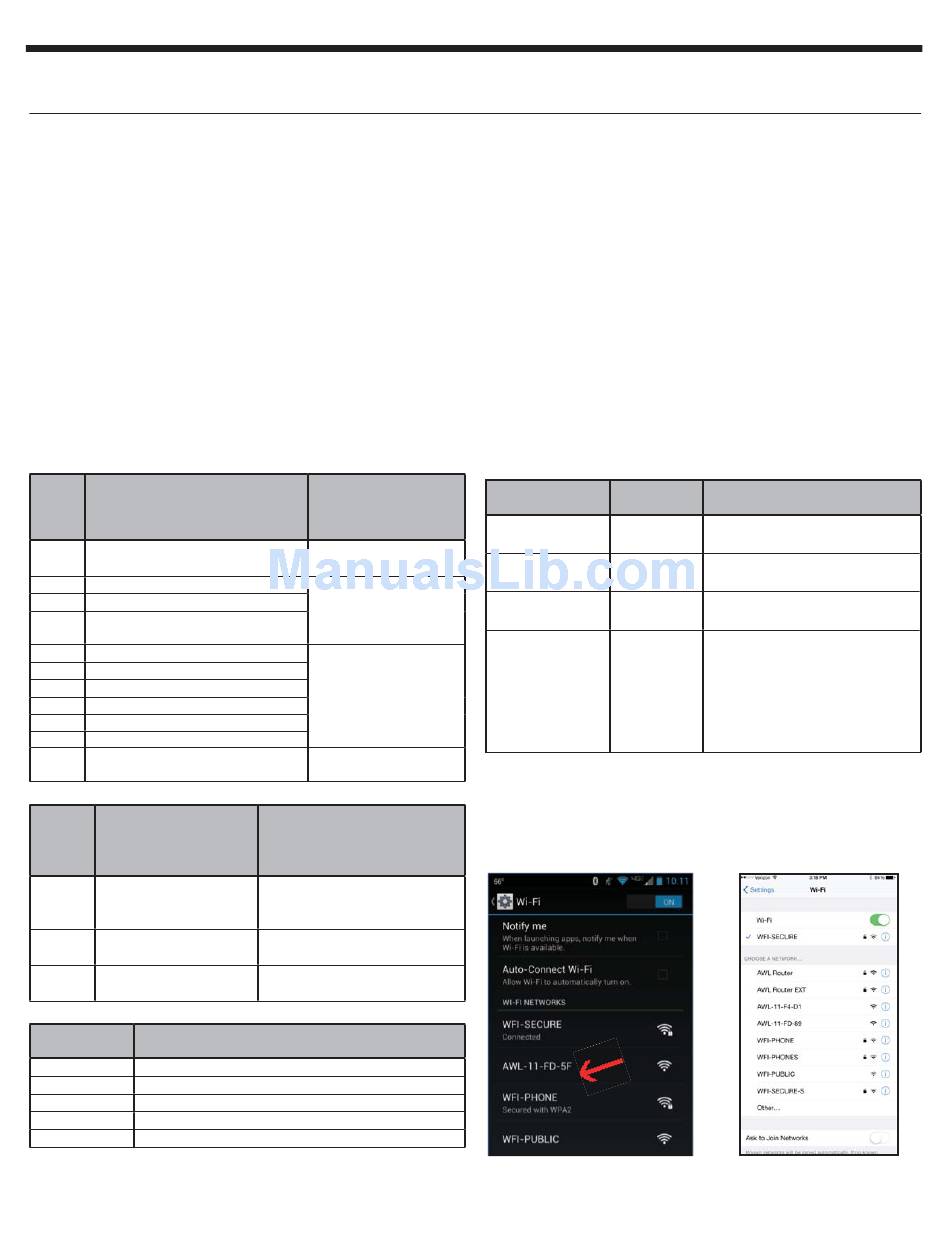

Aurora WebLink (AWL) Installation and Confi guration cont.

AWL LED Status Lights and Mode Button

In WebLink Mode, the Green LED will mostly be solid (10
seconds ON / 1/2 second OFF). During Local Configuration
mode it will blink fast (1/4 second ON / 1/4 second OFF).
To switch between WebLink Mode and Local Configuration
Mode press and hold the AWL Mode button for 5 or more
seconds. You should see the Green LED blink at the new mode
rate.
The Yellow LED will stay on if the AWL is communicating to the
ABC. If communications are lost, it will blink 2 times.
The Blue LED will stay on if the AWL is connected to and
communicating with the AWL Host Server. If communications
are lost, it will blink different blink counts, depending on the
error.
Blue
LED
Description
Blink
Codes
2 No Wi-Fi Connectivity
3 DNS Begin Usage Timeout
4 DNS Resolving Host Timeout
5 DNS Name Resolving Failed
6 Socket Connect Error
7 Socket Connect Timeout
8 Start SSL Timeout
9 SSL Handshake Timeout
10 Start WebSocket Timeout
11 WebSocket Handshake Timeout
WebSocket Communications are
Solid
Good
Yellow
LED
Description
Blink
Codes
ABC Communications
2
Timeout
ABC to AWL Communi-
3
cation Not Supported
ABC Communications
Solid
are Good
Green LED
Description
Blink Codes
2 SD Card not Present
3 SD Card Invalid File System
4 SD Card Write Protect is On
Mostly Solid WebLink Mode (10 seconds on / 1/2 second off)
Fast Local Mode (1/4 second on / 1/4 second off)
Action
Make sure pass phrase
is correct
Check internet pro-
vider to make sure
the internet service is
good
Symphony server is
temporarily out for ser-
vice. Try again later.
None
Action
Make sure the connection to
the heat pump is good.
ABC/AXB fi rmware needs
updated for AWL Support
None
AURORA WEBLINK (AWL) INSTALLATION GUIDE

WebLink Mode and Local Mode

In WebLink Mode, the AWL passes the heat pump system
information (data, request) back and forth between the Aurora
system and WaterFurnace Server through the customer's
personal router and internet.
In Local Mode, the AWL passes the heat pump system
information (data, request) back and forth between the Aurora
system and your local devices (smartphone, tablet, or laptop
computer). There is a maximum of 4 local devices that can be
connected to an AWL at a given time. The AWL will only stay
in Local Mode for 30 minutes, and will automatically switch to
WebLink Mode if WebLink Mode has been pre-configured. If
the AWL was never configured for WebLink Mode, it will stay in
Local Mode continually.

Powering up the AWL

Power Up Mode
Before
Local Mode
Confi guration
After WebLink
Confi guration Mode
Without Local Mode
SD Card
Using a different Local Mode
SD Card

Using Local AID Tool Web Pages on a Phone

Enter Local Mode by pressing the AWL Mode button for 5
seconds. On your phone, select the AWL-XX-XX-XX Wireless
Network in the phone's Wi-Fi Settings.
Android
10
Notes
Complete the confi guration to
enter WebLink Mode
Allows internet access to the
web portal
Install original SD card and
re-enter WebLink Mode
System data will be saved to
the SD card but it will not be
possible to enter WebLink
Mode due to missing fi les on
the SD card. Install the original
SD card or contact
WaterFurnace Technical
Service department
iPhone
