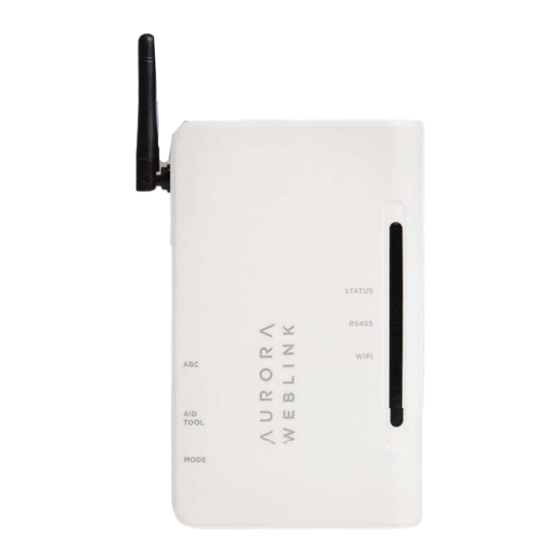

Symphony Aurora WebLink Installation Manual
  1. Manuals
  2. Brands
  3. Symphony Manuals
  4. Network Router
  5. Aurora WebLink
  6. Installation manual

Symphony Aurora WebLink Installation Manual

Hide thumbs Also See for Aurora WebLink:

Advertisement

Table of Contents

Aurora WebLink
Installation Guide
*IG2001EW*
IG2001EW 05/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aurora WebLink and is the answer not in the manual?

Questions and answers

Related Manuals for Symphony Aurora WebLink

Summary of Contents for Symphony Aurora WebLink

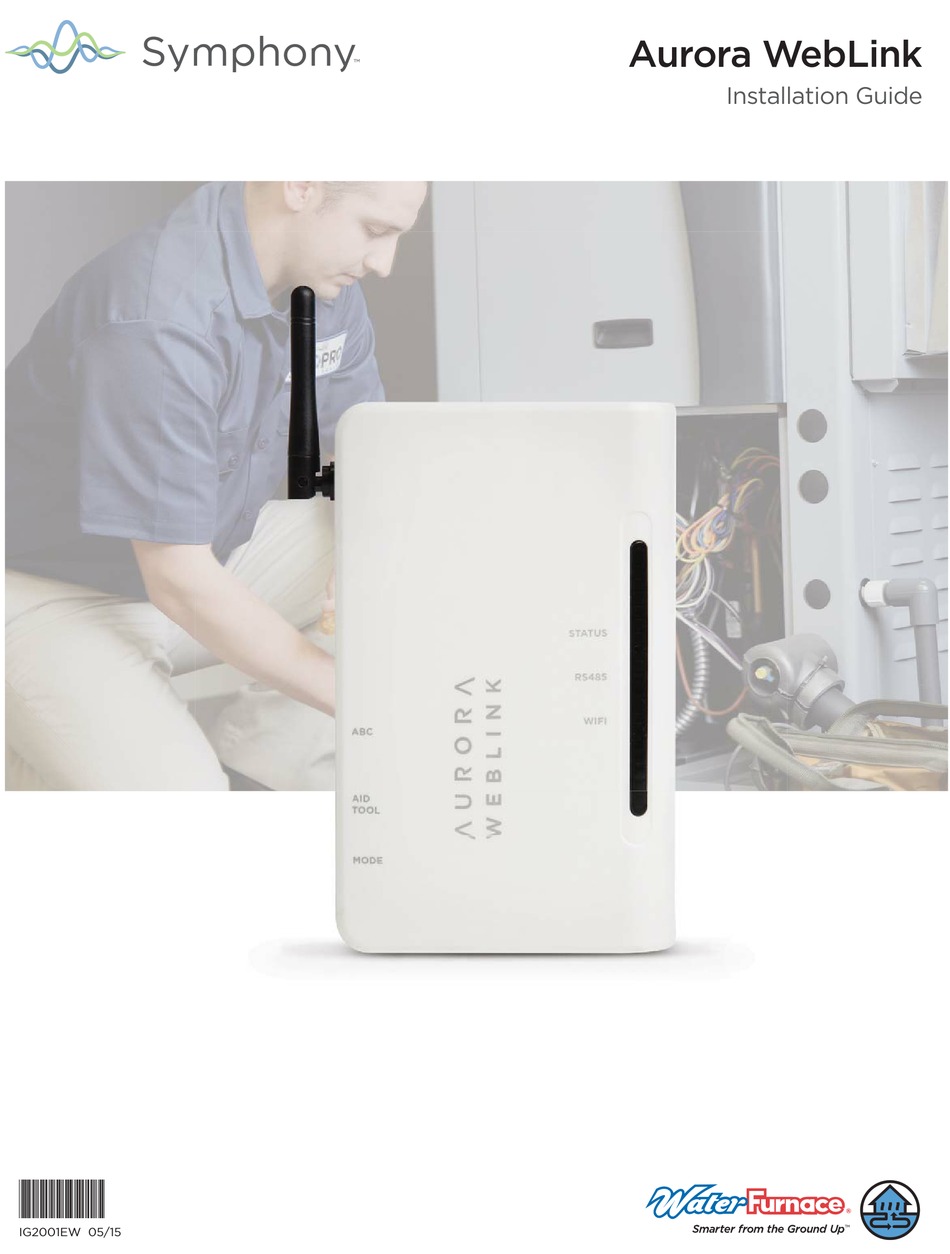

  • Page 1 Aurora WebLink Installation Guide *IG2001EW* IG2001EW 05/15...

  • Page 2: General Information

    Symphony is NOT intended as a SAFETY DEVICE. Instead, Symphony is intended ONLY to provide you with convenient notifi cation of the status of your equipment. A Symphony/AWL limited Warranty Certifi cate was shipped with the device. The system is not a certifi ed emergency response service and may not be linked to any emergency service contact numbers.

  • Page 3: Sensor Kit Options

    Compatibility The Symphony Aurora WebLink (AWL) system is backward compatible to several 5 and 7 Series packaged models that support Aurora ABC and have a communicating thermostat. Before applying the AWL to the heat pump, make sure both the ABC, AXB (if equipped), and communicating thermostats (TPCC32U01, TPCM32U03A, TPCM32U04A, or MasterStat,) have the latest fi...

  • Page 4: Controls Board Firmware Upgrade

    Controls Board Firmware Upgrade Refer to the Compatibility Section for a list of 3, 5 and 7 Series products that can be updated to be compatible with the Symphony/ AWL system. Early 5 Series units with ABC only were shipped with ABC Rev1 boards. These are NOT compatible with Symphony and will need replaced with ABC Rev2 boards as identifi...

  • Page 5: The Update Process

    C32U01 thermostat (fi rmware version 1.04 or less) will not retain confi guration settings. Versions later will retain confi guration settings when updated. 8. Turn Off Unit and unpack Aurora Weblink (AWLK01) and plug into front of unit. 9. Install and confi gure the AWL.
  • Page 6 AURORA WEBLINK (AWL) INSTALLATION GUIDE Aurora WebLink (AWL) Installation and Confi guration Orientation The AWL can be installed either fl at, or standing up. The antenna needs to be in an upward position once the fi nal AWL orientation is decided.
  • Page 7 AURORA WEBLINK (AWL) INSTALLATION GUIDE Aurora WebLink (AWL) Installation and Confi guration Mounting AWL on a Heat Pump Using Dual Lock (Included) There is a piece of Dual Lock™ (actual product may vary from photo) provided in each box to mount the AWL on the unit.
  • Page 8 AURORA WEBLINK (AWL) INSTALLATION GUIDE Aurora WebLink (AWL) Installation and Confi guration cont. Verify the system has the latest control board and Open your web browser (Internet Explorer, FireFox, Chrome, Etc) and enter 172.20.10.1 in your browser and press return.
  • Page 9 AURORA WEBLINK (AWL) INSTALLATION GUIDE Aurora WebLink (AWL) Installation and Confi guration cont. Select your home network from the list that appears. The reinstalling the original there are 3 options to return to WebLink example below is with the WaterFurnace networks. Your Mode, press and hold the mode button for 5 or more seconds, available networks will be different than the example shows.
  • Page 10 AURORA WEBLINK (AWL) INSTALLATION GUIDE Aurora WebLink (AWL) Installation and Confi guration cont. Click on the change Wi-Fi Network button: You should see an AWL Web Setup Complete screen: After 20 to 30 seconds, you should see the BLUE LED on the...

  • Page 11: Awl Led Status Lights And Mode Button

    AURORA WEBLINK (AWL) INSTALLATION GUIDE Aurora WebLink (AWL) Installation and Confi guration cont. AWL LED Status Lights and Mode Button WebLink Mode and Local Mode In WebLink Mode, the Green LED will mostly be solid (10 In WebLink Mode, the AWL passes the heat pump system seconds ON / 1/2 second OFF).
  • Page 12 AURORA WEBLINK (AWL) INSTALLATION GUIDE Aurora WebLink (AWL) Installation and Confi guration cont. Enter 172.20.10.1 in the phone’s browser, and then select the AID The menus are similar to the actual AID Tool. For example, to Tool (Unit Found) option:...

  • Page 13: Accessing The Symphony Tech Portal

    The Sensor Input screen is shown below: Android iPhone Accessing the Symphony Tech Portal For more details on the features of the Symphony Tech Portal, please visit www.auroracontrols.com/toolbox to view and download Instruction Guide IG2002EW “Symphony Tech Portal Quick-Start Guide.” IG2001EW...

  • Page 14: External Sump Alarm Sensor For Aurora Controls

    External Sump Alarm Sensor for Aurora Controls The Symphony/AWL System provides the infrastructure not only for status and fault notifi cation of the geothermal unit but also sensors external to the heat pump. This is accomplished by using the exclusive Home Automation Inputs of the Aurora AXB board and external sensors to provide the same e-mail/text notifi...
  • Page 15 AURORA WEBLINK (AWL) INSTALLATION GUIDE Notes: Account Name: Location Address/City/State: Unit Name: AWL ID: IG2001EW...
  • Page 17 FCC Compliance Statement The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 18 9000 Conservation Way Fort Wayne, IN 46809 www.waterfurnace.com *IG2001EW* Product: Aurora WebLink (AWL) Installation Guide Document: Installation Guide IG2001EW IG2001EW 05/15 ©2015 WaterFurnace International, Inc., 9000 Conservation Way, Fort Wayne, IN 46809-9794. WaterFurnace has a policy of continual product re- search and development and reserves the right to change design and specifi...
