Camera Module Installation

Align the camera module to the camera slot on the bezel.
1.
Attach the mylar to the camera.
2.
Install the mainboard (see
3.
5-42

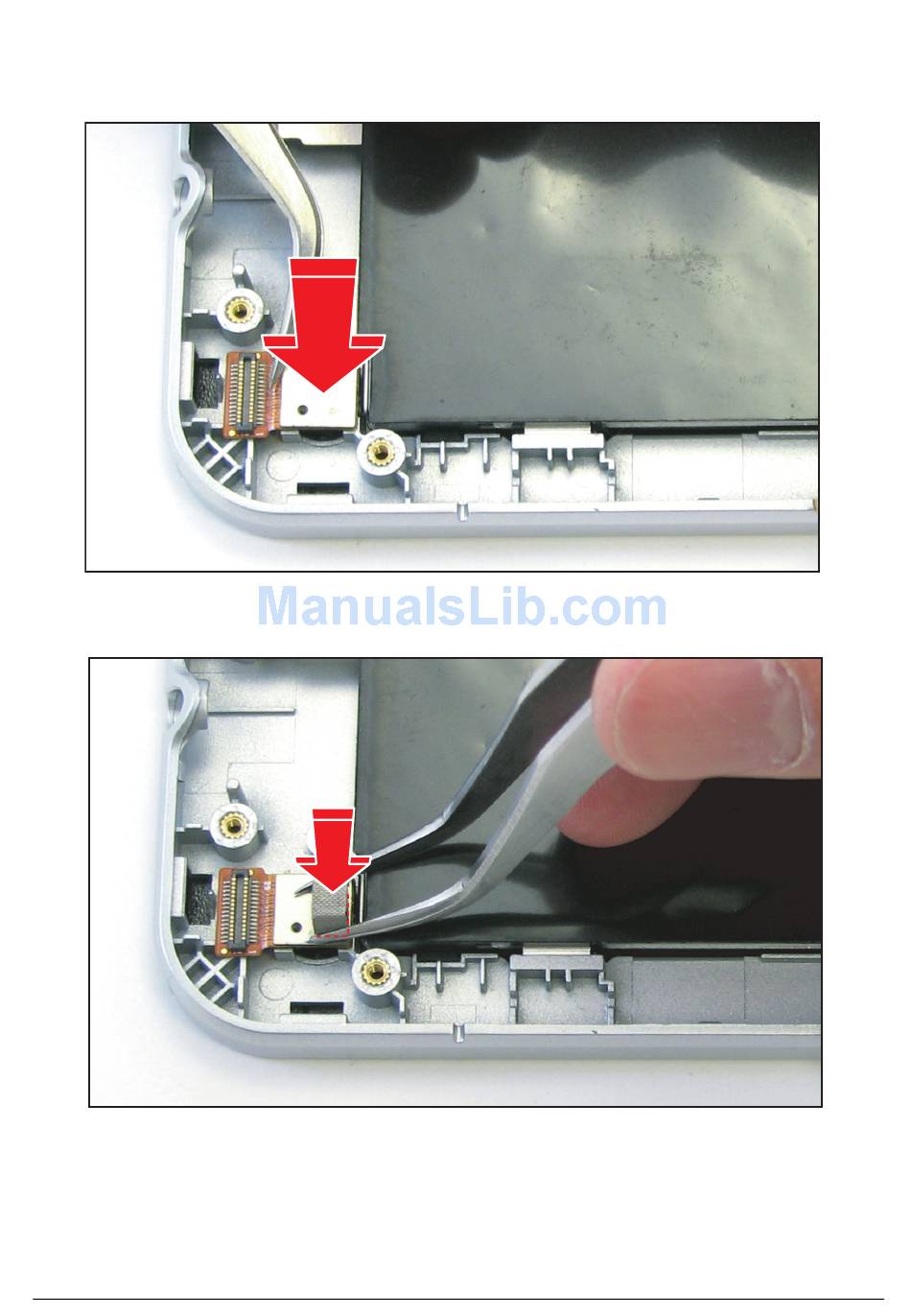

Figure 5-63. Aligning the Camera Module
Figure 5-64. Attaching the Mylar
Mainboard Installation
on page 5-29).
Service and Maintenance
