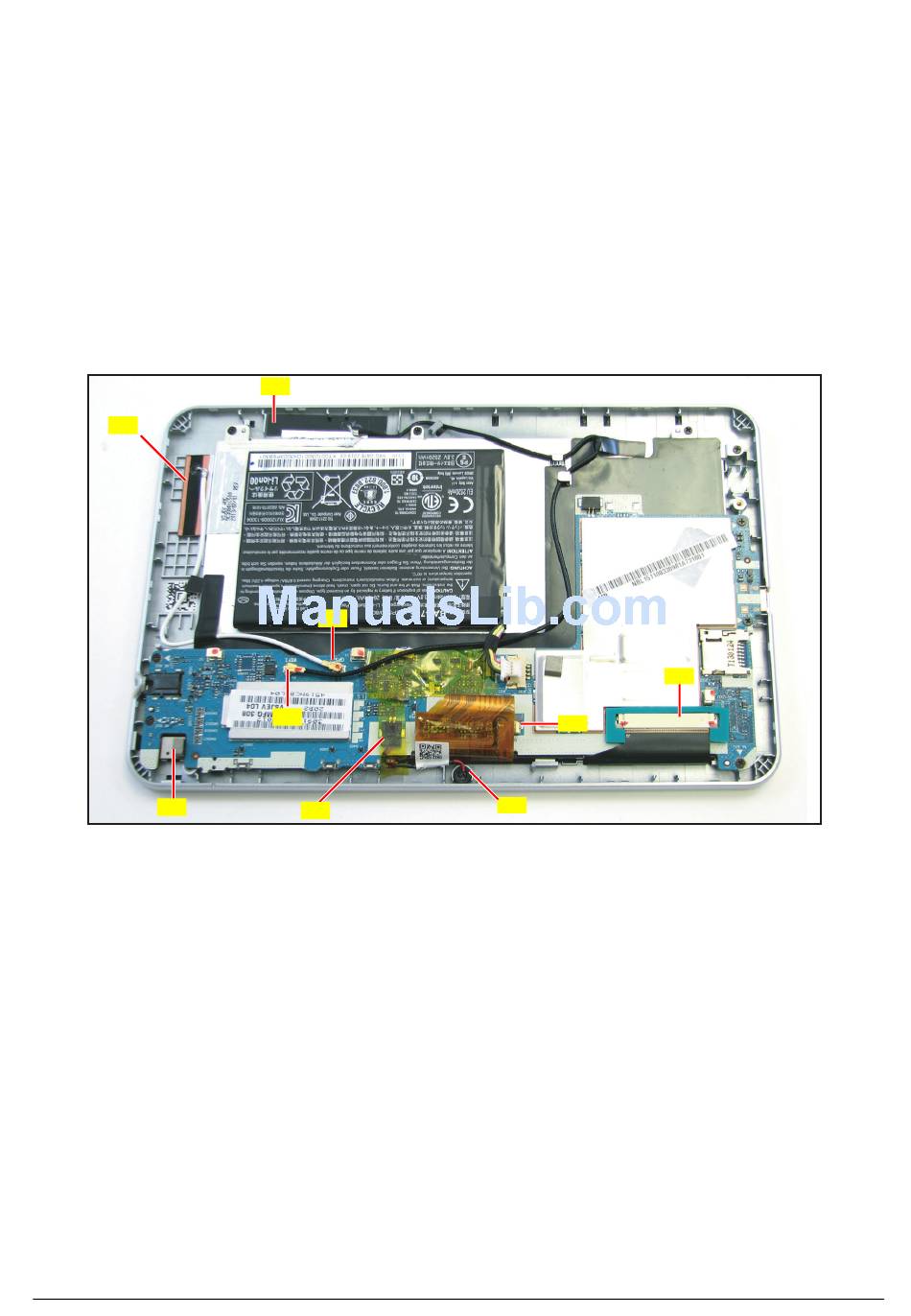

The following components can be found on the bezel:
GPS antenna (A)
a.
WLAN antenna (B)
b.
Camera (C)
c.
WLAN antenna connector (D)
d.
GPS antenna connector (E)
e.
Microphone connector (F)
f.
Microphone (G)
g.
LCD panel connector (H)
h.
Touch panel connector (I)
i.
A
C
Service and Maintenance
B
E
D
F
Figure 5-17. Components Overview
I
H
G
5-13
