1 Installation and set up

Visual-Tv is a video decoder to visualize CCTV cameras connected to Visual Tools recording units.
With this unit you could see the cameras of a VX range unit on a TV by using the remote control.
Connect the unit to the TV trough the HDMI output and to the recording video unit by a network cable or
WIFI.
For the installation of a Visual-Tv unit check the package contents and follow the steps.
Package contents
Open the packaging and check that includes the following items:

Model applied

HDMI cable

Network cable

Remote control and batteries

Power supply
Installation
For the unit installation connect the unit to the power supply, the HDMI video cable and the network
cable when the VX unit connection is made through a LAN.
Power supply
Start
The start-up configuration is made from the TV screen, selecting the HDMI connection
corresponding to the Visual-Tv.
User manual - 2
HDMI video
connection

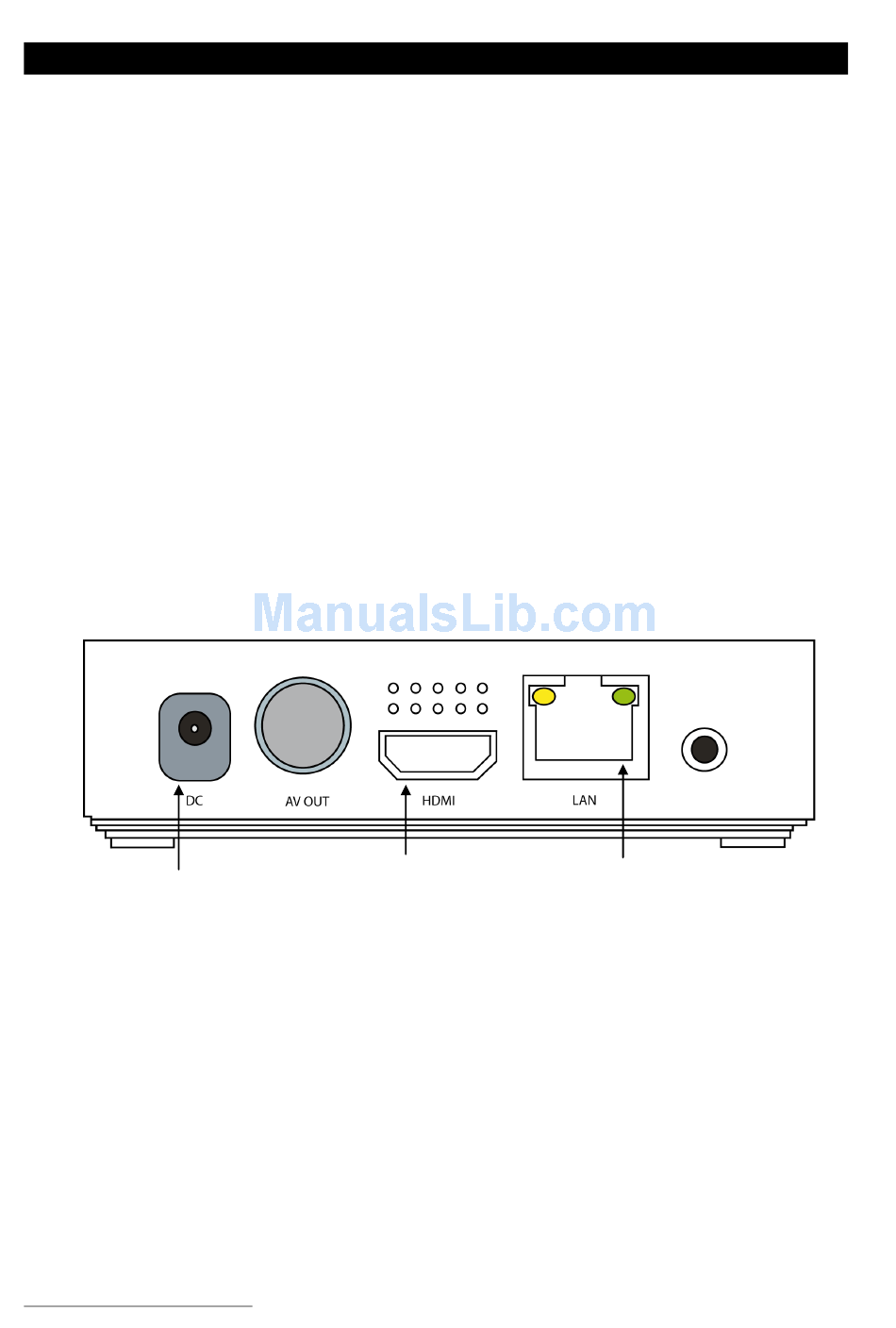

Fig. 1- Visual-Tv rear view
Network
connection
