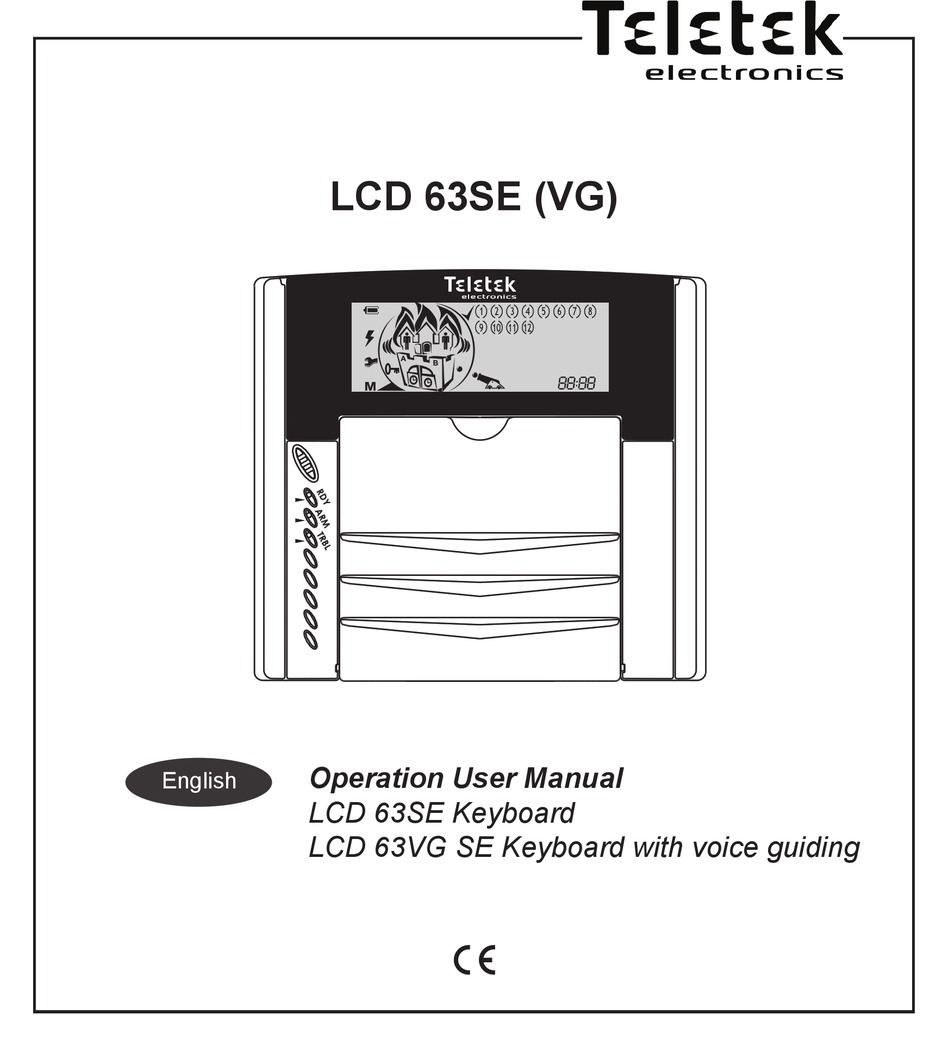

- Page 1 LCD 63SE (VG) Operation User Manual English LCD 63SE Keyboard LCD 63VG SE Keyboard with voice guiding...
- Page 2 Frontal view Mounting LCD 63SE (VG) LCD 63SE (VG) , - Back cover opening - Mounting holes; - Back tamper* - Wire openings; * To ensure an anti-vandalism protection it is - LCD display; - Speaker opening necessary to fix with a screw the back tamper ...
-
Page 3: Table Of Contents
Changing own user code . . . . . . . . . . . . 14 Memory LOG Review from User . . . . . . 15 LCD 63SE (VG) DESCrIpTIon Chime Enable/Disable from User . . . . . . 15 LED Indication . -
Page 4: General Information
. Warnings Before using the LCD 63SE / LCD 63VG SE Keypad, please ensure that you have read and understood the following instructions . Always ensure that the LCD 63SE / LCD 63VG SE Keypad is operated correctly . -
Page 5: Led Indication
Description The LCD 63SE and LCD 63VG SE keyboards provide complete control - programming and status information of the CA62 control panel . A LCD display and LED indication visualize alarm and status information . A sound buzzer informs the user about correct and incorrect key entries as well as activated alerts . -
Page 6: Display
ARMING mode - “Full ARM” (see page 9), “Stay ARM” (see page 10) and “Instant ARM” (see page 11) . The LCD 63SE (VG) keyboards are equipped with blue backlight of the but- tons and LCD display . The backlight is activated easily with pressing a random button, opening of “Entry-Exit”... - Page 7 Animation - FIRE alarm event in the system - the flames are blinking over the flames over house . the house The icon (A or B) of the partition in fire alarm is blinking. LCD 63SE (VG) Keypad User Manual...
-
Page 8: Buttons
ARMING of Partition B - this functionality of the button is programmed from the installer . Used to enter different digital data, for example personal user or manager access codes, settings, menu addresses, etc . LCD 63SE (VG) Keypad User Manual... -
Page 9: Lcd 63Se (Vg) Operation
At the end of the “Full ARM” procedure, regardless of the used arming variant, the icons of “Partition A”, “door” and “clock” are ON . * To the user code are assigned rights to operate with Partition A, otherwise the system will reject the operation. LCD 63SE (VG) Keypad User Manual... -
Page 10: Stay Arm" Mode
ON . The icon “man” is ON in the Partition A . The number(s) of the bypassed zone(s) are missing, only the brackets around them are visible . * To the user code are assigned rights to operate with Partition A, otherwise the system will reject the operation. LCD 63SE (VG) Keypad User Manual... -
Page 11: Instant Arm" Mode
. The user must have a valid code for Partition B! When the system is used to protect two independent sites, it is possible also to arm Partition A in one ARMING Mode and Partition B in another ARMING Mode . LCD 63SE (VG) Keypad User Manual... -
Page 12: Arming Both Partitions A And B
Partition A, otherwise the system will reject the operation! code Disarming of partition B Note: To the user code are assigned rights to operate with entry Partition B, otherwise the system will reject the operation! time code LCD 63SE (VG) Keypad User Manual... -
Page 13: Voice Messages In Disarming
The ambush code is produced from a personal code by increasing the last number by one . If the last number is 9, it is replaced by 0 in the ambush code . Example: Personal code: 4615 → Ambush code: 4616 Personal code: 4619 → Ambush code: 4610 LCD 63SE (VG) Keypad User Manual... -
Page 14: Technical Troubles Review
Changing own User Code The user is required to enter his current personal code before changing it . Sequence of operations for changing user code: new code new code code 4 or 6 digits repeat LCD 63SE (VG) Keypad User Manual... -
Page 15: Memory Log Review From User
. The “(-)” icon is removed . Pressing confirms the selection. Bypassing key sequence (zone 2 in the example): zone 2 is bypassed code confirm zone 2 is not bypassed LCD 63SE (VG) Keypad User Manual... -
Page 16: Changing User Rights For Remote Access
. The selected program- Remote Programming* ming is confirmed by pressing the button . Remote LOG Review* Remote Bypass * Default settings. LCD 63SE (VG) Keypad User Manual... -
Page 17: Sending Of "Comm . Test" Message
UDL communication . The UDL communication will be restored at 00:00h system time . To enter a permissible number of codes, the manager is required to enter his personal code first: code 2 beeps digit 00-99 LCD 63SE (VG) Keypad User Manual... -
Page 18: Changing User Codes
- Changing the Manager code No1 Manager and 3 sub-managers . Changing - Changing the Manager code No2 the different Manager codes can be done at dif- - Changing the Manager code No3 ferent addresses in the system . LCD 63SE (VG) Keypad User Manual... -
Page 19: Changing Manager Rights
See also the example on page 15 . Chime Enable / Disable from Manager To enter enable/ disable chime mode, the manager is required to enter his code . 2 beeps code LCD 63SE (VG) Keypad User Manual... -
Page 20: Zone Bypassing From Manager
To use proximity cards the system has to be equipped with a proximity card reader . code User no 01 - 20 or 2 beeps Manager Address 2x Deleting a Proximity card code User no 01 - 20 or 2 beeps Manager Address 2x LCD 63SE (VG) Keypad User Manual... -
Page 21: System Information
..........................LCD 63SE (VG) Keypad User Manual... -
Page 22: Appendix: Table Of The Events
User number remote arming by user User number Arming by key-switch type zone Zone number Quick arming type (one button arming) programming menu entry Programming menu exit Ambush code entry User number phone line error LCD 63SE (VG) Keypad User Manual... - Page 23 AUX attribute “GSM Link Trouble” Zone number restored zone with AUX attribute “Gas Detector” Zone number restored zone with AUX attribute “refrigeration” Zone number restored zone with AUX attribute “Loss of Heat” Zone number LCD 63SE (VG) Keypad User Manual...
- Page 24 www.teletek-electronics.com Address: 14A Srebarna Str., 1407 Sofia, Bulgaria tel.: (+359 2) 9694 800, fax: (+359 2) 962 52 13 e-mail: info@teletek-electronics.bg...
