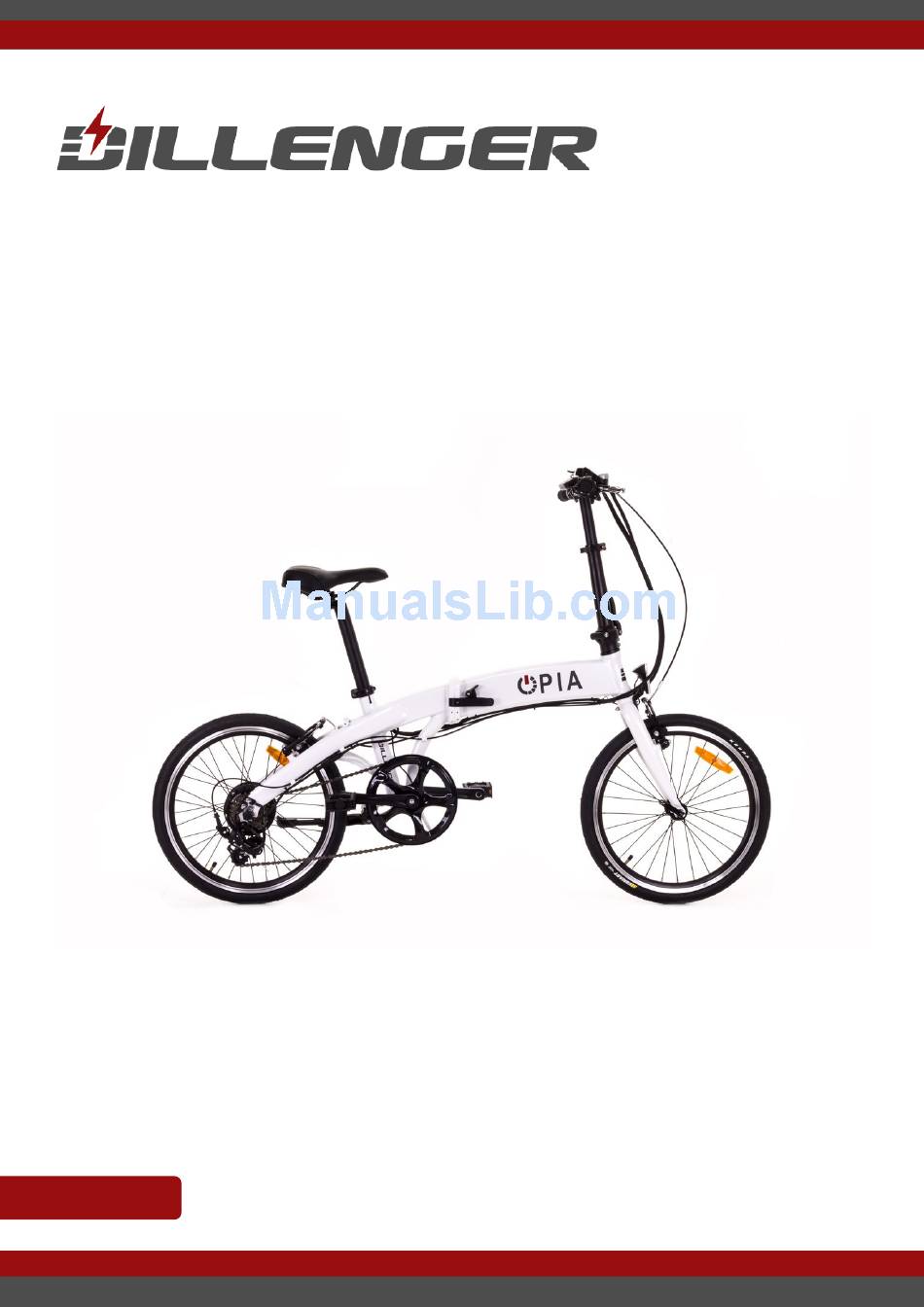

USER MANUAL

OPIA
OPIA
USER MANUAL
This manual is a guide on how to complete assembly, operate, maintain
and troubleshoot your electric bike.
ENGLISH
LAST UPDATED: 2/12/2016
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dillenger OPIA

  • Page 1: User Manual

    USER MANUAL OPIA OPIA USER MANUAL This manual is a guide on how to complete assembly, operate, maintain and troubleshoot your electric bike. ENGLISH LAST UPDATED: 2/12/2016...
  • Page 2: Thank You

    OPIA THANK YOU! Dillenger would like to thank you for support us with your purchase. We hope that you will continue to support us into the future, to help us bring the best and most affordable products to the market, without sacrificing quality.
  • Page 3: Table Of Contents

    USER MANUAL OPIA TABLE OF CONTENTS EBike Components and Terminology ............4 Assembly ....................6 Unboxing ..................6 Inventory ..................7 Front Wheel ..................8 Front Brakes ................... 9 Handlebar Assembly ..............10 Pedals ..................12 Seat ..................... 12 Additional checks ................. 13 Operation ....................
  • Page 4: Ebike Components And Terminology

    USER MANUAL OPIA EBIKE COMPONENTS AND TERMINOLOGY This section will help you understand the operation of an electric bicycle and the common terms and components involved. If you are familiar with what an electric bike is and how it operates, then feel free to skip over this section.
  • Page 5 USER MANUAL OPIA A) Electric Motor The muscle of the electric bike, this component is what applies the rotational force to the wheels and propels the bicycle forward. In most cases these motors are a hub type motor meaning that the motor is built onto the wheel or axle. Some motors will be located near the bicycle pedals and are called mid-drive or crank drive motors.
  • Page 6: Assembly

    USER MANUAL OPIA ASSEMBLY This section will help complete the initial installation of the electric bike. This is generally only required if you purchased the bicycle online away from our retail stores. Though the information in this section can be helpful for new users.
  • Page 7: Inventory

    USER MANUAL OPIA ASSEMBLY—INVENTORY You should now have all of the following items in front of you, ready for installation. LAST UPDATED: 2/12/2016...
  • Page 8: Front Wheel

    USER MANUAL OPIA ASSEMBLY—FRONT WHEEL Installation of the front wheel is made simple with the quick release axle. The quick release axle is zip tied to the spokes of your front where. Remove the zip ties and unscrew the nut off the axle as shown in the top left picture.
  • Page 9: Front Brakes

    USER MANUAL OPIA ASSEMBLY—FRONT BRAKES To install the front wheel it is likely that the front brakes will not be attached. This section will give you a basic step by step of how to reattach the brakes. Locate the front brakes. One side of the brakes will have a clip insert to hold the cable line.
  • Page 10: Handlebar Assembly

    USER MANUAL OPIA ASSEMBLY—HANDLEBARS Installation of the handlebars is a simple process. Just follow the following steps. Locate the handlebar folding joint, this can be seen in the top left picture. Rotate this upwards to close the folding joint. Please note also that the allen bolt shown in the top left picture will adjust the steering alignment tension and may require a small amount of adjustment after the handlebars have been installed.
  • Page 11 USER MANUAL OPIA ASSEMBLY—HANDLEBARS Installation of the handlebars continued... Locate the handlebar clamp, this can be seen in the top left picture. Insert the handlebar stem into the handlebar base. One side of the handlebar is grooved so that you cannot insert it the wrong. Though check that the cables are not twisted before insertion.
  • Page 12: Pedals

    USER MANUAL OPIA ASSEMBLY—PEDAL All bicycles (electric bikes included) have left and right side pedals. Make sure you identify each one. This image shows how to identify each pedal. You can see the ‘R’ written on this pedal, denoting this is the right side pedal, to be used on the right side of the bike (if you were sitting on the bike).
  • Page 13: Additional Checks

    USER MANUAL OPIA ASSEMBLY—ADDITIONAL CHECKS Although most assembly is completed, there are some additional checks that are recommended before starting your first ride. We recommend that you check over the bike with a set of tools. Though this is completed by dealers before dispatch and sale, though we still recommend this to be completed regularly to ensure the safe and smooth operation of your electric bike.
  • Page 14: Operation

    USER MANUAL OPIA OPERATION This section will detail some of the operation of the bicycle in particular the LCD/ handlebar display, battery and folding (if applicable). After reading through this section you should have a good idea of how to operate the majority of the functions of the electric bike.
  • Page 15: Battery Removal

    USER MANUAL OPIA OPERATION—BATTERY REMOVAL This section will detail how to remove the battery from the frame for storage, travel or charging. To remove the battery from the bicycles frame follow the follow steps: Firstly ensure that the bicycle has placed in a folded state (see section Operation—Folding).
  • Page 16: Handlebar Display Operation

    USER MANUAL OPIA OPERATION—HANDLEBAR DISPLAY This section will help detail the basic operation of the handlebar display which controls pedal assistance levels and shows details of the running operation of the electric bike. For more detailed information on what is displayed please see the manual for the individual product.
  • Page 17: Folding

    USER MANUAL OPIA OPERATION—FOLDING This section will detail a step by step process of how to fold you bike up for storage or easier transport. We will start with how to fold your handlebars down. Locate the folding mechanism for the handlebars this can be seen in the top left picture.
  • Page 18 USER MANUAL OPIA OPERATION—FOLDING This section will help show how to fold down the pedals on the bike. Each bike may have a different mechanism. The following photos show how to fold the pedals down. Push the outside of the pedal towards the bike.
  • Page 19 USER MANUAL OPIA OPERATION—FOLDING This section will help complete the initial installation of the electric bike. This is generally only required if you purchased the bicycle online away from our retail stores. Though the information in this section can be helpful for new users.
  • Page 20: Battery Information

    USER MANUAL OPIA BATTERY INFORMATION This section will detail what a battery is and its features and how to maintain good battery health over the batteries lifetime. An electric bike battery contains multiple battery cells combined in series and in parallel to make up the Voltage (V) and capacity (Ah) respectively.
  • Page 21 USER MANUAL OPIA BATTERY INFORMATION—TIPS There are some things that you can do or avoid to increase the lifetime of your battery: Try not to discharge your battery down to 0%. The amount that you discharge your battery is correlated to the life cycle of the battery.
  • Page 22 USER MANUAL OPIA BATTERY INFORMATION—TIPS What about reducing the voltage that you charge the batteries? There are lots of studies and evidence about increasing the cycle life of the battery cells by reducing the maximum voltage that you charge the battery to. It is said that you can double the amount of cycle life by decreasing the charge voltage of each cell by 0.1V.
  • Page 23: Maintenance

    USER MANUAL OPIA MAINTENANCE How much maintenance is required? The most common question we get is how much maintenance is required? The basic answer is not much more than a normal bicycle. Maintaining proper care of your bicycle is very important. Ensuring that you complete the following on a...
  • Page 24: Troubleshooting Tips

    USER MANUAL OPIA TROUBLESHOOTING AND ADVICE This section will detail some common faults that occur with electric bikes and what to do in each case. Please check these before contacting support. Before commencing troubleshooting, disconnect all components. Try not to skip this process.
  • Page 25: Troubleshooting Table

    USER MANUAL OPIA TROUBLESHOOTING TABLE Issue Solution Display wont turn on Check all connections from the motor controller to the front handlebars starting with the plug coming from the display. Ensure that the battery is switched on. Display turns on but Check the motor plug from the controller.
  • Page 26: Contact Us

    If there is any information that you would like added to these manual’s, we always appreciate feedback from our customers. This manual is written by the staff at EBikery with permission from Dillenger. You can contact EBikery here: https://www.ebikery.com.au/ Thank you for taking the time to read this document.
