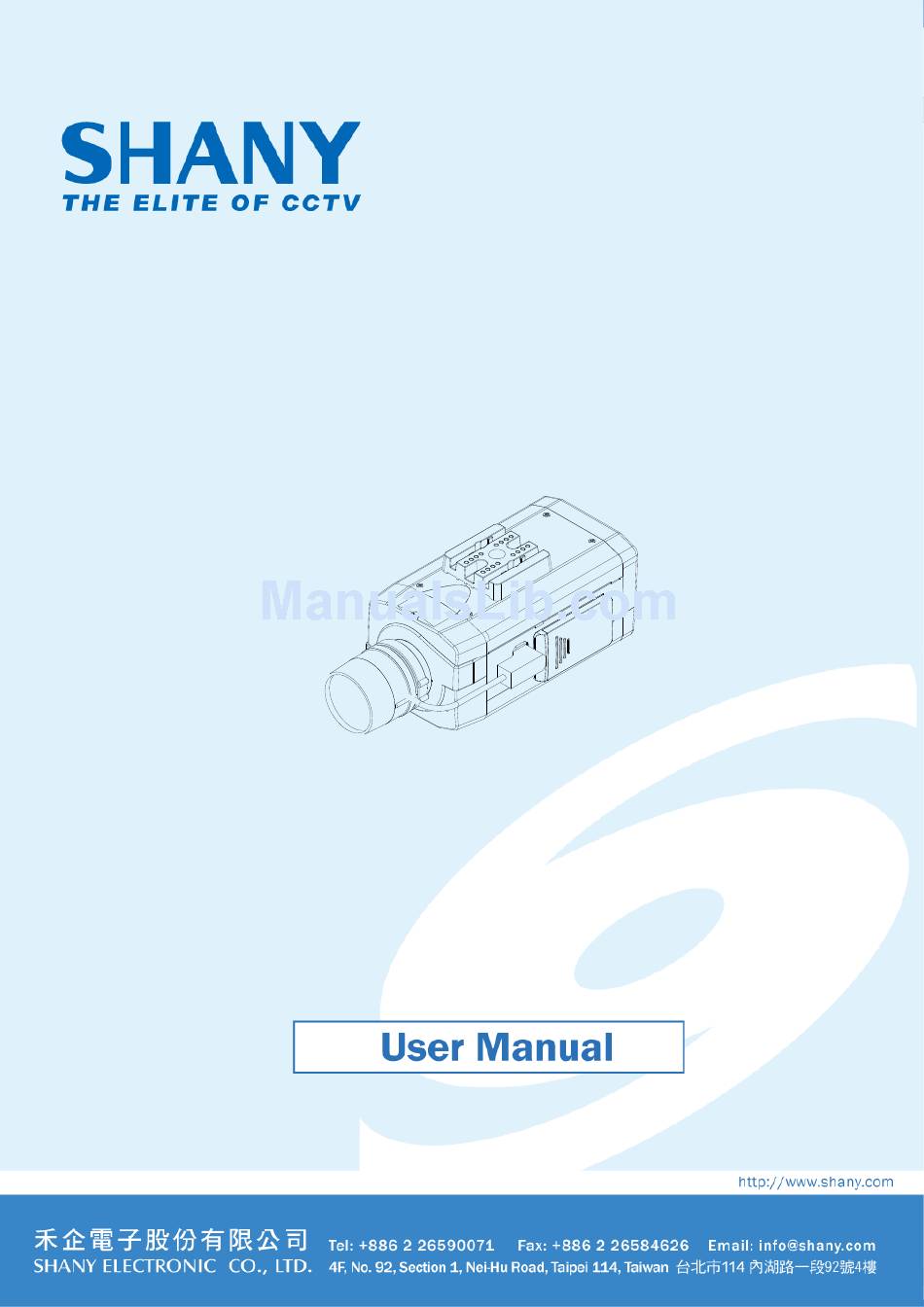

- Page 1 Full HD 1080P Box Camera CCTV SSC-WD2201M Thanks for purchasing our product. Before operating the unit, please read the instructions carefully and keep this manual for future reference.
-
Page 2: Safety Warning
Safety Warning 1. Read this manual carefully before installing the unit Please read this manual first for correct installation and operation. 2. Never install the camera on a ceiling that cannot hold its weight The product may fall down and cause damages. 3. - Page 3 10. Cleaning Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 11. Never disassemble the camera nor put impurities in it Disassembly or impurities may result in trouble or fire. 12.
-
Page 4: Table Of Contents
Table of Contents CAMERA ..................................1 ................................. 1 EATURE ..............................1 IST OF ONTENTS ................................1 IMENSIONS ................................ 2 PECIFICATION ............................... 3 AMERA ARTS CAMERA OSD ................................5 .................................. 7 ................................... 8 XPOSURE ..................................9 MAGE ............................10 HITE IXEL OMPENSATION ..................................11 FFECT... -
Page 5: Camera
1. CAMERA Feature Full HD 1920x1080P@50/60fps (3G-SDI) Color Camera 1/2.8" Sony 3.0 Megapixel Progressive Exmor™ CMOS Sensor Color:0.1Lux@F1.2, B/W:0.01Lux@F1.2, Sense-up:0.001Lux@F1.2 Simultaneous Video Output: SDI / HDMI / Composite BNC OSD Menu Control OSD Control / by RS485 Remote Control / by Coaxial Control ... -
Page 6: Specification
Specification Video System PAL / NTSC Selectable Image Sensor 1/2.8" Sony 3.0 Megapixel Progressive Exmor CMOS Sensor Resolution 1920(H)x1080(V) Frame Rates 1920x1080P@50/60fps ; Adjustable to 1920x1080P@25/30fps, 1920x1080i@50/60fps SDI Standards 3G-SDI (SMPTE 424M) Minimum Illumination Color:0.1Lux@F1.2, B/W:0.01Lux@F1.2, Sense-up:0.001Lux@F1.2 Digital Wide Dynamic Range 512x Normal Camera (54dB) Digital Video Output BNC connector (SDI) x1 / HDMI x1... -
Page 7: Camera Parts
Camera Parts 1. Overview Lens Mount This mount is used to install a CS-mount lens. CS-adaptor ring is required when using a C mount lens. Camera Mounting Screw Holes Screw holes for mounting the camera. Mount Adaptor The adaptor can be attached onto the top or the bottom of the unit. Auto Iris Lens Connector (4-pin type) The lens connector supplies the auto-iris lens (not supplied) with DC control signal. -
Page 8: Back Panel
Back Panel DI / DO / RS-485 Audio In Audio Out Video Out (BNC) HDMI LED SDI Out Power LED HDMI Out Power 12V DC ■ Power / HDMI LED: (1) Power LED(Green): On—Power Ready Off—No Power (2) HDMI LED(Green): On—Successfully Connected Off—Connection Not Ready ■... -
Page 9: Camera Osd
2. Camera OSD To operate the camera OSD setting, use the control key pad to control it. For some models, you might need to open the control panel case to access the control key panel. Press the Enter button which in the center of the control panel to bring up the "MAIN MENU" on the TV/Monitor screen as below. - Page 10 ■ Privacy Mask PRI VACY M ASK Default Value ALL ON/OFF NOT USE AREA SEL MODE BOTTOM LEFT RIGHT COLOR MAGENTA TRANSP x0.5 MOSAIC MOSAIC SIZE <┘ RETURN ■ Fog Reduction FOG REDU CT I ON Default Value LEVEL RETURN <┘...
-
Page 11: Main Menu
Main Menu In the "MAIN MENU" of camera OSD, there are several sub-menus and items can be select to modify the settings. ■ LENS: To select the lens is on manual or on DC. ■ EXPOSURE: This is a sub-menu for exposure setting. Please check the details in its section. ■... -
Page 12: Exposure
Exposure In the "EXPOSURE" of camera OSD, there are some items can be select to modify the settings. The main function of this page is about the optical settings. ■ MODE: To switch the exposure mode between manual mode and automatic mode. ■... -
Page 13: Image
Image In the "IMAGE" of camera OSD, there are some items can be select to modify the settings. The main function of this page is about the image settings. ■ SHARPNESS: To modify the value of sharpness. ■ CONTRAST: To modify the value of contrast. ■... -
Page 14: White Pixel Compensation
White Pixel Compensation In the "WHITE PIXEL COMPENSATION" of camera OSD, there are some items can be select to modify the settings. The main function of this page is about the white pixel compensation. ■ START: To enable the "white pixel compensation" effect. Select to start, when completed, the system will display this page. -
Page 15: Effect
Effect In the "EFFECT" of camera OSD, there are some items can be select to modify the settings. The main function of this page is about the camera effects. ■ PRIVACY MASK: To enable the "privacy mask" effect or not. Enable this will go its sub-menu for privacy mask setting. -
Page 16: Privacy Mask
Privacy Mask In the "PRIVACY MASK" of camera OSD, there are some items can be select to modify the settings. The main function of this page is about the privacy mask size and position. ■ ALL ON/OFF: To enable or disable all of the privacy mask. You can choose "ALL ON" or "ALL OFF" in this selection. -
Page 17: Fog Reduction
Fog Reduction In the "FOG REDUCTION" of camera OSD, there are some items can be select to modify the settings. The main function of this page is about the fog reduction effects. ■ LEVEL: To modify the level of fog reduction. ■... -
Page 18: System
System In the "SYSTEM" of camera OSD, there are several sub-menus and items can be select to modify the settings. The main function of this page is about the video format information and OSD firmware version. ■ ANALOG OUT: This is a sub-menu for analog output setting. Please check the details in its section. ■... -
Page 19: Analog Out
Analog Out In the "ANALOG OUT" of camera OSD, there are some items can be select to modify the settings. The main function of this page is to decide what the analog video output format is. ■ FROM: To change the analog video output format from the value now. ■... -
Page 20: Digital Out
2.10 Digital Out In the "DIGITAL OUT" of camera OSD, there are some items can be select to modify the settings. The main function of this page is to decide what the digital video output format is. ■ FROM: To change the digital video output format from the value now. ■... -
Page 21: Communication
2.11 Communication In the "COMMUNICATION" of camera OSD, there are some items can be select to modify the settings. The main function of this page is to modify the communication settings. ■ CAMERA ID: To change the camera ID. ■ BAUD RATE: To change the baud rate. -
Page 22: Default
2.12 Default In the "DEFAULT" of camera OSD, there are some items can be select to modify the settings. The main function of this page is to restore OSD settings to factory default values. ■ NO: Not to restore all OSD settings to their factory default values. ■...
