Summary of Contents for Ready Made RC RMRC Mako
- Page 1 Ready Made RC, LLC Assembly Instructions for: Last Revised 3/17/15 RMRC Mako Page | 1...
- Page 2 Thank you for purchasing the RMRC Mako! It is important to read the manual in its entirety before your maiden flight. This model is intended to be a short to medium range FPV aircraft. The Mako is easy to operate with excellent flight characteristics, but we do not recommend a flying wing as a beginner airframe for FPV unless they have assistance from an experienced pilot.
- Page 3 Package Contents: (PNP version Shown) Assembled Fuselage with Motor & ESC Hardware Package a. Upper and Lower Wing Bracket Joiners with Screws b. Optional Wooden Camera Plate c. Propeller, Adapter, and Rings Main Wings with Installed Servos ...
- Page 4 Assembly 1. Locate Wing Spar and feed it half way through the fuselage. 2. Locate Right and Left wings and slide each side over the spar until they reach the center. Aileron servos should be on top. Page | 4...
- Page 5 3. Locate Plastic wing Anchors and Screws. Each anchor has corresponding letters and a forward pointing arrow in the plastic that note where each one belongs. a. Longer screws go in the forward brackets. b. All screws insert from the bottom side. If you have any that insert from the top, please double check.
- Page 6 4. Locate Servo Leads and pass them through to the fuselage. a. You will see a small opening inside the fuselage to pull the lead through. Page | 6...
- Page 7 5. Locate landing skids and dry fit before gluing into place. a. If you use the nose piece to help guide the skids, be careful to not allow glue onto it. We use contact cement. b. Secure the skids with masking tape while curing. Page | 7...
- Page 8 6. Locate rudders, screws and secure into place. It is not necessary to glue the rudders into place. Page | 8...
- Page 9 7. Locate optional dome nose, clear or tinted dome, and 4 small screws. a. Secure dome onto nose with screws. 8. Locate prop adapter, propeller, and adapter rings. Install onto motor shaft and tighten completely. a. It is always best to balance the propeller before flying. b.
- Page 10 9. Optional – If you are not planning on using the equipment cut-outs, you may want to glue or tape them in place before flying. 10. Setting up the RMRC Mako for maiden flight: a. After you have successfully installed and bound your radio and receiver, verify that all channels are operating on the correct controller input and in the correct direction for flight.

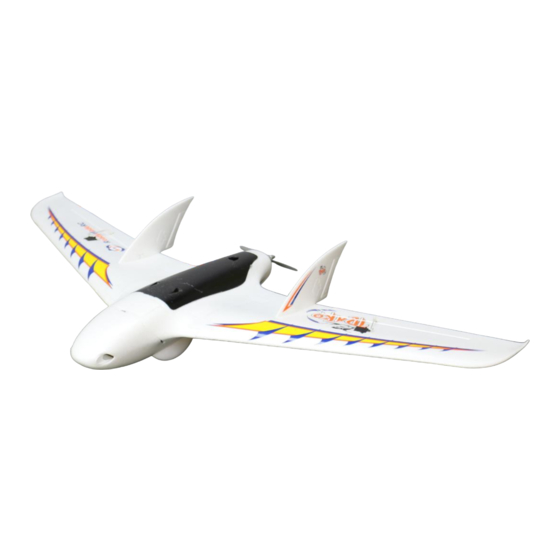

- Page 11 Center of Gravity Mark: Finished RMRC Mako: Enjoy your RMRC Mako! Please fly responsibly. Page | 11...
