Apache Owner's Manual

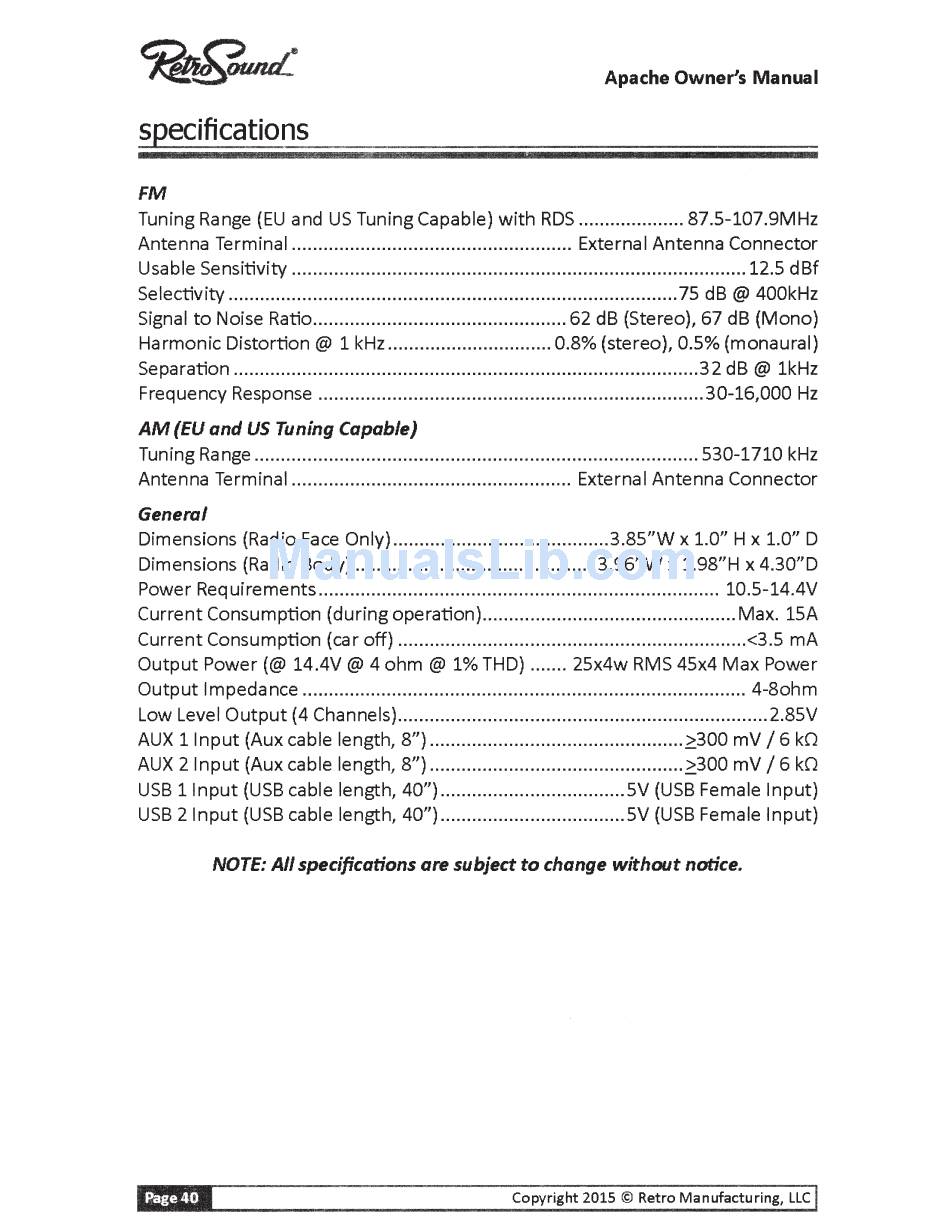

specifications
FM
Tuning Range {EU and US Tuning Capable) with RDS .................... 87.5-107.9MHz
Antenna Terminal ..................................................... External Antenna Connector
Usable Sensitivity ...................................................................................... 12.5 dBf
Selectivity ..................................................................................... 75 dB@ 400kHz
Signal to Noise Ratio ................................................ 62 dB (Stereo), 67 dB {Mono)
Harmonic Distortion@ 1kHz ............................... 0.8% {stereo), 0.5% (monaural)
Separation ........................................................................................ 32 dB@ 1kHz
Frequency Response ......................................................................... 30-16,000 Hz
AM (EU and US Tuning Capable)
Tuning Range .................................................................................... 530-1710 kHz
Antenna Terminal ..................................................... External Antenna Connector
General
Dimensions {Radio Face Only) ......................................... 3.85"W x 1.0" H x 1.0" D
Dimensions (Radio Body) ............................................. 3.96"W x 1.98"H x 4.30"0
Power Requirements ............................................................................ 10.5-14.4V
Current Consumption {during operation) ................................................ Max. 15A
Current Consumption (car off) .................................................................. <3.5 mA
Output Power (@ 14.4V @ 4 ohm @ 1% THO) ....... 25x4w RMS 45x4 Max Power
Output Impedance .................................................................................... 4-8ohm
Low Level Output (4 Channels) ...................................................................... 2.85V
AUX llnput (Aux cable length, 8") ................................................ 2:300 mV
I
6 kO
AUX 21nput (Aux cable length, 8"} ................................................
~300
mV
I
6 kO
USB llnput (USB cable length, 40") ................................... 5V (USB Female Input}
USB 2 Input {USB cable length, 40") ................................... 5V (USB Female Input}
NOTE: All specifications are subject to change without notice.
Copyright 2015 © Retro Manufacturing, LLC
