Apache Owner's Manual

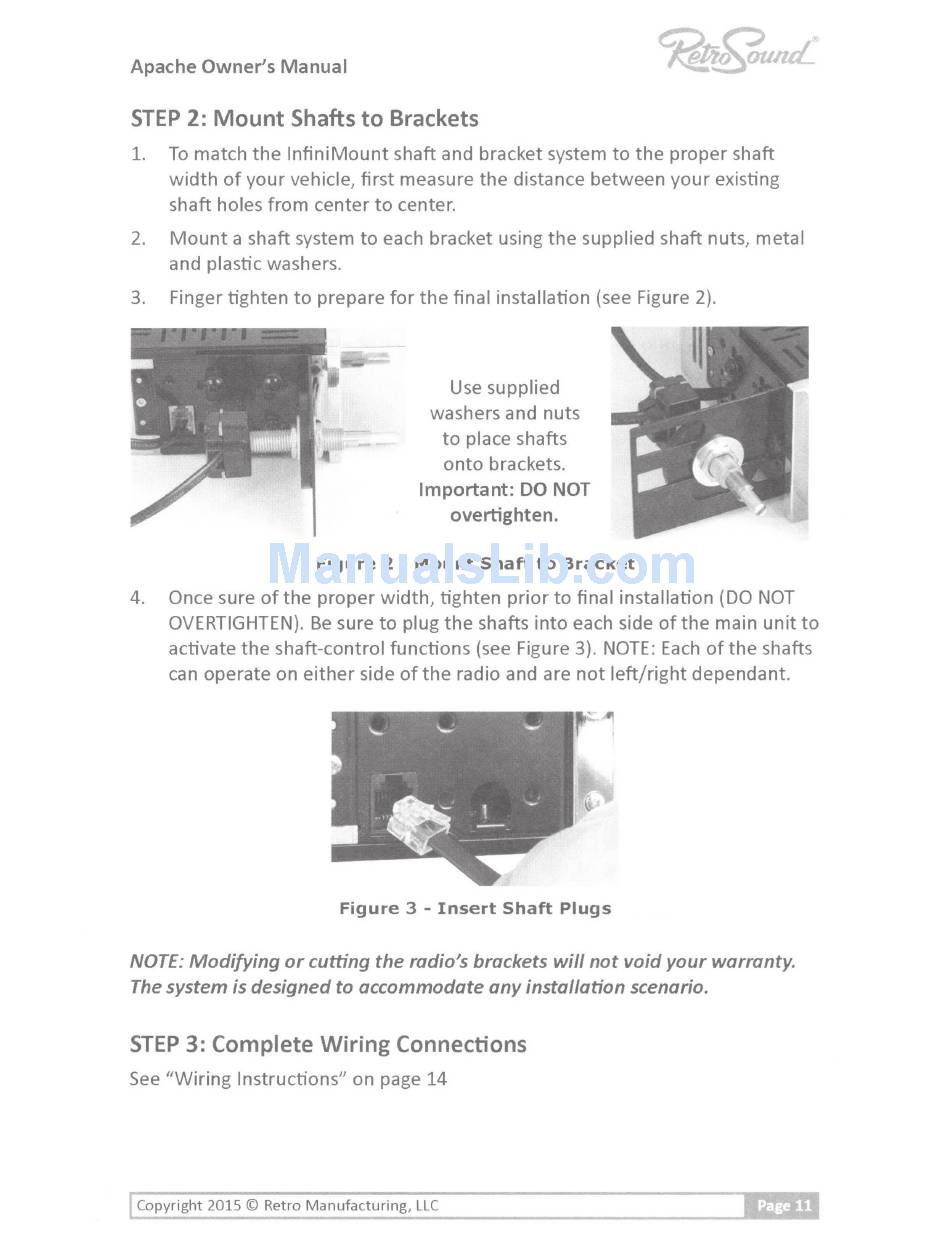

STEP 2: Mount Shafts to Brackets
1.
To match the lnfiniMount shaft and bracket system to the proper shaft
width of your vehicle, first measure the distance between your existing
shaft holes from center to center.
2.
Mount a shaft system to each bracket using the supplied shaft nuts, metal
and plastic washers.
3.
Finger tighten to prepare for the final installation (see Figure 2).
Use supplied
washers and nuts
to place shafts
onto brackets.
Important: DO NOT
overtighten.
Figure 2 - Mount Shaft to Bracket
4.
Once sure of the proper width, tighten prior to final installation (DO NOT
OVERTIGHTEN). Be sure to plug the shafts into each side of the main unit to
activate the shaft-control functions (see Figure 3). NOTE: Each of the shafts
can operate on either side of the radio and are not left/right dependant.
Figure 3 - Insert Shaft Plugs
NOTE: Modifying or cutting the radio's brackets will not void your warranty.
The system is designed to accommodate any installation scenario.
STEP 3: Complete Wiring Connections
See "Wiring Instructions" on page 14
Copyright 2015
©
Retro Manufacturing, LLC
