KIT Seating System
User Instructions

Advertisement

Table of Contents
loading

Related Manuals for Leckey LS240-04

Summary of Contents for Leckey LS240-04

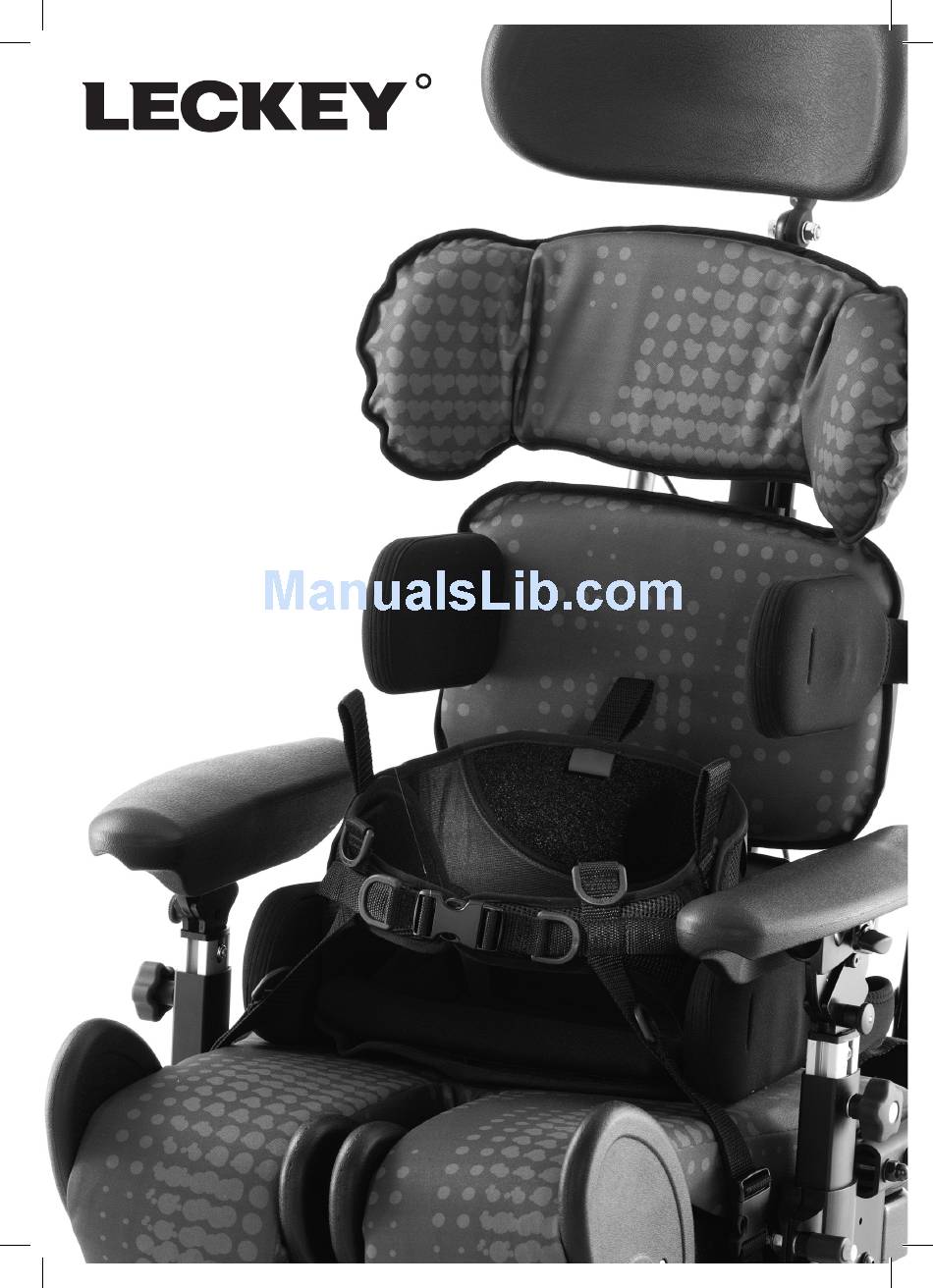

  • Page 1 KIT Seating System User Instructions...

  • Page 2: Table Of Contents

    07 How to unpack and assemble the seating system and fit the cushions 08 Clinical Setup for Postural Management 09 Cleaning and Care Information 10 Daily Product Inspection 11 Annual Product Inspection 12 Reissuing Leckey products 13 Product Servicing 14 Technical Information...

  • Page 3: Intended Use

    The KIT Seating System is a seat that Your Leckey product is classified as has been designed for use by adults a Class 1 Medical Device and as such users are moved over uneven surfaces...

  • Page 4: How To Unpack And Assemble The Seating System And Fit The Cushions

    Unwin Restraint System and a on the seat unit is fully engaged with the chassis and the locking pin is engaged. Leckey head support, which should be If the handle is not engaged properly, the suitably positioned at all times during seat unit may come loose and could cause transportation.
  • Page 5 Check parts Some of the accessories will need to be 7.1 Attaching the Seating assembled before you attach them to the Congratulations on purchasing your KIT System to the Hi-low Chassis Seating System. When opening the box, seat base you have purchased. If you are take care not to cut through the tape as fitting the seat to a mobility base, please you may damage some of the parts...
  • Page 6 7.2 Removable 7.3 Fixed Backrest 7.4 Seat Base Backrest spine spine Cushion The removable backrest spine will be detached If the fixed backrest spine option has been Fasten the two poppers (A) at the back of for shipping. Insert it into the side plates of the ordered, simply rotate the backrest into the the seatbase.
  • Page 7 7.7 Contoured sacral 7.8 Thoracic Support 7.5 Sacral support 7.6 Hip Laterals support Fit the sacral cushion over the hardware To attach the hip laterals to the standard To fit the contoured sacral support cushion, Fit the cushion over the hardware and fasten and fasten at the back with the poppers.
  • Page 8 7.9 Standard and 7.10 Angle 7.11 Shoulder Support Complex Thoracic Adjustable Thoracic Laterals Laterals The standard and complex (horizontal The angle adjustable laterals are attached to To fit the shoulder support cushion, loosen and vertical) laterals are attached in the the standard thoracic support.
  • Page 9 7.12 Pelvic Cradle 7.13 Chest Pad 7.14 Chest Harness Fasten the front buckle and side Velcro tabs Screw the buckles onto the thoracic laterals. To attach the chest harness to the shoulder of the Pelvic Cradle. Ensure the “Back” label Attach the chest pad to the buckles (A).
  • Page 10 7.15 Headrest 7.16 Femoral Gables 7.17 Foot Supports To attach the head support (Leckey or The KIT Seating System has been designed Femoral gables are attached to the seat Loosen the leg support nuts (A) on the Otto Bock) slide the stem into the receiving to interface with Whitmyer head supports base using bolts (A).
  • Page 11 7.18 Attaching the 7.19 Armrests 7.20 Tray Sandal Straps Sandal straps can be attached to the foot To attach the armrests, loosen the ratchet Before attaching the tray, ensure the supports. Feed the back straps through the handles (A) and insert the armrests with the armrests are at the same height and angle.
  • Page 12 The Leckey Mobility Base is built with an interface which fits the KIT seat. A thorough risk assessment should be carried out when attaching the KIT Seat to 45cm Discovery Interface attachment to any mobility base not supplied by Leckey.

  • Page 13: Clinical Setup For Postural Management

    The clinical set up of the product should be completed by a technically and clinically competent person who has been trained in the use of the product. Leckey recommend a written record is kept of all clinical set ups for this product.
  • Page 14 8.3 Pelvic Cradle 8.4 Gluteal ramp 8.5 Sacral Support When setting up the Pelvic Cradle for the If a gluteal ramp (A) is required, it can be The sacral support can be adjusted in a To adjust the angle of the sacral support, first time with the client in it, the Pelvic attached by Velcro to the front of the number of ways - height, depth and angle.
  • Page 15 8.6 Hip Laterals 8.7 Contoured Sacral Support The hip laterals can be width and angle The laterals can also be angled to The contoured sacral support can be The lateral supports can be angle adjusted adjusted to suit the user’s requirements. help support abduction, adduction or adjusted in a number of ways - height, depth to contour the pad and provide lateral pelvic...
  • Page 16 8.8 Thoracic Support 8.9 Standard and Complex Thoracic Laterals The thoracic support can be adjusted in To adjust the thoracic support laterally or in The standard and complex laterals, The complex laterals can also be angled to a number of ways: height, lateral position angle, loosen both the screws (B) on the ball horizontal and vertical options can be used allow the pad to contour to the user’s shape.
  • Page 17 8.10 Angle Adjustable 8.11 Shoulder Support Thoracic Laterals To adjust the angle of the laterals, loosen The shoulder support can be adjusted To adjust the angle of the whole shoulder To adjust the angle of the wings of the the screws (A) at the hinges. Contour the in a number of ways –...
  • Page 18 8.12 Headrest 8.13 Seat Base Depth 8.14 Seat base – Upper Leg Support Angle for Windsweep -ing, Abduction or Adduction To adjust the height of the headrest, loosen To change the profile of the Profiling To adjust the seat base depth, loosen the To adjust the upper leg support angle the screw (A) at the top of the backrest Contoured Headrest, remove the cover,...
  • Page 19 8.15 Femoral Gables 8.16 Foot support height 8.17 Calf Support 8.18 Foot support - size Large and small femoral gables may be To raise or lower the height of the foot To adjust the calf support angle, loosen To change the size of the foot supports used in any combination to suit the user’s support, loosen the screw (A) adjust to the the screw (A) at the top of the calf support,...
  • Page 20 8.19 Foot support - angle 8.20 Armrest 8.21 Tilt-in-Space To change the angle of the complex foot To adjust the armrest height, loosen the The tilt-in-space can be angled when the supports, loosen the three screws (A) on the knob (A), adjust to the required height and user is in the seat.

  • Page 21: Cleaning And Care Information

    8.22 Hi-low Chassis – 9 Cleaning & Care Height Adjustment Information You can carry out this adjustment with To adjust the height of the powered base, How to Maintain Metal and plastic components the user in the chair. If your chassis has use the buttons on the handset.

  • Page 22: Daily Product Inspection

    If in any doubt to the continued safe and tear. 1. Check all knobs, nuts, bolts and plastic use of your Leckey product or if any buckles are in place, replacing any missing parts should fail, please cease using the product and contact our customer 3.

  • Page 23: Reissuing Leckey Products

    Femoral Gable Pack If in any doubt to the continued safe 133-400* Size 1 contoured sacral (2 large and 2 small) use of your Leckey product or if any support cushion and cover 133-682 Large femoral gables – right 133-1620...
  • Page 24 KIT seat dimensions Leckey Hi Low base options Product sizing Size 1 Size 2 KIT Hi-low chassis inches inches inches Age range 12-18 yrs 16-adult Top of seat to floor Stature range 1400 55.1 1600 63.0 1650 65.0 1850 73.0...
  • Page 25 Lisburn, BT28 2SA Northern Ireland, United Kingdom T: 028 9260 0750 F: 028 9260 0799 E: info@vidaglobal.co.uk W: vidaglobal.co.uk 24 hour postural care for babies, kids & adults. Sleeping, Sitting, Standing, Walking, Moving, Bathing, Toileting. A member of the LS240-04...
