Part 3C: Configuring Finishlynx (Etherlynx 2000 Camera) - lynx System Developers RadioLynx Quick Start Manual

Quick Start Guide
RadioLynx Wireless Start System
P 3C: C
ART ONFIGURING
(EtherLynx 2000 Camera)
a. With an EtherLynx 2000 camera set up and
turned on, start FinishLynx. The Hardware
Control screen appears.

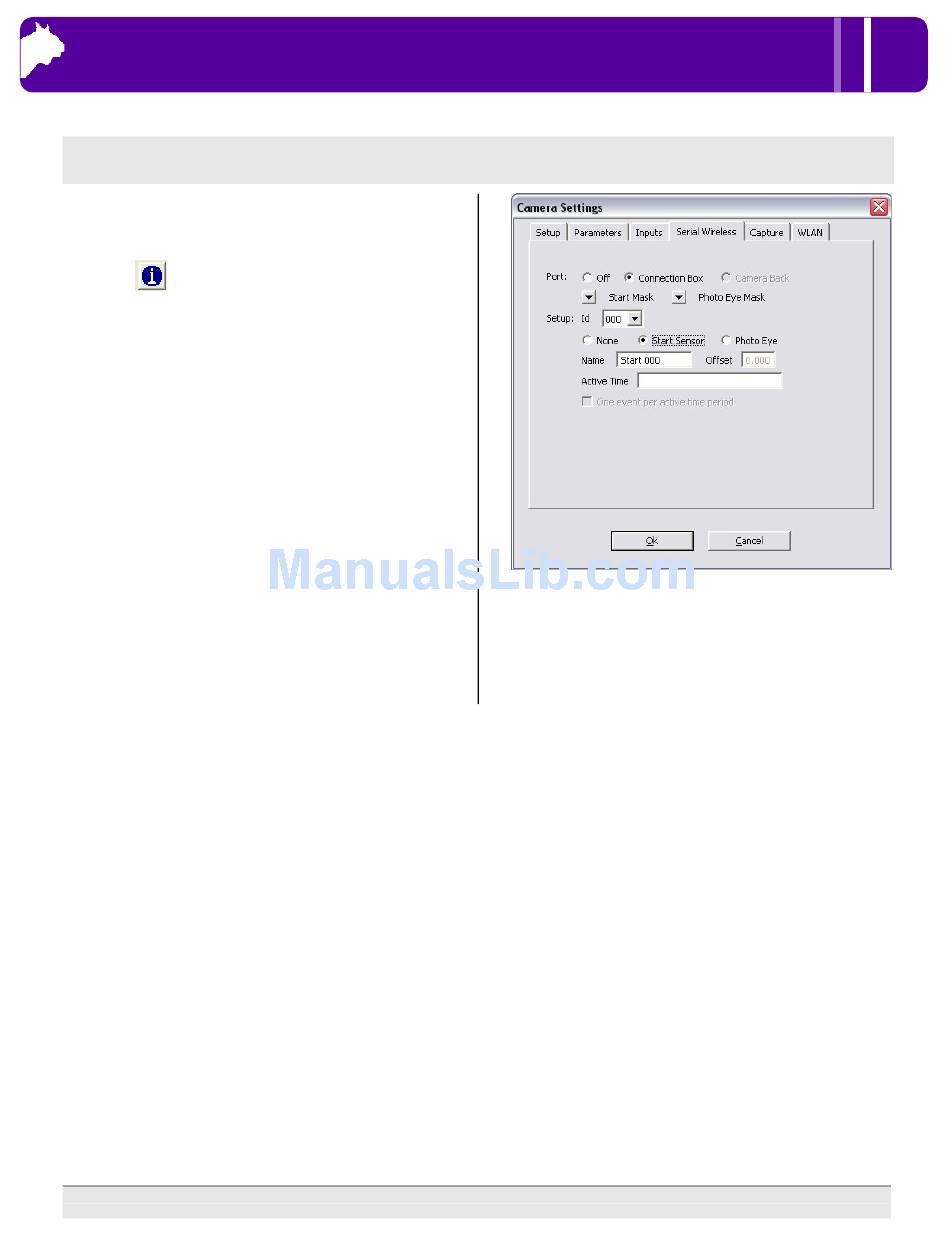

b. Click , the information icon. The Camera
Settings dialog box appears.
c. Click the Inputs tab and then select the Start
Sensor: None radio button.
d. Click the Serial Wireless tab.
e. Select the Port: Connection Box radio button.
f. From the Setup: Id dropdown list, click to select
000.
N :
The RadioLynx Transmitter defaults to
OTE
Channel 0 and Signal Type STA, which corresponds
to Id 000 in FinishLynx.
g. Select the Start Sensor radio button.
O :
Type a name in the text box provided. If
PTIONAL
you're using more than one RadioLynx Transmitter, it
is recommended that you name each one something
different.
e.g. "400 Meter Start," "200 Meter Start" etc.
RadioLynx Wireless Start
support@finishlynx.com
F L
INISH YNX
4 of 4
h. Click Ok.
i. Turn on the RadioLynx Transmitter and
confirm that a start signal is transmitted to
FinishLynx by listening for a beep.
