Denon AVR-2809CI Service Manual page 90

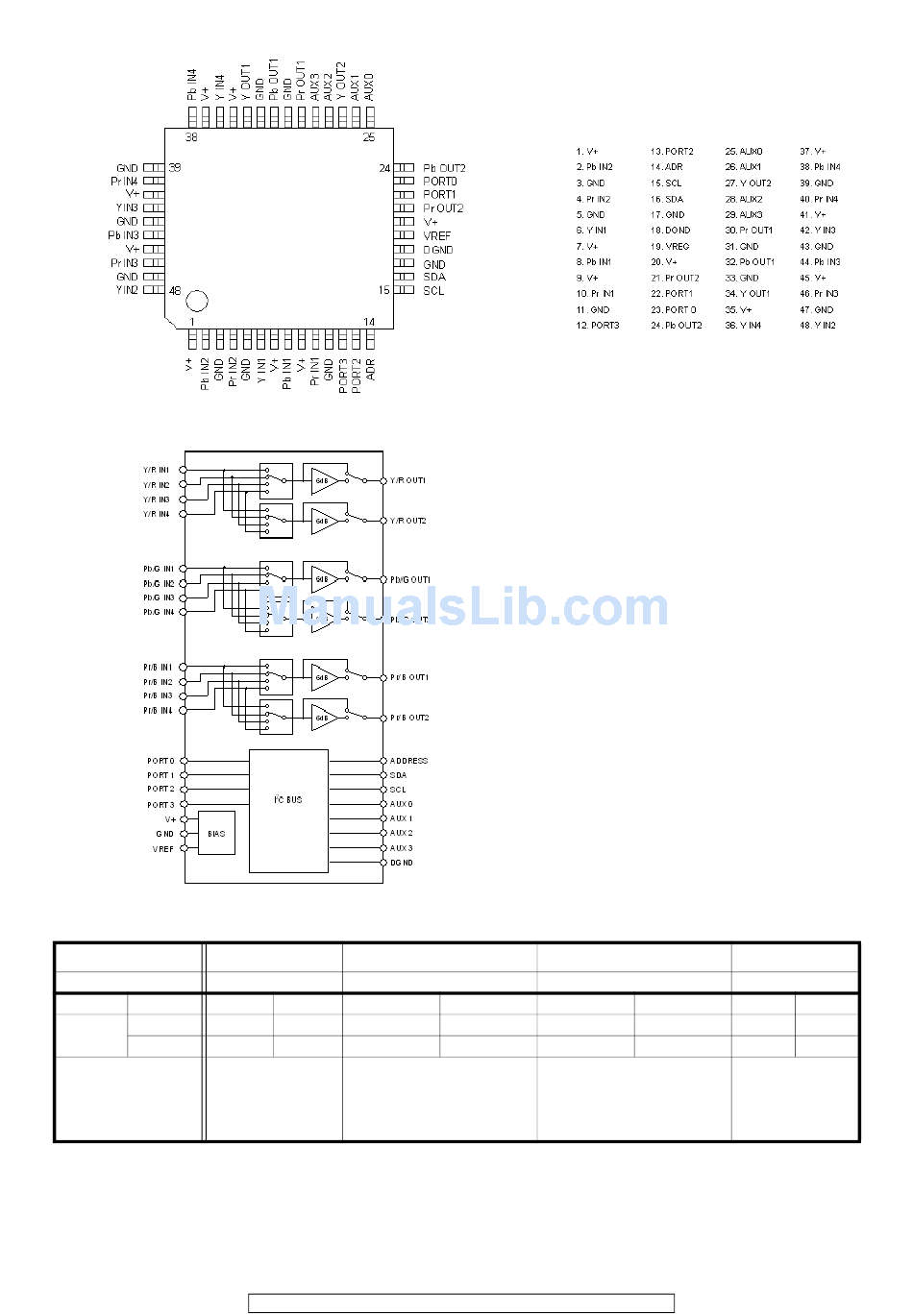

NJW1321FP1 (AV : IC501)
Control Pin Sub VSCL (27pin) VSDA (28pin)
Pin Name
Signal Name
Output
DATA2 L setup
H setup
Function Superimpose
Signal select
L : S
H : CVBS
AUX0
OSD V/Y
D7 D6 D5
0 0 0
1 1 1
MAIN ZONE
CVBS signal channel select
L : Through channel select
H : OSD channel select
AVR-2809CI / AVR-2809 / AVR-989 / AVC-2809
AUX1
Z1OSDV
D4 D3
0 0
1 1
MAIN ZONE
S signal channel select
L : Through channel select
H : OSD channel select
90
AUX2 AUX3
Z1OSDY
D2 D1
0 0
1 1
Not used
-
D0
0
1
