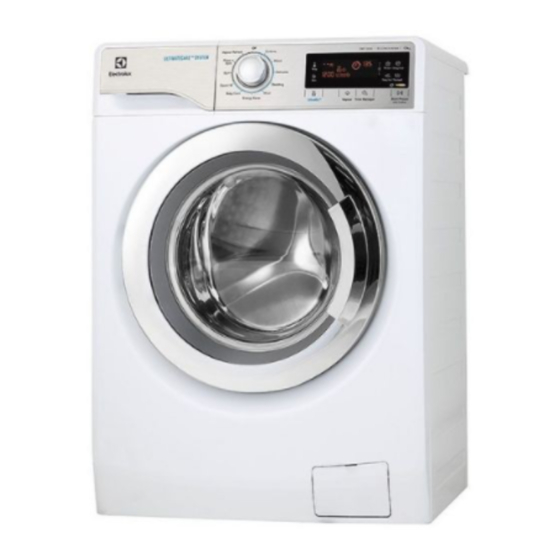

Electrolux EWF12033 Installation Manual

Hide thumbs Also See for EWF12033:

Download this manual

INSTALLATION

11.1 Unpacking

CAUTION!

All transit bolts and packing must be

removed before using the appliance.

You are advised to keep all transit

devices so that they can be refitted if

the machine ever has to be

transported again.

Use gloves. Cut and remove four cut

out straps as shown.

Remove the carton box. Remove the

polystyrene packaging materials.

Remove the plastic bag which cover

the machine.

Open the door. Remove the

polystyrene piece from the door seal

and all the items from the drum.

Put one of the polystyrene packaging

elements on the floor behind the

appliance. Carefully put down the

appliance with the rear side on it.

Make sure not to damage the hoses.

5. Remove the polystyrene base.

Pull up the appliance in vertical

position.

7. Remove the power supply cable and

the drain and inlet hoses from the

hose holders (A) on the rear of the

appliance.

ENGLISH

Page 1 ENGLISH INSTALLATION 11.1 Unpacking CAUTION! All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. Use gloves.
Page 2 11.2 Positioning It is important that your washing machine stands firm and leveled on the floor to ensure correct operation. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to avoid restricting the washing machine door.
Page 3: Water Drainage
ENGLISH The inlet hose must not be When the washing machine is lengthened. If it is too short and levelled, try to rock it from corner to you do not wish to move the tap, corner. If it does rock, adjust the you will have to purchase a new, legs again until it is levelled and longer hose specially designed for...
Page 4: Electrical Connection
11.5 Electrical Connection This machine is designed to operate on a 220-240 V, single-phase, 50 Hz supply. “An incorrect power supply may void your warranty.” For the correct functioning of the Check that your domestic electrical machine, the drain hose must installation can take the maximum load required (2.1 kW), also taking...
