Page 1

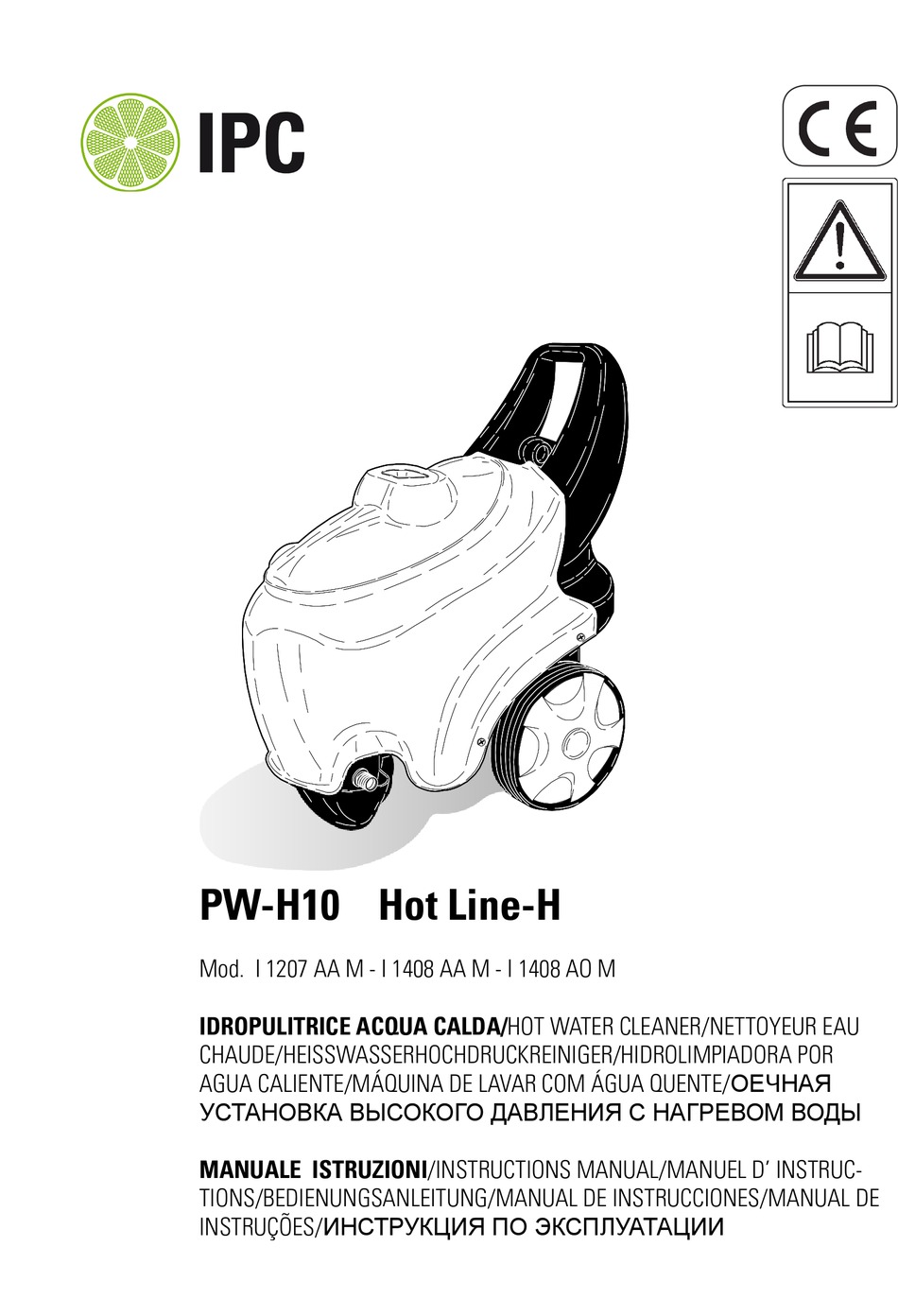

PW-H10 Hot Line-H Mod. I 1207 AA M - I 1408 AA M - I 1408 AO M IDROPULITRICE ACQUA CALDA/HOT WATER CLEANER/NETTOYEUR EAU CHAUDE/HEISSWASSERHOCHDRUCKREINIGER/HIDROLIMPIADORA POR AGUA CALIENTE/MÁQUINA DE LAVAR COM ÁGUA QUENTE/ MANUALE ISTRUZIONI/INSTRUCTIONS MANUAL/MANUEL D’ INSTRUC- TIONS/BEDIENUNGSANLEITUNG/MANUAL DE INSTRUCCIONES/MANUAL DE INSTRUÇÕES/...
I - INDICE Pag. Operazioni preliminari Preparazione Descrizione simboli Consigli per l’ uso dei detergenti Prefazione Manutenzione Avvertenze generali di installazione ed uso Accantonamento Destinazione d’ uso Rottamazione Inconvenienti e rimedi GB - CONTENTS Pag. Preparation Advise on using detergents Description of symbols Maintenance Introduction...
Page 3
English Congratulations! We wish to thank you for buying this cleaner. You have shown that you do not accept compromises: you want the best. We have prepared this manual to enable to fully appreciate the qualities and high performance that this cleaner can offer you. Please read it completely before using the machine.
English DESCRIPTION OF SYMBOLS ON THE CLEANER DO NOT DIRECT THE JET SWITCHING OF THE PUMP AGAINST PEOPLE, ANI- MOTOR. MALS, POWER SOCKETS OR THE MACHINE IT SELF. ATTENTION: RISK OF BUR- LIGHTING THE BURNER. AT T E N T I O N : R I S K O F FUEL (DIESEL).
English GENERAL SAFETY RULES FOR CLASSIFICATION OF RISKS: THE USE OF HIGH PRESSURE Danger Identifies an imminent risk which could lead to serious or fatal CLEANERS injury. Warning Warning Identifies a risk situation which could lead to serious injury. - The electric connection must be performed by qualified technicians who are able to Information Identifies a risk situation which could lead to minor injury or work in observance of the governing rules damage to things.
Page 6
English - It is necessary to check this essential safety person responsible for their safety. requisite. In case of doubt, ask for accurate Children must be supervised to ensure they control of the power system by qualified do not play with the high pressure washer. personnel.
Page 7
English sidered according to the place where the - The electric power cable must never be washing is performed (for example: food under mechanical tension and must be pro- plants, pharmaceutical plants, etc.) tected against accidental crushing. Pertinent rules and safety conditions must be followed.
English DATA PLATE: INTENDED USE The data plate bearing the main technical characteristics of your This appliance is intended exclusively for cleaning machines, cleaner is located on the trolley and is always visible. vehicles, buildings and general surfaces suitable for treatment with a high pressure jet of detergent solution between 25 and When buying your cleaner, ensure that it has an 250 bar (360 - 3600 PSI).
Page 9
English WAX-SOAP KIT Danger available) The cleaner must operate with clean water. Dirty or sandy water, corrosive chemicals and solvents can cause severe Select the desired tank by damage to the cleaner. turning the selector appropri- ately. Detergent can only be Danger delivered in the low-pressure Never suck up liquids containing solvents or acids in the pure...
Page 10
English Washing at high pressure USING with a concentrated jet of THE CLEANER water Turn the nozzle in an anti- clockwise direction. CONTROL PANEL Washing at high pressure A - On/off switch with a fan-shaped jet of water B - Detergent control tap (if Turn the nozzle in a clockwise available).
English provisions of the IEC 60364-1 standard) must be kept carefully ADVICE ON USING DETERGENTS by the user, together with the Instructions Manual. Warning Periodically, at least once a year, have the safety devices and This cleaner has been designed for use with the detergents the rated values checked at one of our technical service centres.
Page 12
English TABLE OF ROUTINE MAINTENANCE TO BE PER- CLEANING THE FUEL FILTER. FORMED BY THE USER. Remove and replace the in- line fuel filter (fig. 13). Description of operations: Change it from time to time. Check power cable - pipes - high pressure connectors. Each use Change and clean fuel filters.
English IMPORTANT: These intervals refer to normal working conditions. For heavy duty use decrease the interval for each job. For maintenance and/or repairs, use only original spare parts which offer the greatest characteristics of quality and reliability. Failure to use original spare parts absolves the manufacturer from all liability and transfers it to the person carrying out the operation.
English TROUBLE-SHOOTING Before carrying out any operations, disconnect the water cleaner from the mains electricity supply via the omni- polar switch or by unplugging the plug from the socket. FAULTS CAUSES REMEDIES When the switch is turned the cleaner Faulty electric connection. Check the mains voltage.
Page 15
IP Cleaning SpA Sede Legale/Amministrativa - Registered Office/Administration V.le Treviso, 63 30026 Summaga di Portogruaro (Venice) Italy Tel. +39 0421 205511 Fax +39 0421 204227 www.ipcleaning.com info@ipcleaning.com...
