Bak USA seal User Manual

Bak USA seal User Manual

Windows 10
Hide thumbs Also See for seal:

Advertisement

User Guide
For Windows 10
BAK USA Technologies Corp.
425 Michigan Ave.
Buffalo, New York 14203

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the seal and is the answer not in the manual?

Questions and answers

tofik
March 18, 2025

how to fix bak usa seal tab automaticaly repair problem not open

1 comments:
Mr. Anderson
March 18, 2025

If the Bak USA Seal tablet is not turning on, follow these steps:

1. Ensure the AC adapter is connected to the tablet and the power cord is plugged into a working electrical outlet.
2. Press and hold the power button for 6 seconds to force power OFF, then turn it back ON.
3. If the screen remains blank, the tablet may need servicing.

If the tablet turns on but the screen goes blank:
- Press the power button or tap the Bak USA logo on the screen to wake it from sleep mode.
- If the tablet enters sleep mode immediately after powering on, check if the battery is charged or move to a cooler environment if overheating is suspected.

If the issue persists after these steps, the device may require professional servicing.

This answer is automatically generated

Summary of Contents for Bak USA seal

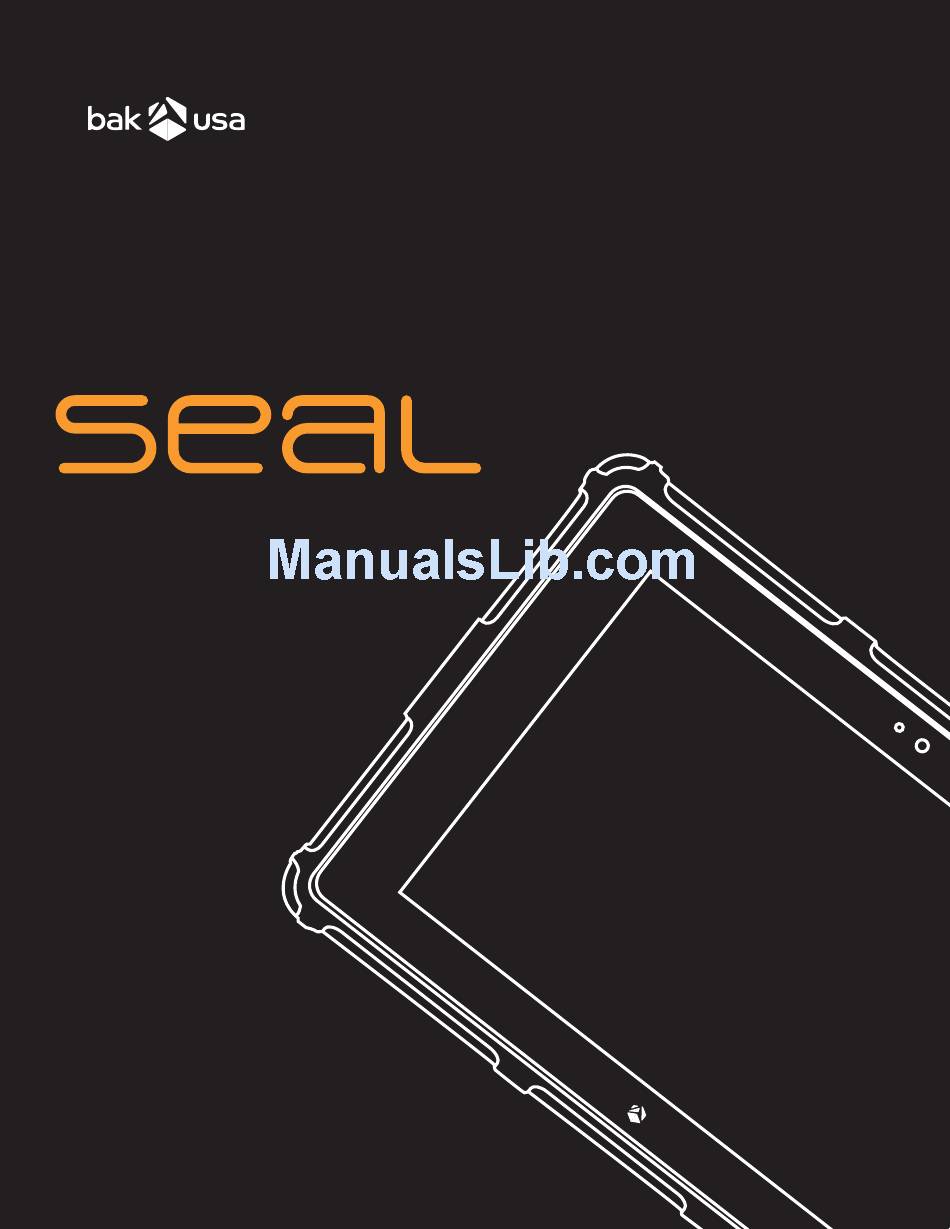

  • Page 1 User Guide For Windows 10 BAK USA Technologies Corp. 425 Michigan Ave. Buffalo, New York 14203...
  • Page 2 Hello there. Thanks for embracing the evolution of mobile technology with Bak USA. We hope you enjoy your Seal experience. To best use your device, please refer to this guide. Bak USA Seal User Guide Version: v2 // 2017...
  • Page 3: Safety Precautions

    Attention Please follow these guidelines for the safe and proper handling of the device, power supply, battery pack, and power cord. Be sure to keep the power cord away from young children • As with all electrical products, precautions should be observed during handling and use to prevent electric shock.
  • Page 4: Table Of Contents

    Content Section Getting to Know Your Device page 1 Introduction................................ Package contents............................Layout..................................Views................................. Section Using Your Device page 3 Power ON/OFF..............................Power your device........................... Power on for the first time......................Power off your device........................... Put your device into sleep mode....................Wake up your device..........................
  • Page 5 Removing an app............................Wireless LAN............................... Enabling wireless connection......................Connecting to a wireless LAN......................Connecting an external device......................Connecting to the USB port......................Connecting to the HDMI port......................Section Battery page 18 Charging your battery..........................Inspecting your battery status......................Section Windows Help and Troubleshooting page 20 Troubleshooting...............................
  • Page 6: Section 1 Getting To Know Your Device

    Package Contents Carefully unpack your box and take out the items listed as below. If any items are missing or damaged, contact the seller immediately. Seal Tablet Power Cord Stylus *Depending on your order, the optional add-ons might be included in a separate package.
  • Page 7: Layout

    The Hardware Kensington Anti-Theft Lock/ Temperature + Humidity Flashlight/Barcode Scanner ON/OFF Button Volume Power Power Light Front Camera Micro HDMI USB Type C/Charging Port Flashlight Barcode Scanner (Optional*) USB 3.0 Headphone Jack 10 Pin Interface Back Camera Near Field Communcation Battery Fingerprint Reader *If Barcode Scanner is added, the flashlight is not available.
  • Page 8: Section 2 Using Your Device

    Using Your Device Powering ON/OFF Power ON Your Device If this is the first time you power on the device, connect the AC adapter and fully charge the battery. Press the power button (normally 1 to 2 seconds). You will see the power indicator LED on the right side of the device light up green.
  • Page 9: Power Off Your Device

    To do so, perform one of the following: • Press the power button once briefly. • Open the Start menu, select Power and then Sleep. Wake up Your Device • Press the power button once briefly. • Tap the Bak USA logo on the screen.
  • Page 10: Basic Touchscreen Operations

    Basic Touchscreen Operations • Do not use sharp objects to touch the screen; doing so may cause damage. • Do not touch the touchscreen with a conductive material, doing so may cause damage. • The following functions are application dependent. Some applications may not support these functions.
  • Page 11 Gesture name Explanation Pinch Touch two fingers to the screen, and then bring them together or pull them apart to zoom in and out on visual apps (such as pictures and maps). Rotate Touch your thumb and forefinger to an item, and then twist in a circular motion to rotate an object.
  • Page 12: Section 3 Windows Interface

    Windows Interface Desktop and Virtual Desktop Experience The Desktop screen is as shown below and natively provides the virtual desktop feature. To launch the feature click the app icon (pictured left).
  • Page 13: Taskbar

    Taskbar The black bar on the bottom of the desktop is called the Taskbar. It provides several key features: • Start menu • Search box • App shortcuts area • Notification area Start Menu To open the Start menu, click or tap the Windows icon (aka Start button) at the left end of the Taskbar.
  • Page 14: Search Box - Cortana

    Search box - Cortana Next to the Start menu is the search box, as shown below. When you select this box, a window will pop out, as shown below. This is the Cortana icon. Cortana is a new virtual assistant built into Windows 10.
  • Page 15: Notification Area

    Notification Area The right part of the Taskbar holds several icons that display the status of your device, as shown below. This is called the Notification Area. Icon Description Click here to show more hidden status icons. Displays the current battery status. For details, please refer to page 26.
  • Page 16: Section 4 Setup And Connection

    Setup and Connection To access to the Settings screen: Click the Windows icon in the lower left corner of the Desktop. Select Settings.  This will open the Settings screen, as shown below.
  • Page 17: Windows Activation

    Activate Windows To use all the features of your Windows device, you may need to activate your Windows system. To register and activate your Windows, perform the following: Open the Start menu and click Settings. Click Update & security. Select Activate. Follow the instructions to activate Windows.
  • Page 18: Replacr Desktop With Start Screen

    Replace Desktop with Start Screen If you are more familiar with the interface similar to the Start screen introduced in the Windows 8 series, you can set your device to show the Start screen instead of the Desktop every time you power on your device.
  • Page 19: Pin And Unpin Your App

    Pin and Unpin Your App to Start Menu or Taskbar To add an app: Open the Start menu and select All Apps. Press, hold, and release on the app that you want to appear on your Start menu or Taskbar, and an option menu will appear.
  • Page 20: Wireless Lan

    Wireless LAN Enable a wireless connection Open Settings menu and select Network & Internet. Select Wi-Fi and set the function to ON. Make sure you have switched the Airplane mode to OFF. To confirm that Airplane mode is disabled, go to the Desktop and check the Notification Area.
  • Page 21: Connecting An External Device

    Connect an External Device Your device comes with one USB 2.0 port and a Micro USB port. Connect USB devices to the Micro USB port using a USB cord. Once you plug a USB device into a USB port on your device, Windows will automatically load a driver for that device. After the driver has been loaded once, you can disconnect and reconnect the same device without having to install any drivers on subsequent reconnections.
  • Page 22: Connecting To The Hdmi Port

    Connect to the HDMI Port You can connect an external device (monitor, TV, projector, etc.) that has an HDMI port. This lets you connect your device to a larger display with a higher resolution.   P ower off the external device. Locate the Micro HDMI port on your device.
  • Page 23: Section 5 Battery

    Battery Charging Your Battery Plug the adapter into the charging port/Micro USB port, which you can find on the right side of the device. Plug the adapter into an electrical outlet. You will see the battery status indicator icon change as described in the next section.
  • Page 24: Inspecting Your Battery Status

    Inspect Your Battery Status In the Desktop, touch the battery icon in the Taskbar. A pop-up dialog box will appear and show you the remaining battery percentage. The battery icon reveals the status of your battery, which is described below. Icon Definition Battery is fully charged.
  • Page 25: Section 6 Windows Help And Troubleshooting

    Windows Help and Troubleshooting Troubleshooting This section describes some common problems, suggested solutions, and ways to recover your device from a crash. Be aware that the problems and solutions described here are meant only as a guide. They are not definitive problem solving techniques. For certain problems, you might need help from your IT department, the seller, or the Microsoft website.
  • Page 26 My screen goes blank while the following to resume from sleep mode: the device is on. - Press the power button. - Press the Bak USA logo on the screen. Sleep Issues • The battery power is getting low. The critical low-battery error Connect the AC adapter to the device.
  • Page 27 Display Issues • Do the following: The screen is blank. - If you are using the AC adapter, or using the battery, and the battery status indicator is on, increase the brightness of the display. - Press the power button to resume from sleep mode.
  • Page 28 Other Issues • To turn off your device, press and hold Your device does not respond. the power button for 6 seconds or more. If the device still does not respond, remove the AC adapter. • Your device might lock when it enters sleep mode during a communication operation.
  • Page 29: Section 7 Specification

    Specification BASICS Device Dimensions / Weight LCD Screen 9” L x 6 1/8” W, 0.9” D 8” 1.75lbs. 450nits 16:10, 1280 x 800HD Corning® Gorilla® Glass Type 3 Battery Touch Panel Lithium Polymer 10-Point Capacitance 3.7V/5700mAh 6.5 Hours Typical Usage HARDWARE Processor Camera...
  • Page 30 Regulatory Compliance Information FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 31 この装置は、情報処理装置等電波障害自主規制協議会=E s ` ` f F = の基準= に基づくクラス= _ = 情報技術装置です。この装置は、家庭環境で使用するこ= とを目的としていますが、この装置がラジオやテレビジョン受信機に近接= して使用されると、受信障害を引き起こすことがあります。= 取扱説明書に従って正しい取り扱いをして下さい。= Taiwan battery recycling: Translation – please recycle batteries Trademarks Windows and Microsoft are trademarks of Microsoft Corporation. SEAL is a trademark of BAK USA Technologies Corp...

This manual is also suitable for:

Seal 8
