Instruction Manual
Automatic Wrist Blood Pressure Monitor
Medical grade
technology
meets elegant,
compact design.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOCACuff and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocacare MOCACuff

Summary of Contents for Mocacare MOCACuff

  • Page 1 Instruction Manual Automatic Wrist Blood Pressure Monitor Medical grade technology meets elegant, compact design.

  • Page 3: Table Of Contents

    Table of Contents Medical Disclaimer Applying the Cuff Intended Use Positioning Guide About Blood Pressure Measurement Procedure Measurement Method Memory Function Accuracy Bluetooth Transmission Precautions Storage and Maintenance Device Overview Troubleshooting Symbol Definitions Warranty & Recalibration Features Specifications Installing Batteries Note Appendix...

  • Page 4: Medical Disclaimer

    18 years and older with wrist circumference ranging from 5.3 inches to 7.7 inches (approx. 135 mm to 195 mm) and for home use. MOCACuff detects the appearance of irregular heartbeats during measurement; an indicated symbol will appear with measuring reading.

  • Page 5: About Blood Pressure

    About Blood Pressure What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating.
  • Page 6 This is why medical practitioners recommend home monitoring as it is important to get readings of blood pressure during different times of the day to really get an idea of your real blood pressure. Medical practitioners generally recommend the "Rule of 3", where you are encouraged to take your blood pressure three times in a row (at 3 ~ 5 minute interval), three times a day for three days.

  • Page 7: Variations In Blood Pressure

    Variations in blood pressure Individual blood pressures vary greatly both on a daily and a seasonal basis. These variations are even more pronounced in hyper tense patients. Normally the blood pressure rises while at work and is at its lowest during sleeping period. (hyper tense: means a person who has high blood pressure symptom.) The graph below illustrated the variations in blood pressure over a whole day with measurement taken every five minutes.

  • Page 8: Measurement Method

    Measurement Method MOCACuff Automatic Wrist Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your wrist, just turn on the monitor and inflation automatically starts. The inflation of the cuff creates pressure around the arteries inside the wrist.

  • Page 9: Accuracy

    Accuracy MOCACuff Automatic Wrist Blood Pressure Monitor has been clinically tested against a scientific device called a mercury sphygmomanometer, considered the gold standard in blood pressure measurement. All MOCACuff Automatic Wrist Blood Pressure Monitors have performed equivalent to measurements taken with this scientific device and are within the accuracy limits prescribed by the American National Standard for Electronic or Automated Sphygmomanometers.

  • Page 10: Precautions

    Precautions • D o n o t u s e t h i s m a n u a l a n d p r o d u c t a s a s u b s t i t u t e f o r a d v i c e , d i a g n o s i n g o r t r e a t i n g a h e a l t h p r o b l e m o r p r e s c r i b i n g a n y m e d i c a t i o n b y y o u r d o c t o r.
  • Page 11 • To allow your blood vessels to return to the condition prior to taking the measurement, please wait at least 3 ~ 5 minutes in between measurements. You may need to adjust the wait time according to your personal physiological situation. •...
  • Page 12 • Keep in mind that blood pressure naturally varies from time to time through out the day and is affected by lots of different factors such as stress, eating, smoking, alcohol consumption, medication, and physical activity, etc. • Normally the blood pressure rises while at work and is at its lowest during sleeping period.
  • Page 13 ATTENTION 1. Do not use the device on infants, children, or those who cannot express their own intention. 2. The device is equipped with sensitive electronic components. While measuring, avoid strong electrical or electromagnetic fields, e.g. mobile phones, microwave ovens, etc; or it may lead to temporary reading error or inaccuracy.

  • Page 14: Device Overview

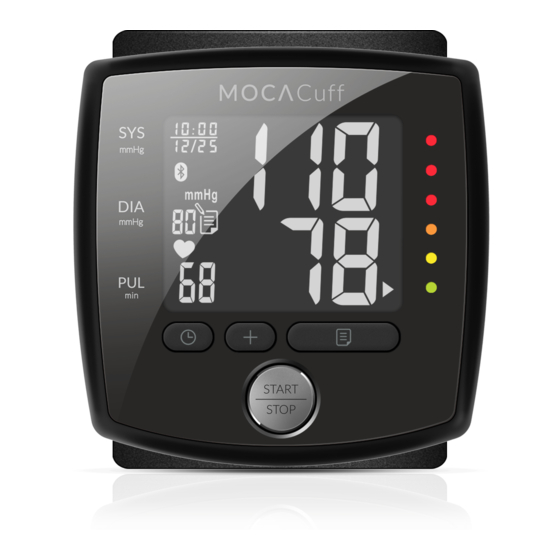

    Device Overview Product components Risk Category Indicator Display Mode Memory Button Button Start/Stop Button Button (AAA "LR03"(1.5V) Storage Case Alkaline Battery x 2 ) CAUTION Substitution of a component different from that supplied might result in measurement error.

  • Page 15: Unit Display

    Device Overview Unit display Hour : Minute Systolic Rate (Also represents YEAR Setting Mode) Month / Date Bluetooth Symbol Risk Blood Pressure Unit Category Indicator Low Battery Symbol Memory Record Number Pulse Symbol Irregular Heartbeat Detector Heart Rate Diastolic Rate...

  • Page 16: Symbol Definitions

    Symbol Definitions SYMBOLS DEFINITIONS This symbol appears when the battery power is excessively low or the polarity reverses. We suggest you replace all batteries LOW BATTERY with new ones, and make sure the +/- SYMBOL polarities are properly positioned. Once pulse is detected, the symbol flashes with each pulse beat.
  • Page 17 SYMBOLS DEFINITIONS LCD displays this symbol when Bluetooth Function turns ON. BLUETOOTH SYMBOL The arrowhead points out the specific Risk Category that your measurement RISK reading fits in. CATEGORY INDICATOR BAR This symbol goes along with figures according to the order of reading MEMORY stored in the memory.

  • Page 18: Features

    Features Risk Category Indicator This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into six stages (Optimal to Severe hypertension) as shown in below chart: Recommendations by SIGN49: Stages of Blood Sytolic Diastolic Color Pressure Levels Hypertension in older people (mmHg) (mmHg)
  • Page 19 Diastolic (mmHg) Severe Hypertension Moderate Hypertension Mild Hypertension Orange High-Normal Yellow Normal Optimal Green Systolic (mmHg) NOTE When a person’s systolic and diastolic pressures fall into different categories, the higher category should apply. e.g. systolic rate 181 & diastolic rate 99 Red category (Severe Hypertension) e.g.

  • Page 20: Irregular Heartbeat Detector

    Features Irregular Heartbeat Detector The symbol will appear on screen indicating a certain heartbeat irregularity was detected during measurement. The heartbeat rhythm that is more than or less than 25% from the average rhythm is usually defined as an irregular heartbeat rhythm. Talking, moving, shaking or an irregular pulse during the measurement can result in the appearance of this symbol.
  • Page 21 • As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your device. • The IHB function is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmic problem.
  • Page 22 Features Bluetooth Data Transmission MOCACuff features a built-in "Bluetooth Data Transmission" function, which enables the device automatically transmit measuring results to paired Bluetooth-enabled device after measurement. When connection established, BPM would transmit memory data such as Measure Date, Systolic, Diastolic and Pulse to the Bluetooth enabled device.
  • Page 23 Features NOTE • MOCACuff is subject to and complies with electromagnetic compatibility (EMC) standard of IEC 60601-1-2, EN 301 489-1, EN 301 489-17, EN 300 328 and U.S. federal guidelines, Part 15 of the FCC (Federal Communications Commission) rules for devices with RF capability.
  • Page 24 Bluetooth-enabled device which is compatible with Android 4.3 or iOS 7.0 or above. Please follow the following steps for installing: 1. To install MOCACARE FREE APP, go to the Google Play APP store, and search for MOCACARE app. 2. Click the INSTALL button. Once installed, click on MOCACARE app APP icon.

  • Page 25: Installing Batteries

    Installing Batteries When LOW BATTERY SYMBOL appears on the display, or no reaction toward operation, please change batteries. Replace all worn-out batteries with new ones and do not mix new and used batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable cadmium batteries either.
  • Page 26 Attention • Batteries are hazardous waste. Do not dispose of them together with the household garbage. Please discard worn-out batteries to the recycling site according to local regulations. • Keep the battery away from children in case they choke on it. •...

  • Page 27: Applying The Cuff

    Applying the Cuff 1. Do not place the pressure cuff over a jacket or sweater sleeve. Wrap the pressure cuff around the bare wrist with the monitor facing you. 2. Wrap the cuff snugly. Do not make it too tight. 3.

  • Page 28: Positioning Guide

    Positioning Guide It is extremely important that the cuff be at the same height as the heart. Having the cuff higher or lower may cause inaccurate results. Position 1 1. Sit down comfortably with your feet flat on the floor and back supported.

  • Page 29: Measurement Procedure

    Measurement Procedure Switch on the Monitor A. Press button to switch on the monitor. B. All segments appear on the screen. Setting Year, Date and Time A. Press button ("YEAR" flashes). Press button to adjust YEAR value. B. Press button ("MONTH" flashes). Use button to adjust MONTH (1, 2, 3,……, 12).
  • Page 30 Measurement Procedure Turning Bluetooth Feature ON/OFF User can press and hold button 3 seconds to turn the Bluetooth feature ON/OFF in Standby Mode. Bluetooth feature OFF Bluetooth feature ON NOTE • The Bluetooth Feature Switch default setting is ON • Once Bluetooth Feature turns ON, the LCD appears Bluetooth symbol in any mode.

  • Page 31: Get Started

    Get Started A. With the cuff wrapped around your wrist, press button to start measurement. All display units appear on the screen. NOTE Do not inflate the cuff until it is wrapped around your wrist. B. After all symbols disappear, the display will show "00".
  • Page 32 Measurement Procedure NOTE • If the cuff does not stop inflating, remove the cuff at once. • To stop measurement, press button. The cuff will deflate immediately after the button is pressed. D. LCD screen displays your systolic rate, diastolic rate, pulse, Risk Category Indicator Bar, and Irregular Heartbeat Detector symbol (if any) with date and time for 1...

  • Page 33: Memory Function

    Memory Function Storing data After each measurement, the systolic and diastolic pressure, heart rate with date and time will be automatically stored. The monitor can store up to 99 memory sets for one user, and automatically replace the oldest data with new one. Recalling data A.
  • Page 34 Erasing data Erasing data A. Press button to enter Memory Mode. B. Press and hold buttons at the same time, the data will be erased automatically. C. To confirm the data in the selected user has been erased, press button and no data should appear. NOTE ONCE DELETED, YOUR DATA CAN NOT BE RESTORED.

  • Page 35: Bluetooth Transmission

    Bluetooth function automatically, and the Bluetooth Symbol will begin flashing on the screen. 2. While transmitting the reading to your Bluetooth-enabled Device, MOCACuff Bluetooth Symbol will remain steady on the screen. 3. MOCACuff can only pair up with one Bluetooth-enabled device at a time.
  • Page 36 D e v i c e , M O C A C u f f B l u e t o o t h S y m b o l w i l l remain steady on the screen. 3. MOCACuff can only pair up with one Bluetooth-enabled device at a time. To transmit measuring results to other Bluetooth-enabled device, please retry as mention above.

  • Page 37: Maintenance And Storage

    Maintenance and Storage General Use • Do not in any way twist the cuff. • Do not press button if the cuff is not wrapped around the wrist. • Do not drop the product and avoid any strong impacts. Maintenance •...
  • Page 38 • Do not implement the maintenance procedures for equipment during measurement. • Only trained technicians are allowed to repair and dissemble the device, including software upgrades, patches and maintenance. NOTE Water quality required for cleaning and disinfection: Tap water. Storage •...

  • Page 39: Troubleshooting

    Troubleshooting SYMBOLS / CONDITIONS / INDICATION / SYMPTOMS CAUSES CORRECTION Replace them with Unit does not turn Worn-out batteries. 2 new AAA (LR03) on when button alkaline batteries. is pushed. Battery polarities Re-insert the batteries in have been positioned the correct positions. incorrectly.
  • Page 40 Troubleshooting SYMBOLS / CONDITIONS / INDICATION / SYMPTOMS CAUSES CORRECTION Please re-pairing the BPM and Paring has not been Bluetooth device with completed. each other. Please refer to Page 27 "Measurement Procedure" Bluetooth function and Page 33 "Bluetooth is not turn on. Transmission"...

  • Page 41: Warranty & Recalibration

    Warranty & Recalibration Warranty For One Year from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications;...

  • Page 42: Specifications

    Specifications Model Number MOCACuff Oscillometric Measurement Method Rated Range of Cuff Pressure 0~300mmHg Rated Range of Determination 40 ~ 280 mmHg 40 ~ 199 beats/minute Measurement Range of Heart Rate Pressure: ±3 mmHg Accuracy Pulse: ±5 % Max. Automatic Inflation (Air Pump) Inflation Automatic Air Release Control Valve.
  • Page 43 Specifications RF Type Bluetooth 4.0 BLE RF Modulation GFSK Effective Radiated Power 0 dBm Data Throughput 0.2 Mbps Expected Delay (Latency Range) The latency time is less than 0.3 ms second from sender to receiver. in Wireless (RF) Communication Channel Quality-Driven Data Rate (CQDDR) Integrity technology increases the effective data rate and integrity in noisy environments.

  • Page 44: Note

    Note Manufacturer: Follow instructions for use. HEALTH & LIFE CO., LTD. 9F, No. 186, Jian Yi Road, BF Classification: Zhonghe District, New Taipei City, Taiwan. - Internally powered equipment www.healthandlife.com.tw - BF type applied part - IP22-Degrees of protection provided by enclosures - Not suitable for use in presence of flammable anesthetic mixture with air or with Oxygen or nitrous oxide - Continuous operation with short-time loading...
  • Page 45 Note NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency e n e rg y a n d , i f n o t i n s t a l l e d a n d u s e d i n a c c o rd a n c e w i t h the instructions, may cause harmful interference to radio...
  • Page 46 CAUTION: To assure continued FCC compliance: 1. Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. 2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &...
  • Page 47 MOCACuff essential performance per IEC 80601-2-30 additional essential performance requirements: • 201.12.1.102 Limits of the error of the manometer from environmental conditions Over the temperature range of 5 °C to 40 °C (41 °F ~ 104 °F) and the relative humidity range of 15 % to 93 %...

  • Page 48: Appendix

    Appendix Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – guidance Emissions test Compliance RF energy is used only to maintain device’s operation.
  • Page 49 Appendix Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic IEC 60601 test Compliance Immunity test environment – guidance level level ±6 kV ±8 kV The relative humidity...
  • Page 50 Appendix Recommended separation distances between portable and mobile RF communication equipment and the device. The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters).
  • Page 51 Appendix Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Immunity IEC 60601 Compliance Electromagnetic environment – guidance test test level level Portable and mobile RF communications equipment should be used no closer to any part of the...
  • Page 52 Appendix NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with...
  • Page 55 Contact us support@mocacare.com More information please visit www.mocacare.com...
  • Page 56 P/N: 323102949 VER: 001...
