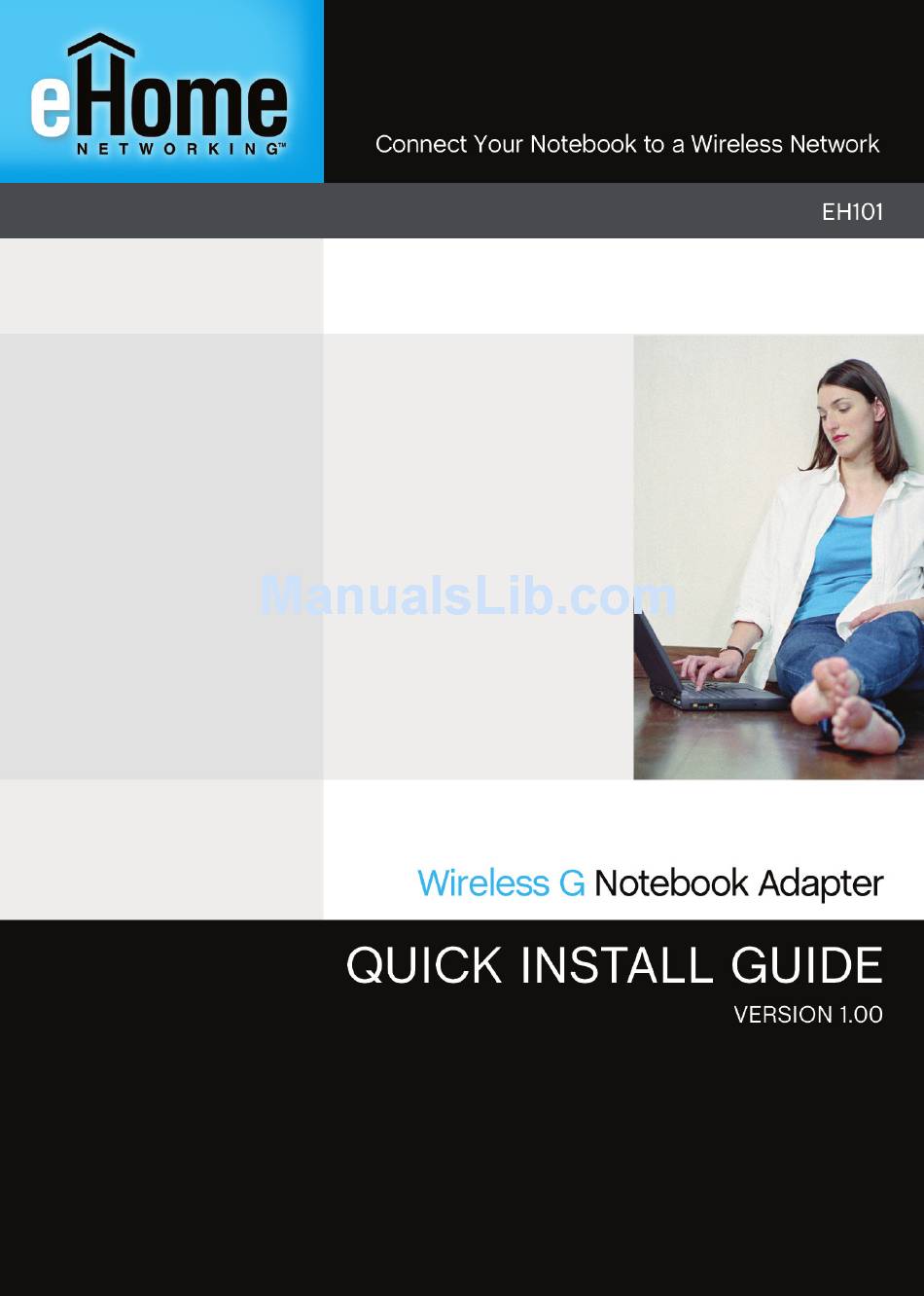

Summary of Contents for eHome EH101
-
Page 2: System Requirements
802.11g or 802.11b wireless adapter (for Ad-Hoc networking mode.) Package Contents eHome EH101 Manual, software, and Wireless G Notebook Adapter warranty on CD If any of the above items are missing, please contact your reseller. eHome EH101 Quick Install Guide... -
Page 3: Hardware Overview
Hardware Overview Activity LED A blinking light indicates data is being transmitted. Link LED A steady light indicates a connection to a wireless network. eHome EH101 Quick Install Guide... -
Page 4: Wireless Installation Considerations
Wireless Installation Considerations The eHome wireless adapter lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. -
Page 5: Adapter Installation
CD. Turn on the computer and Insert the eHome EH101 Driver CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows XP. The steps and screens are similar for the other Windows operating systems. - Page 6 Files\Wireless G EH101, where C: represents the drive letter of your hard drive. To install to a different location click Browse and specify the location. Click Next Select the Program Files folder location. Click Next eHome EH101 Quick Install Guide...
- Page 7 Click Next to continue or click Scan to display the site survey page. Click the Scan button to display a list of wireless networks (site survey). Click on the network name (SSID) and click Next. Click Next eHome EH101 Quick Install Guide...
- Page 8 Click Finish Click Finish to continue. If you are prompted to reboot your computer, select Yes, I want to restart my computer now. Click Finish Click Finish eHome EH101 Quick Install Guide...
-
Page 9: Connect To A Wireless Network
The utility provides the user an easy interface to change any settings related to the wireless adapter. After you have completed the installation of the EH101 and whenever you start the computer, the Configuration Utility starts automatically and the system tray icon is loaded in the toolbar. - Page 10 If the network you are connecting to is using WEP, enter the WEP key for the network and click OK. If the network you are connecting to is using WPA-PSK, enter the passphrase for the network and click OK. eHome EH101 Quick Install Guide...
- Page 11 Notes eHome EH101 Quick Install Guide...
-
Page 12: Technical Support
August 7, 2006 2907EH101A16000 Copyright ©2006 D-Link Corporation/D-Link Systems, Inc. All rights reserved. eHome Networking and the eHome Networking logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary.
