Page 2: System Requirements
System Requirements A computer or laptop with an available USB 2.0 port Windows 2000 or XP ® At least 64MB of memory Properly installed and working USB Controller Package Contents Manual, software, and eHome EH103 warranty on CD Wireless G USB 2.0 Adapter If any of the above items are missing, please contact your reseller. eHome EH103 Quick Install Guide... -
Page 3: Hardware Overview

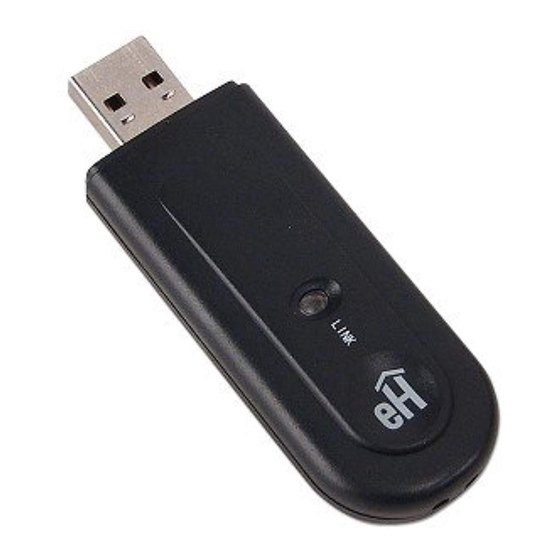

Hardware Overview USB Port Used to connect the EH103 to your computer. eHome EH103 Quick Install Guide... -
Page 4: Wireless Installation Considerations
Wireless Installation Considerations The EH103 lets you access your stored data and media files using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: Keep the number of walls and ceilings between the EH103 and other network devices to a minimum - each wall or ceiling can reduce your EH103’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception. -
Page 5: Software Installation
XP. The steps and screens are similar for the other ® Windows operating systems. ® Note: install the EH103 Wireless G USB Adapter into your computer before installing the driver software from the eHome CD! Click Install Drivers. If the CD Autorun function does not automatically start on your computer, type “D:\Drivers\setup.exe”. If it does start, proceed to the next screen. - Page 6 The InstallShield Wizard window will appear. Click Next to continue. By default setup will install to the default location: C:\Wireless G USB Adapter EH103, where C: represents the drive letter of your hard drive. To install to a different location click Browse and specify the location. Click Next. Select the Program Files folder location. Click Next to continue. eHome EH103 Quick Install Guide...
- Page 7 Remove the protective covering from the EH103. Insert the EH103 into an available USB port on your computer. Optional: If desired or necessary, attach the cradle between the EH103 and your computer. Click Next to continue. For Windows XP: This Hardware ® Installation alert screen will appear. Click Continue Anyway. Click the Scan button to display a list of wireless networks (site survey). You may manually enter the SSID or network name. Click Next to continue. eHome EH103 Quick Install Guide...
- Page 8 Click on the network name (SSID) and click Connect. If there is a lock icon under Security, this means the network is secure (WEP or WPA). If the wireless network you are trying to connect to is encrypted, enter the WEP key or WPA passphrase. Click Next to continue. Click Finish to continue. eHome EH103 Quick Install Guide...
- Page 9 Click Finish to complete the installation. Select Yes, I want to restart my computer now and click Finish. After you have completed the installation, the eHome EH103 Wireless Connection Manager will automatically start and the utility icon will appear in the bottom right hand corner of the desktop screen (systray). If this icon appears GREEN, then you have successfully installed the EH103, are connected to a wireless network and are ready to communicate! eHome EH103 Quick Install Guide...
-
Page 10: Connect To A Wireless Network
Connect to a Wireless Network The EH103 uses the Configuration Utility as the management software. The utility provides the user an easy interface to change any settings related to the wireless adapter. After you have completed the installation of the EH103 and whenever you start the computer, the Configuration Utility starts automatically and the system tray icon is loaded in the toolbar. Clicking on the utility icon will start the Configuration Utility. This window will allow you to see available wireless networks in your area. Simply click the network (SSID) you want to connect to and click the Connect button. If you are connecting to a secure network, you will be prompted to enter the encryption key. Please refer to the Wireless Security section in the manual located on the eHome CD. eHome EH103 Quick Install Guide... - Page 11 If you are attempting to connect to a secure network, You must supply the encryption key that is on the router or access point you are trying to connect to. Please refer to the manual on the CD for more information on Wireless Security. If the network you are connecting to is using WEP or WPA/WPA2, enter the key or passphrase for the network and click OK. eHome EH103 Quick Install Guide...
-
Page 12: Technical Support
Version 1.0 August 7, 2006 Copyright ©00 D-Link Corporation/D-Link Systems, Inc. All rights reserved. eHome Networking and the eHome Networking logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Maximum wireless signal rate based on IEEE Standard 0.11g specifications. Actual data throughput will vary.
