CONSTRUCT AND CONNECT
NOTE: Feed all cables under the base, so they do not interfere with Heated Print Bed

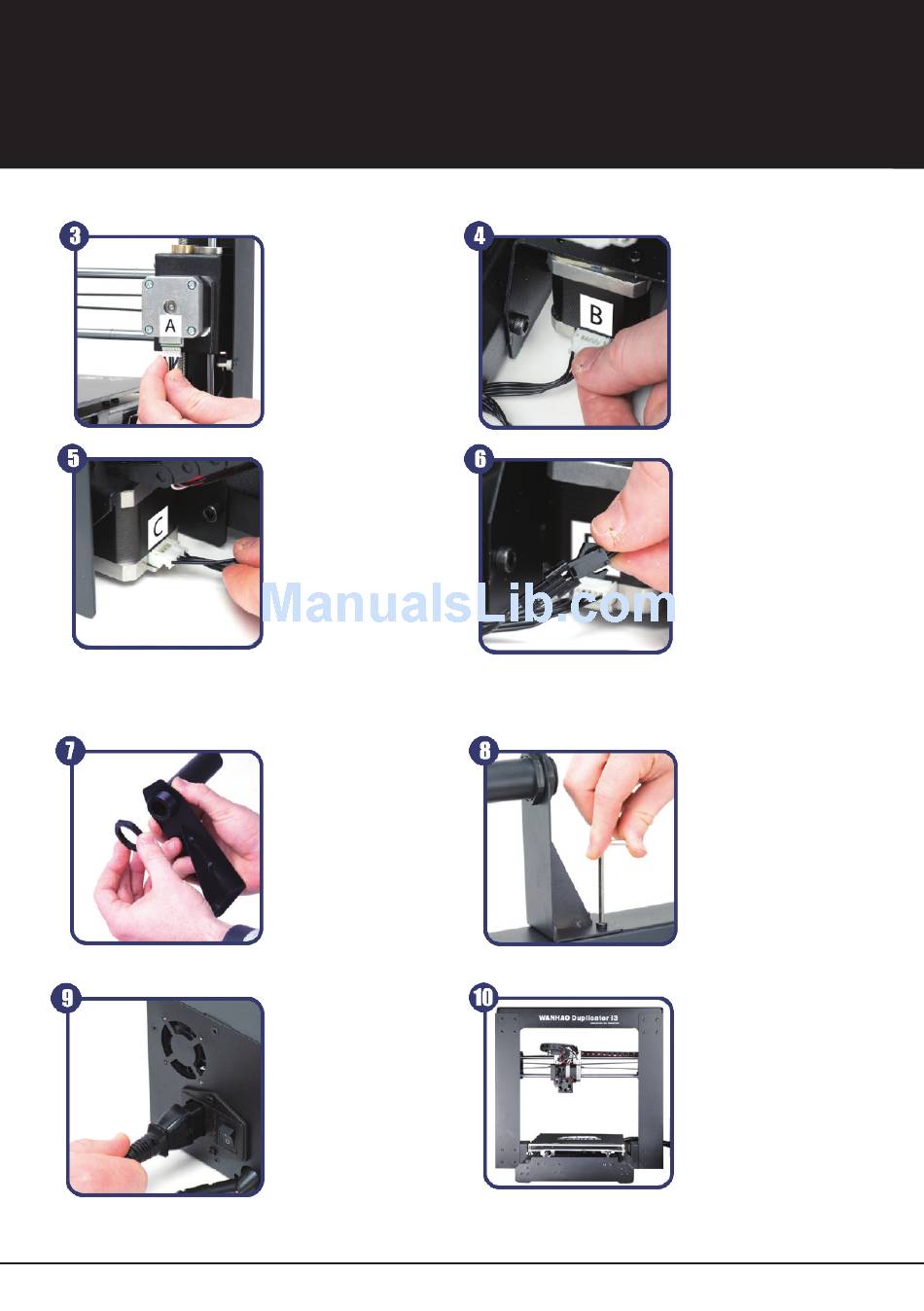

Carefully cut the cable
tie on the left side of the
Heated Print Bed. Then,
on the left side, insert
the long cable connector
marked 'A' into the motor
connector of the Extruder
Tower marked 'A'
On the right side, insert
the white connector
marked 'C' into the motor
connector of the Extruder
Tower marked 'C'.
Remove the outer plastic
nut from the Filament
Spool Holder; then insert
the threaded end of the
Spool Holder into the
large hole of the Spool
Holder Stand. Tighten
the plastic nuts on each
side to secure the Spool
Holder.
With the power switch in
the 'OFF' position, insert
the power cable into
the back of the Control
Box and plug the other
end into a mains power
outlet. Turn the 3D
Printer power switch on.
3DP-i3V2-01 - 3D printer for ABS/PLA filament
On the left side, insert
the short cable connector
marked 'B' into the motor
connector of the Extruder
Tower marked 'B'.
On the left side, insert
the black connector
marked 'D' into the black
connector of the Extruder
Tower marked 'D'.
Position the Filament Spool
Holder Stand on top of the
Extruder Tower, then insert
the bolts and tighten with
the Hex Wrench.
Once initialized, press the
dial to enter the Main
Menu.
Rotate the dial and press
when 'Position' is
highlighted.
Rotate the dial and press
'Z. Pos. Fast'. Turn the dial
clockwise to raise the
extruder so you can access
the Heated Print Bed.
