SR1 Operation
215
Analog Generator Maximum Output
This selection limits the maximum analog generator peak voltage to the specified value. This can be
useful in avoiding accidental over-voltages when the generator is connected to sensitive equipment.
Knob & Keypad
The two checkboxes turn on and off the sounds produced when the knob is turned, or a key on the front-
panel keypad is pressed. The "Knob Acceleration" control determines how the selected parameter
changes when the knob is turned. "Exponential" and "Power Law" are continuous acceleration profiles
which smoothly increase the amount by which the selected parameter changes as the knob turns.
When "Cursor Position" is selected turning the knob increments or decrements the digit just to the left of
the current cursor position.

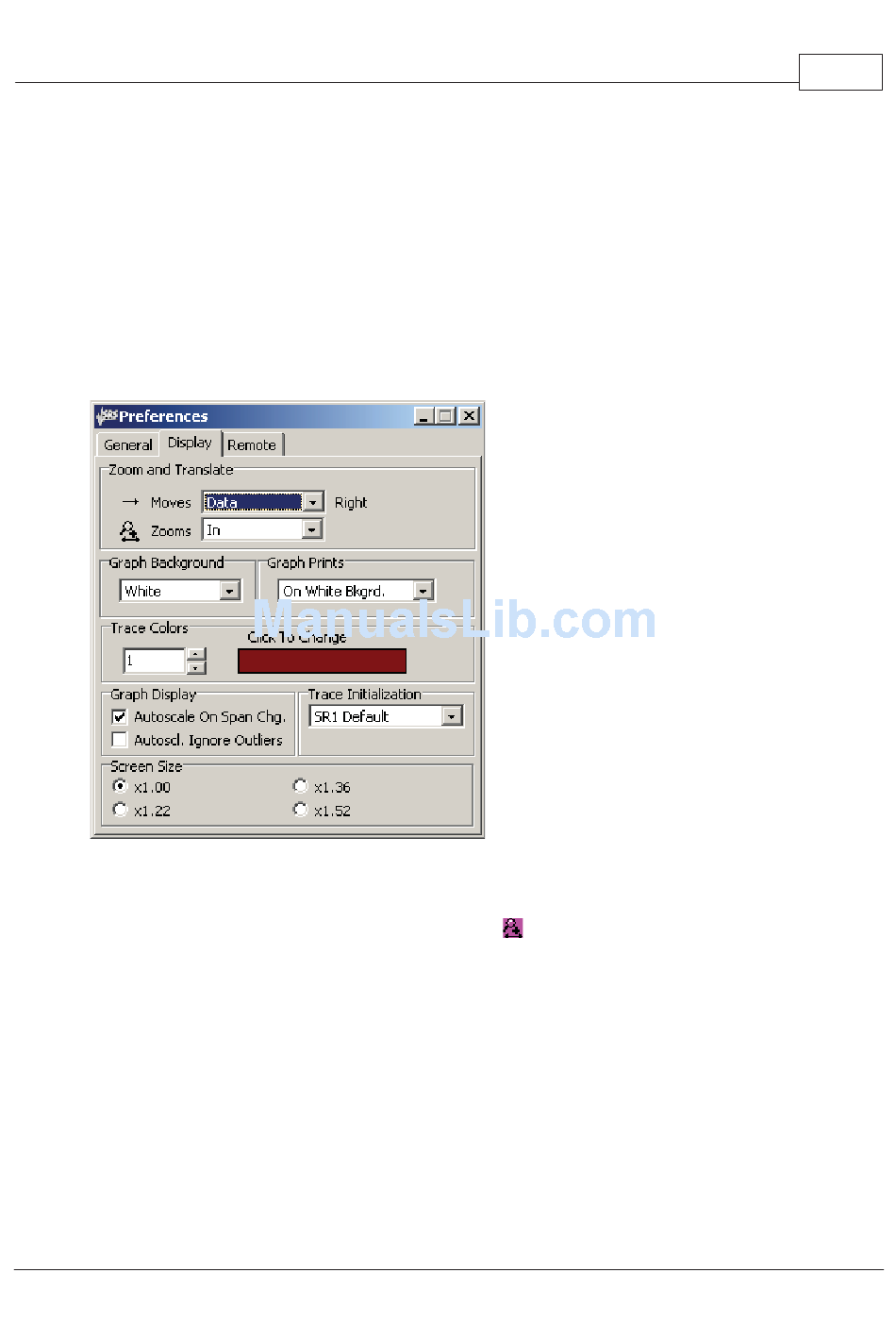

Display Preferences Tab
Zoom and Translate
These controls select the sense of the Zoom and Translate controls on both the graph and digitizer
graph displays. Depending on which feels more natural the "left arrow" can be selected to move either
the data to the left or the axes to the left. Likewise the
icon can be configured to zoom the display in
or out.
Graph Background
Select a White or Black background for the graph displays. This selection only affects new graph
displays, not displays already on the screen. For printed graphs, the "Graph Prints" control selects
whether the printed background is the same as the screen background color or is always white.
Trace Colors
All graph displays use the same set of default colors for each trace. To change the default color for the n
th
trace, select the desired trace and click on the color bar to bring up a color dialog and choose a new
color. Note that the set of default colors is different depending on whether a black or white graph
background is chosen. Typically brighter colors work well on the dark background and darker trace
colors show up better on the white graph background.
© 2014 Stanford Research Systems
