Summary of Contents for Lambda REDOX

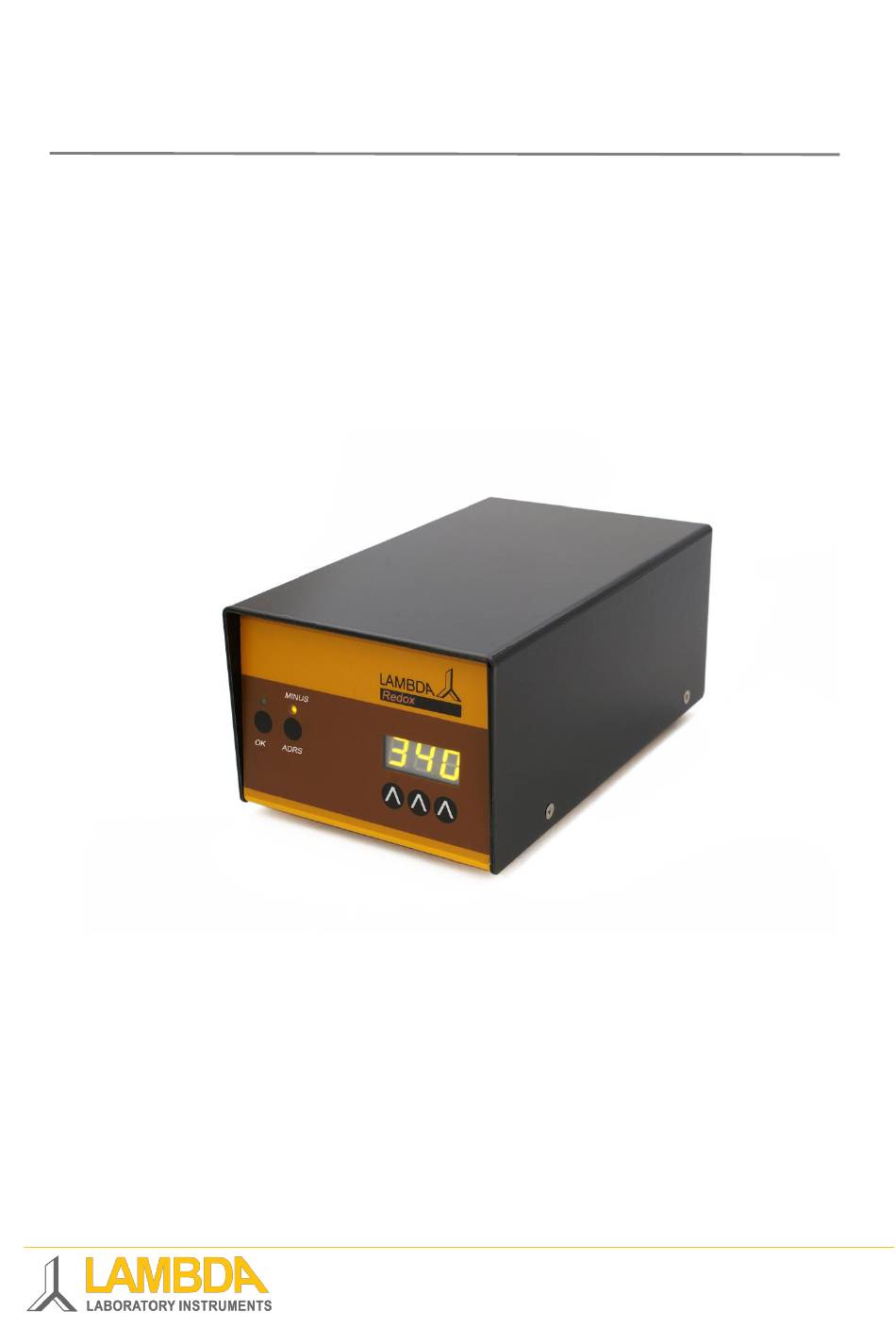

- Page 1 OPERATION MANUAL REDOX Measurement Unit LAMBDA REDOX – Red-Ox Potential measurement unit...
- Page 2 It does not require any additional connector, cable or side neck. However, the MINIFOR fermenter-bioreactor must have been equipped with the Redox option in advance. The output RedOx signal is then provided on the “PUMP” (“Redox”) socket at the rear side of the MINIFOR base unit.
-
Page 3: Table Of Contents
Remote control (Inputs/outputs) ................7 Accessories ......................7 Guarantee ......................7 Appendix ......................8 RS communication protocol for LAMBDA REDOX Potential measurement unit ..8 How to set the REDOX measurement unit address? ..........8 RS-connection scheme ................... 9 www.lambda-instruments.com... -
Page 4: Setting Up The Redox Measurement Unit
8-pole cable (art. no. 4810) to the “PUMP” (“Redox”) - socket at the rear of the MINIFOR laboratory fermenter-bioreactor. The other end of the 8-pole cable (art. no. 4810) is plugged into the “MINIFOR Redox” - socket at the rear of the REDOX measurement unit. -
Page 5: Configuration Of Siam Software For Redox
CONFIG select the desired .CFG file Figure 2.2-3 The selected program will open. Creating a new configuration file for MINIFOR with REDOX could also be done. More information about creating a program configuration file based on the requirements in SIAM... - Page 6 Figure 2.2-5 To connect the Analog Input icon 1) under the Values in visual components tool to Redox, click on the display and right click. bar and click the cursor on the synoptic window. Choose Channel choice from the list.
-
Page 7: Technical Specifications
REDOX measurement unit. Don’t forget to select CONNECTED option. 3 TECHNICAL SPECIFICATIONS 3.1 General specification LAMBDA REDOX – Red-Ox potential (ORP) measuring unit Type: for MINIFOR Fermentor-Bioreactor Working range: -999 to 999 mV in 1 mV steps... -
Page 8: Remote Control (Inputs/Outputs)
The customer will send the instrument to our service office. Damage or loss of items during transport will not be compensated for by LAMBDA. Failure to fulfil these requirements will disqualify the customer from compensation. Serial Number: _____________________________ Guarantee from: ____________________________ www.lambda-instruments.com... -
Page 9: Appendix
Press the ADRS button continuously and at the same time connect the 8-pole cable to REDOX measurement unit again. The message “A” and two numbers will appear on the display. This number from 00 to 99 is the current address of the powder dosing instrument. -
Page 10: Rs-Connection Scheme
LAMBDA REDOX measurement unit Operation MANUAL 6.3 RS-connection scheme The 8-pole DIN connector “REMOTE” is used for the remote control and RS-485 connection. Colour Description yellow (+) input remote speed control 0-10V *) grey step signal from stepping motor (0 and 12V)
