mA CURRENT CLAMP
OPERATOR' S MANUAL
Distribution_Stamp_Layout 1 25/06/2013 14:42 Page 1
Distribution in the UK & Ireland
Lambda Photometrics Limited
Lambda House Batford Mill
Harpenden Herts AL5 5BZ
United Kingdom
E:
info@lambdaphoto.co.uk
W: www.lambdaphoto.co.uk
T:
+44 (0)1582 764334
F:
+44 (0)1582 712084
AC/DC
Advertisement
Table of Contents
Related Manuals for Lambda TA018
Summary of Contents for Lambda TA018
- Page 1 AC/DC mA CURRENT CLAMP OPERATOR’ S MANUAL Distribution_Stamp_Layout 1 25/06/2013 14:42 Page 1 Distribution in the UK & Ireland Lambda Photometrics Limited Lambda House Batford Mill Harpenden Herts AL5 5BZ United Kingdom info@lambdaphoto.co.uk W: www.lambdaphoto.co.uk +44 (0)1582 764334 +44 (0)1582 712084...

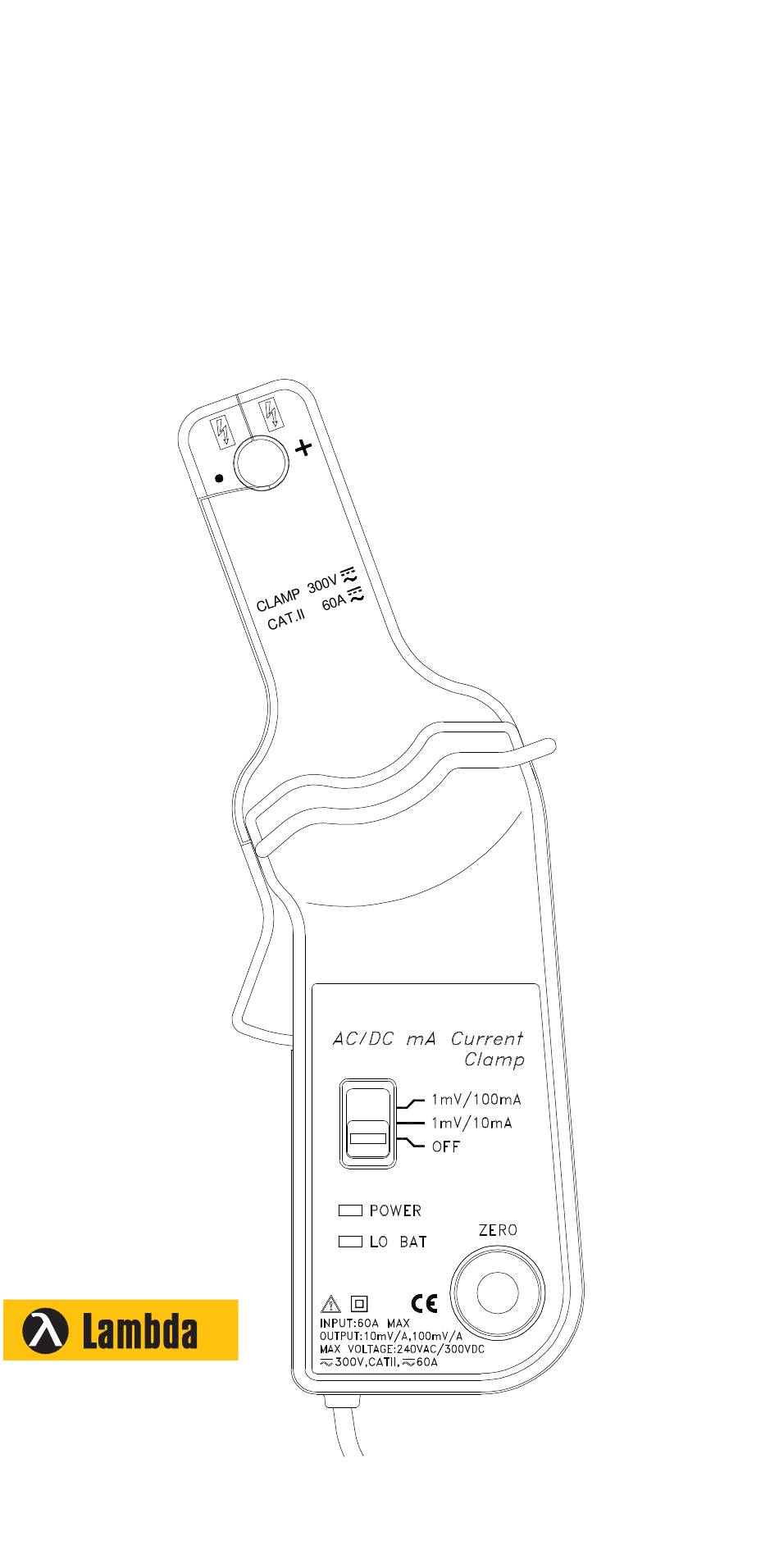

- Page 2 INTRODUCTION The AC/DC mA Current Clamp is a transducer which will allow your multimeter to measure low electrical or/and elec- tronic current up to 60 amperes AC/DC, with a frequency response up to 20kHz. When measuring current with this clamp, there is no need to break a circuit or to affect the isolation.
-
Page 3: Application Notes
APPLICATION NOTES 1.In the case of DC current, the output is positive when the current flows from the upside to the underside of the clamp. The red banana plug is positive. 2.In the case of DC current measurement, a hysteresis ef- fect can occur so that it is impossible to zero the clamp properly. -
Page 4: Safety Information
When the unit is connected to a DMM which accuracy is supposed to be 0.5% in 200mV range,the reading displayed on the DMM will be 10.25mV max. (10.20mV x (1+0.5%)=10. 25mV) and 9.75mV min. (9.80mV x (1-0.5%)=9.75mV) Current Clamp Accuracy DCA range: 1mV/10mA ±...
