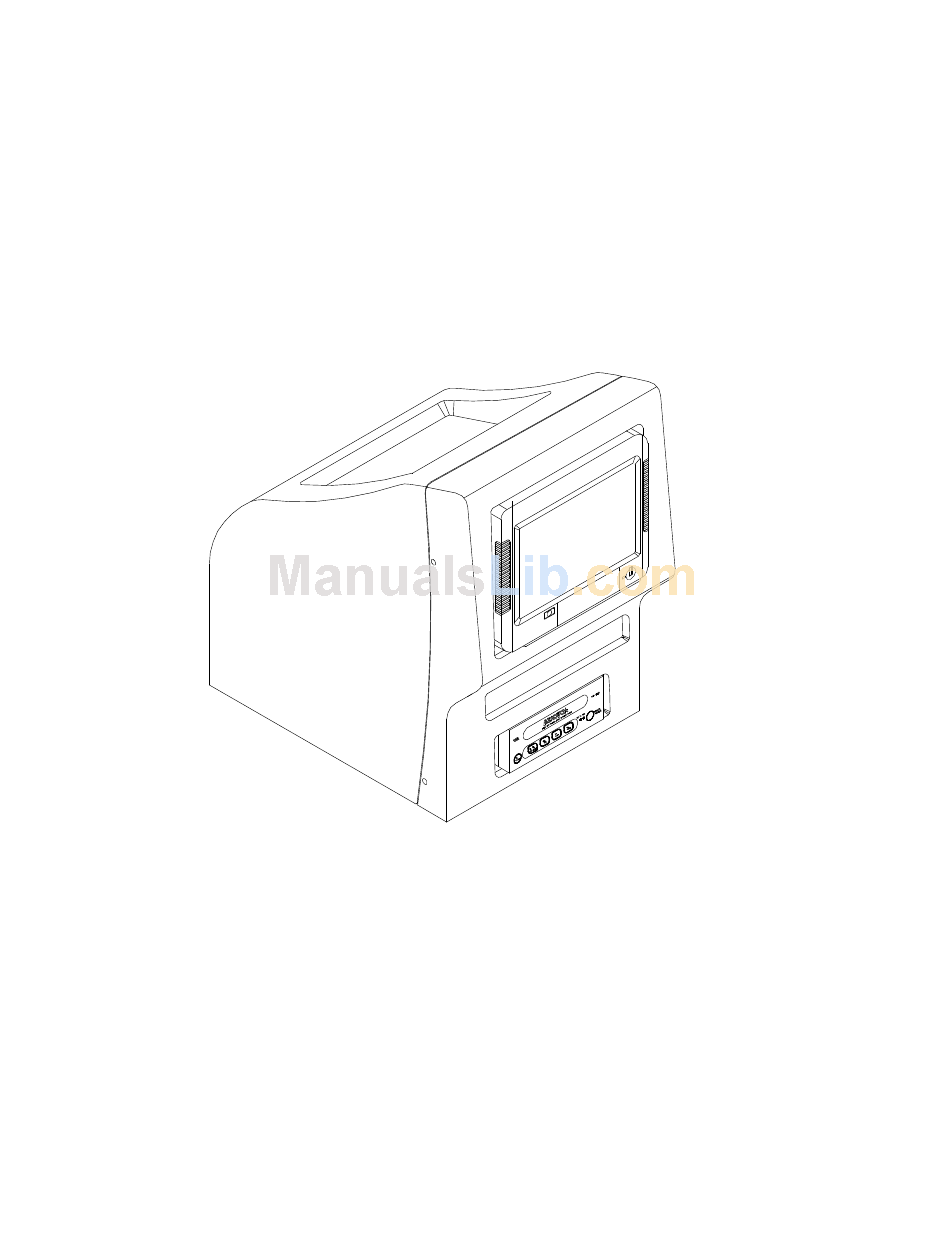

ASA Electronics TV/VCP Floor Console
Model K-9 With out Harness and Antenna
12 Volt DC powered remote controlled 9" television AVT-975
12 Volt DC powered remote controlled VHS Video Cassette Player AVP-7000
Installation Instructions
Audiovox Specialized Applications, LLC
23319 Cooper Drive
Elkhart IN 46514
1 (219) 264-3135
www.audiovox.com
Page 1 of 10
P/N 8007132
REV. B BJ
Advertisement
Related Manuals for ASA Electronics K-9
Summary of Contents for ASA Electronics K-9
- Page 1 ASA Electronics TV/VCP Floor Console Model K-9 With out Harness and Antenna 12 Volt DC powered remote controlled 9” television AVT-975 12 Volt DC powered remote controlled VHS Video Cassette Player AVP-7000 Installation Instructions Audiovox Specialized Applications, LLC 23319 Cooper Drive...
- Page 2 This manual contains specific instructions on how to install this automotive TV/VCP floor console. Please read this manual thoroughly before installing the console into the vehicle. **WARNING** In order to maintain a safe mounting system, this console MUST be secured to the floor of the vehicle according to the instructions contained in this manual.
- Page 3 There are six (6) steps to install the K-9 TV/VCP floor console: Step # 1 Remove face of the console Step # 2 Install brackets and the straps Step # 3 Install console to the floor of the vehicle Step # 4...
- Page 4 Step #2 Install brackets and straps 1) Mount brackets using four screws. Do not use center hole. 2) Use soldering iron, if necessary, to melt holes in open strap, as shown. 3) Use soldering iron, if necessary, to melt holes in closed strap, as shown. P/N 8007132 Page 4 of 10 Rev.
- Page 5 3) Pre-drill 1/8” pilot holes on bottom TV shelf for strap. P/N 8007132 Page 5 of 10 Rev. B...
- Page 6 1) Attach both straps and customer-supplied harness, securing harness as needed. P/N 8007132 Page 6 of 10 Rev. B...
- Page 7 Step #3 INSTALL CONSOLE TO FLOOR OF VEHICLE BEFORE DRILLING ANY HOLES VERIFY THAT DRILL BIT WILL NOT ENTER INTO FRAME RAIL(S) OF VEHICLE, ELECTRICAL WIRES, FUEL LINES, BRAKE LINES, HOSES, EXHAUST SYSTEMS OR ANY OTHER ITEMS THAT WILL IMPAIR OPERATION OF VEHICLE. THE BOLTS OF THE FLOOR CONSOLE MUST SECURE TO FLOOR PANEL OF VEHICLE.
- Page 8 STEP #4 INSTALL VCP INTO CONSOLE Remove VCP from box. Connect white RCA connector (customer supplied) from console wiring harness to white audio output jack of VCP. Connect yellow RCA connector (customer supplied) from console wiring harness to yellow audio output jack of VCP. Connect DC power connector (customer supplied) from console to DC power jack of VCP.
- Page 9 STEP #5 INSTALL TV INTO CONSOLE Connect yellow RCA connector (customer supplied) to yellow RCA input jack on rear of television. This is the video connection. Connect white RCA connector (customer supplied) to white RCA input jack on rear of television. This is the audio connection. Connect DC power connector (customer supplied) to rear of television.
- Page 10 STEP #6 REPLACE THE FACE OF THE CONSOLE Place face of console over body of console. Gently tap into place. Install four Phillips screws that hold the face to the body. P/N 8007132 Page 10 of 10 Rev. B...
