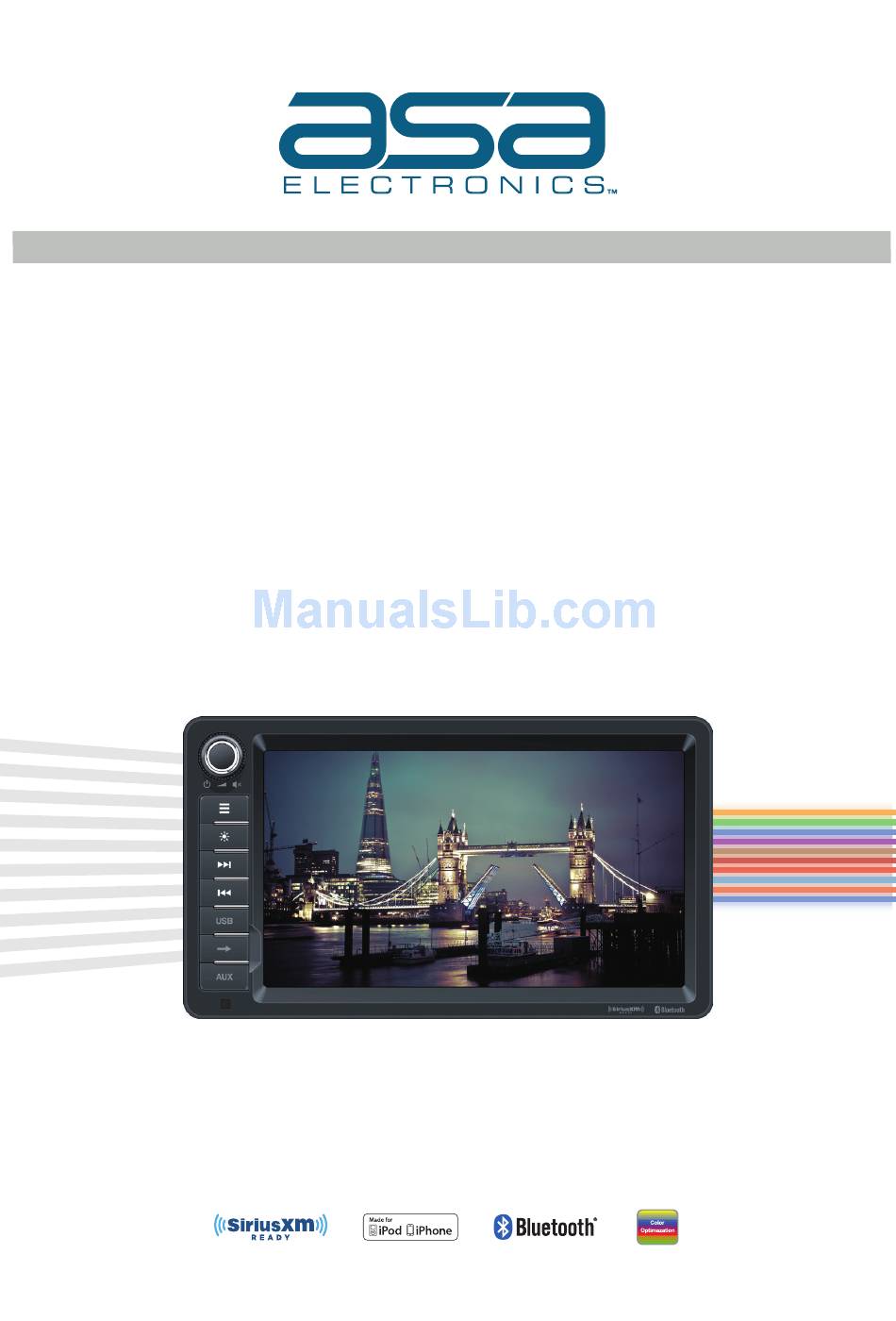

Page 1: Operating Instructions
XRV10 10.1” Double DIN Multimedia Receiver SiriusXM Ready™ / Built-In BT Technology / iPhone® - iPod® / MHL / HDMI / USB / AV In Operating Instructions... -
Page 2: Table Of Contents
XRV10 Contents CONTROLS AND INDICATORS ..............6 QUICK START GUIDE ................8 EQUALIZER CONTROL MENU ..............9 SYSTEM SETTINGS................10 RADIO TUNER OPERATION ..............13 USB OPERATION .................. 15 Bluetooth Mode ................... 19 iPod Mode ................... 21 ® SiriusXM RADIO OPERATION ............. 22 Using a Smartphone via HDMI/MHL ............ -
Page 3: Fcc Statement
XRV10 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. - Page 4 XRV10 Thank you for choosing a ASA product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new unit Multimedia Receiver for maximum enjoyment.
- Page 5 XRV10 WARNING! Never install this unit where operation and viewing could interfere with safe driving conditions. WARNING! To reduce the risk of a traffic accident (except when using for rear view video camera) never use the video display function while driving the vehicle. This is a violation of federal law.
-
Page 6: Controls And Indicators
XRV10 CONTROLS AND INDICATORS OPEN Notice: The graphic in this manual is for reference only, and may be different from the actual unit. Reference to actual unit is suggested. 1. [ ] Knob Rotate to adjust the volume. Press momentarily to activate the MUTE function. Press again to resume normal listening. - Page 7 XRV10 NOTES ON REMOTE CONTROL USAGE • Aim the remote control at the TFT/screen. • R emove the battery from the remote control or insert a battery insulator if the remote control will not be used for a month or longer. • D O NOT store the remote control in direct sunlight or in a high temperature environment, or it may not function properly. • T he battery will last for 6 months under normal conditions. If the remote control does not work, please change the battery. • Use lithium battery type CR2025 (3V) only. • DO NOT recharge, disassemble, heat or expose the battery to fire. • I nsert the battery in the proper direction according to the ( + ) and ( - ) polarity marks.
-
Page 8: Quick Start Guide
XRV10 QUICK START GUIDE Power On / Off Press the [ ] knob on the unit to turn the unit on. The buttons on the front of the unit light up for a moment and the current mode status appears in the LCD. -
Page 9: Equalizer Control Menu
XRV10 EQUALIZER CONTROL MENU The Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer. Select Preset Equalizer 1. -
Page 10: System Settings
XRV10 SYSTEM SETTINGS Display System 1. Touch the upper left corner to display main menu. 2. Touch [ Settings ]. The settings menu is displayed. Adjust General Settings 1. Touch [ General ], if necessary. 2. Touch to highlight a setting. 3. Touch on the option to display/select an option. General settings... -
Page 11: Adjust Language Settings
XRV10 Adjust Time Settings 1. Touch [ Time ]. 2. Touch an option repeatedly to select: Time settings Options Description Touch [ ] or [ ] to set year, month and day. Press and hold for rapid Date Y/M/D adjustment Touch [12Hr] or [24Hr] to switch clock mode. -
Page 12: Adjust Volume Settings
XRV10 Adjust Volume Settings You can set different volume for different modes. 1. Touch [Volume]. The volume setting sub-menu is displayed. 2. Touch to select a source. 3. Select a value from 00 to 06. When switching to the source, the volume increases automatically. 4. Touch top left of the screen to exit. -
Page 13: Radio Tuner Operation
XRV10 RADIO TUNER OPERATION Tuner TFT Display 1. Return to home menu. 2. Preset stations list. 3. S how/Hide the next line of options menu. 4. Seek backward Tune backward(long press) 5. Auto searching. 6. Seek forward Tune forward(long press) 7. Band switch. 8. S how RDS options 9. -
Page 14: Tune To A Preset Station
XRV10 Method 2: 1. Touch the numeric keypad icon [ Direct Entry ]. Numeric keyboard is displayed, touch numbers to input frequency. 2. Touch [ ] to delete the input numbers step by step. 3. Touch [ OK ] to enter. Preset Station The unit has 5 bands, such as FM1, FM2, FM3, AM1, AM2, and each band can store 6 stations; hence the unit can store 30 stations in total. -
Page 15: Usb Operation
XRV10 USB OPERATION Connecting the USB Device 1. Open the USB door. 2. Connect an USB device into the USB connector. Play starts automatically. NOTES: 1. If there are audio files supported on the USB stick, the system will enter the audio files menu automatically. -
Page 16: Video Playback
XRV10 1. Show/Hide the next line of options menu. 2. Display the folder/file list. 3. S hort press: Previous track. Long press: Fast backward. 4. Pause playback and continue playback. 5. Short press: Next track. Long press: Fast forward. Tap on [ More ] to display additional operating options of the playback menu. - Page 17 XRV10 Briefly touch the screen once to display the playback menu again. The playback menu is shown. 1. Show/Hide the next line of options menu. 2. Enter EQ menu. 3. S hort press: Previous movie. Long press: Fast backward. 4. Pause playback and continue playback. 5. Short press: Next movie. Long press: Fast forward.
- Page 18 XRV10 1. Show/Hide the next line of options menu. 2. Enter EQ menu. 3. P revious image. 4. Pause playback and continue playback. 5. Next image. 6. Display keypad to directly enter the number of the desired title. Tap on [ More ] to display additional operating options of the playback menu.
-
Page 19: Bluetooth Mode
XRV10 Bluetooth Mode You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetooth-enabled device. Pair the Bluetooth-enabled Devices To connect your Bluetooth device to the unit, you need to pair the device to the unit. - Page 20 XRV10 Receive a Call By default, all incoming calls are received automaticaly. 1. If there is an incoming call, the screen will appear “Incoming call...”. 2. You may touch the screen to select [ ] or [ Speak into the Bluetooth microphone.
-
Page 21: Ipod Mode
XRV10 iPod Mode Connect an iPod or iPhone to the unit via an iPod cable. Accessing iPod mode Touch [iPod] on the main menu to enter iPod menu. If [iPod] is not on the current source menu, hold the center of screen and drag left/right to show more icons. -
Page 22: Siriusxm ® Radio Operation
XRV10 ® SiriusXM RADIO OPERATION ® Only SiriusXM brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com. - Page 23 XRV10 Time Display - This indicator displays the time as entered by the user in the Settings Menu. Signal Strength Indicator - As the strength of the satellite radio signal increases, the number of illuminated segments will increase. Program Information: Channel Number - Channel numbers are used to designate the channel along with the channel name and are useful for identifying/loading a channel via the “direct entry”...
-
Page 24: Seek Tuning
XRV10 Scan Icon - Touch to scan all channels starting at channel 1. The tuner will pause for approximately fi e seconds at that channel. Touch scan again to listen to that channel. If scan is not touched, the tuner will automatically seek the next channel. - Page 25 XRV10 Searching for a Channel Search by Channel To search by channel: 1. On the SirusXM® menu page 1, touch the Category/Channel icon (if needed) to select Channel. 2. Touch List to display the Channel Search Screen: 3. Touch on a channel to tune to that channel. Touch the or icon to scroll up or down the list.
-
Page 26: Locking A Channel
XRV10 Locking a Channel To lock an individual channel: 1. On the SirusXM® menu page 2, touch the Lock icon. The following screen appears: 2. Enter your 4-digit password . The following screen appears: 3. Touch an unlocked ( ) icon. The icon is replaced by a lock ( ) icon. -
Page 27: Using A Smartphone Via Hdmi/Mhl
XRV10 Using a Smartphone via HDMI/MHL What is HDMI/MHL? HDMI (High Definition Multimedia Interface) is a digital interface for audio and video sources. HDMI is a digital replacement for analog video standards. Mobile High-Definition Link (MHL) is an industry standard for a mobile audio video interface that allows consumers to connect mobile phones, tablets, and other portable consumer electronics (CE) devices to high-definition televisions (HDTVs) and mobile multimedia receivers. - Page 28 XRV10 General 1. Some devices (smartphones) may not be compatible with HDMI/MHL connectivity. 2. Incoming calls or messages may pause media output. Media will resume after the call or message. 3. S imultaneously running multiple apps on your smartphone while screen sharing places heavy demand on the smartphone, potentially affecting its performance. Close unused apps on your smartphone to enhance the screen sharing feature of the unit.
-
Page 29: Camera Operation
XRV10 CAMERA OPERATION Enter Camera Mode Connect the cameras to the unit using the CAMERA 1-3 Connection cables at the back of the unit. Enter 2nd page of main menu, press CAMERA to access camera mode. Enter Camera Mode This unit can connect 3 cameras: CAM1, CAM2 and CAM3. Each camera can be triggered seperately and can be set in different trigger priority. There are 3 trigger wires at the back of the unit. If trigger signals are detected on more than one trigger wire, the channel that has the highest priority is triggered first. - Page 30 XRV10 Audio Output and Volume Adjustment In camera mode, if Camera 1 is not triggered, the front audio output will be the from the last audio source played. Rotate the VOL control (1) to adjust the volume of the audio source. When Camera 1 is triggered and the Auto Mic Enable feature is on, the camera 1 video appears on the entire screen and the audio input from the camera is played.
-
Page 31: Swc Ready
XRV10 SWC Ready The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the unit to be compatible with any steering wheel controls. Note: Not all OE steering wheel functions may be supported by the unit. -
Page 32: Other Modes
XRV10 Other Modes Listen to Other Devices You can connect an external audio/video device to the unit. 1. Connect the external device with the AV cable. 2. Touch the upper left corner to display the main menu. Reset 3. Touch [AV-IN1]/[AV-IN2] to access external device. -
Page 33: Troubleshooting
XRV10 Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Unit can not power on Car battery fuse blown. -
Page 34: Care And Maintenance
XRV10 CARE AND MAINTENANCE 1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot. -
Page 35: Specifications
XRV10 Specifications Video Format: NTSC, PAL (auto-detection) Output: 1Vp-p (75-ohm) Input: 1Vp-p (75-ohm) FM Tuner Tuning Range: 87.5MHz - 107.9MHz Mono Sensitivity (-30dB): 9dBf Quieting Sensitivity (-50dB): 15dBf Alternate Channel Selectivity: 70dB Signal to Noise Ratio @ 1 kHz: 58dB Image Rejection: 80dB Stereo Separation @ 1 kHz: >30dB Frequency Response: 30Hz - 15 kHz, -3db AM Tuner Tuning Range: 530 kHz - 1710 kHz Sensitivity (-20dB): 15uV Signal to Noise Ratio @ 1 kHz: 50dB Image Rejection: 60dB Frequency Response: 50Hz - 2 kHz, -3dB Monitor Screen Size: 10.1” (Measured diagonally), 16:9 Widescreen... - Page 36 XRV10 NOTES:...
- Page 37 XRV10 2602 Marina Drive, Elkhart, IN 46514 WWW.ASAELECTRONICS.COM © 2016 Printed in China XRV10 Common Replacement Parts 31914310B Microphone (4M), mating harness PXRV10REM Remote Control 30314310 Wire Harness - Bulk Pack separately for ASA Operation manuals and other material online at:...
