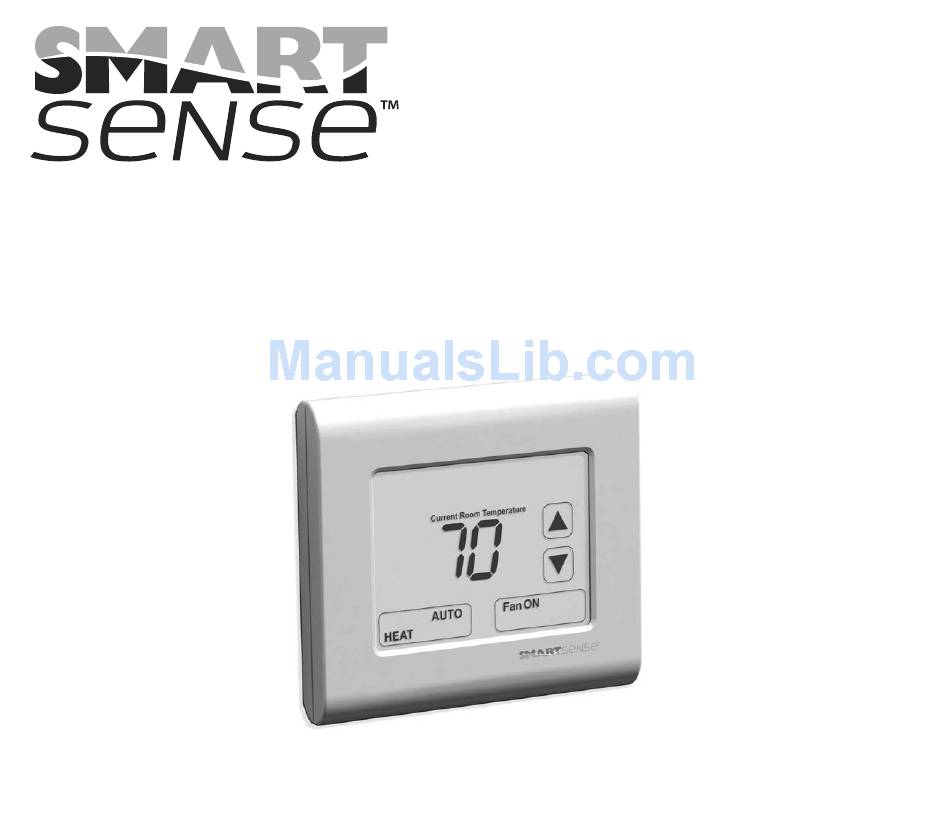

- Page 1 Uni-Line® SMART 3000 Touchscreen Thermostat Owners Manual www.robertshaw.com 7/15 – 352-00197-001 RevB ©2015 Robertshaw...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING: ELECTRICAL SHOCK HAZARD – Turn off power at the main power source by unscrewing fuse or switching circuit breaker to the OFF position before installing, removing, or cleaning this thermostat. WARNING: FIRE AND ELECTRIC SHOCK HAZARD – This device should be installed by a qualified service technician with due regard for safety as improper installation could result in a fire and electric shock hazard. -
Page 3: Table Of Contents
TAbLE OF CONTENTS Thermostat Operation On/Off (Mode) Set Temperature Ventilation Mode Make Up Room and Do Not Disturb Buttons Open Window Switch Door Switch Outside Door Station Warranty... -
Page 4: Thermostat Operation
The SmartSense SMART 3000 thermostat by Uni-Line® is designed for use in residences, hotel rooms and other locations where heating and cooling control is needed. THERMOSTAT OPERATION The SMART 3000 is a simple thermostat to operate. The diagram below shows the buttons you can use to change the settings. Depending on the Installer Menu settings, not all LCD segments may be shown. Press to display text Press to display text on door station. on door station. Press UP or DOWN to Selected will appear. change temperature setting. Press to turn Press to change system ON/OFF. fan speeds. Figure 1... -
Page 5: On/Off (Mode)
On/Off (Mode) Press the On/Off button to turn the thermostat ON or OFF and if permitted to select heat only or cool only mode. The ON/OFF only Mode is set as default. NOTE: If the thermostat is OFF, the thermostat display will turn ON by simply touching it. Set Temperature Adjust the target temperature with the Up or Down button. The range of temperature adjustment may be limited if your installer implemented the Heat and Cool limit settings. Press the Fan button to cycle between auto fan and continuous fan mode. Or, if you have three speeds available, press the Fan button to cycle between low, medium, high and auto fan speeds. Press and hold the Fan button to turn the fan ON continuously. Ventilation Mode If permitted, you can run the indoor fan only (Ventilation Mode) when the SMART 3000 is OFF by pressing the Fan button. Each press of the Fan button will cycle between all available fan speeds. -
Page 6: Make Up Room And Do Not Disturb Buttons
Make Up Room and Do Not Disturb buttons Press these buttons to activate relevant LCD segments and backlight color on the optional outside door station. Open Window Switch If a window is left open, this switch will automatically disable the HVAC system. The text OFF will flash in the LCD to indicate that the remote window (or door switch) is holding the SMART 3000 in OFF mode. The wall controller will prohibit all changes. The SMART 3000 will automatically restart once the window is closed. Door Switch The Door switch is used by the SMART 3000 for two functions: 1. To detect that the door has been opened and then closed to let somebody into or out of the room. 2. -
Page 7: Outside Door Station
Door Left Open. When the door is left open for longer than the pre-set time (0 to 300 seconds), the SMART 3000 will automatically turn OFF. The text OFF will flash in the display to indicate that the remote door (or window switch) is holding the SMART 3000 in OFF mode. The SMART 3000 will automatically restart once the door is closed. Outside Door Station When the SMART 3000 is coupled with the optional SmartSense door station, the guest has the ability to set the room as Do Not Disturb, send a Make Up Room call for housekeeping or be alerted to visiting guests with a pleasant doorbell chime. Hotel staff are informed about the room status or guest’s needs by text information displayed on the door station LCD or the door station backlight colors. Figure 2 Your SMART 3000 thermostat is now operational. It will function as a single setpoint, manual thermostat with a single speed fan. - Page 8 FIVE YEAR LIMITED WARRANTY Robertshaw warrants to the original contract installer, or to the original consumer user, that each new Robertshaw thermostat will be free of defects in materials and workmanship under normal use and service for a period of five (5) years from the date of purchase (the “Warranty Period”). If any Product fails within the applicable Warranty Period, Robertshaw shall, at its option, repair or replace the Product or credit the purchase price, provided the Product is returned to Robertshaw’s facility or designated agent with...
-
Page 9: Warranty
2. Product returned to Company must be packaged in such a manner that will prevent any further damage to the Product during transit. The Warranty terms above shall not apply to any items damaged in transit. 3. An itemized packing slip, including owner's name and address, is required for each shipment to Company of Product(s) to be considered for warranty. The packing slip must contain reason for warranty return, date of installation, date of failure, and a contact name in case further information is required. 4. Within North America (USA and Canada), all cartons must be clearly identified as WARRANTY PRODUCT and returned to: USA Owners: Warranty Department Robertshaw 1921 Anei Circle, B rownsville, TX 78521 USA Canada Owners: Warranty Department Robertshaw 4060 Ridgeway Drive, Unit 14 M ississauga, ON L5L5X9 CANADA... - Page 10 Robertshaw®, Uni-Line® and SmartSense are trademarks of Robertshaw, its subsidiaries and/or affiliated companies. All other brands mentioned may be the trademarks of their respective owners. Customer Service Telephone 1.800.304.6563 Customer Service Facsimile 1.800.426.0804 HVACCustomerService@robertshaw.com For Technical Service www.uni-line.com www.robertshaw.com Telephone 1.800.445.8299 ©2015 Robertshaw Facsimile 1.630.260.7294 07/15 – 352-00197-001 RevB TechnicalService@robertshaw.com...
