R 1
IAS-01 C
2
3
S1 S2 C R RC W W2
1. POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
2. IF MORE THAN ONE REMOTE SENSOR IS REQUIRED, REFER TO
FIGURE 3
3. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT
CABLE.

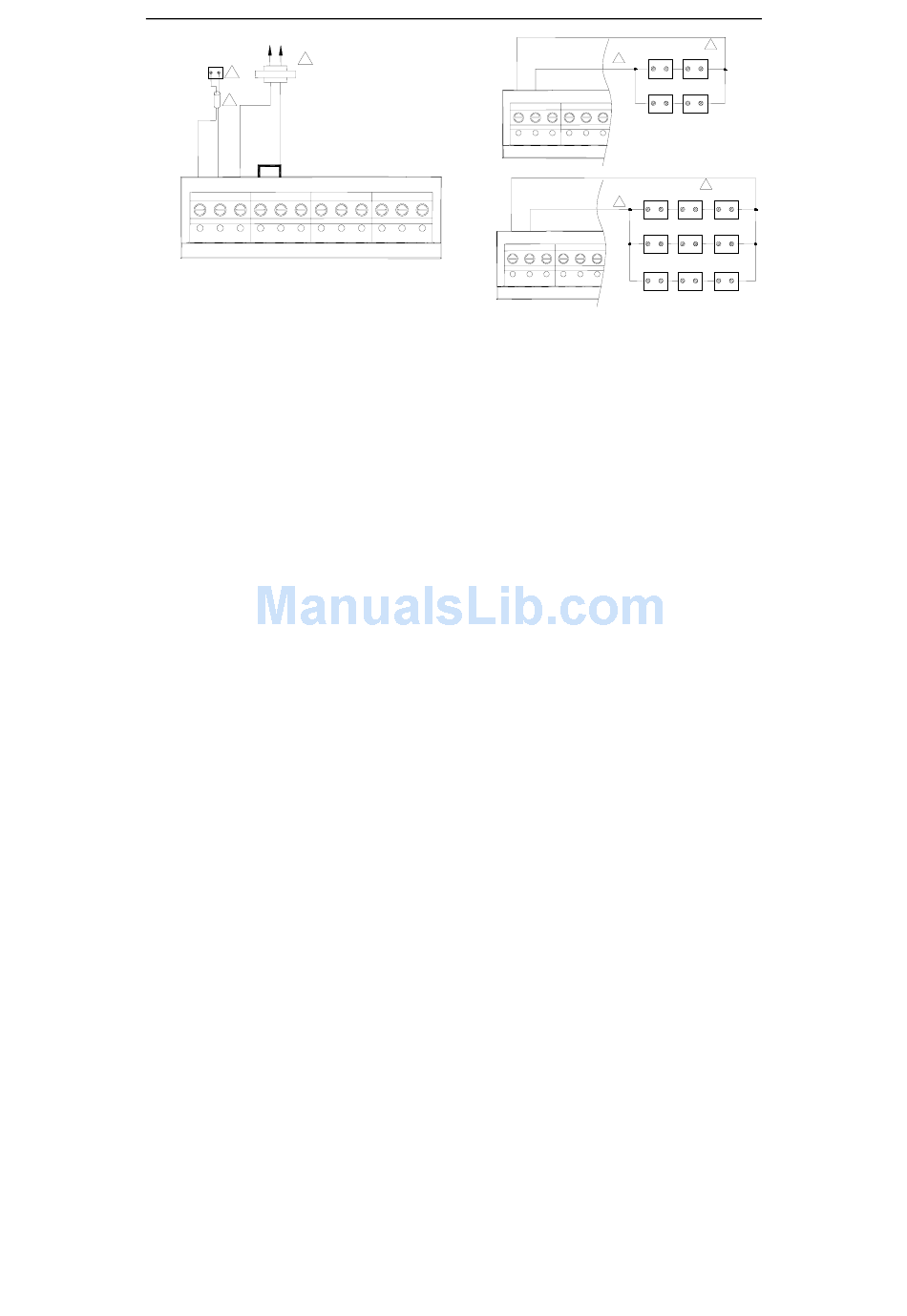

Fig. 28. Wiring a single Indoor Sensor.
EWT-3102 / EWT-3103 Touchscreen Programmable Thermostat
S1 S2 C R RC
Y2 Y G
S1 S2 C R RC
1. SENSORS MUST BE ARRANGED IN THIS CONFIGURATION TO OPERATE
CORRECTLY.
2. WIRES MUST HAVE A CABLE SEPARATE FROM THERMOSTAT CABLE
Fig. 29. Wiring Multiple Sensors.
1
IAS-01
IAS-01
2
IAS-01
IAS-01
1
IAS-01 IAS-01 IAS-01
2
IAS-01 IAS-01 IAS-01
IAS-01 IAS-01 IAS-01
47
