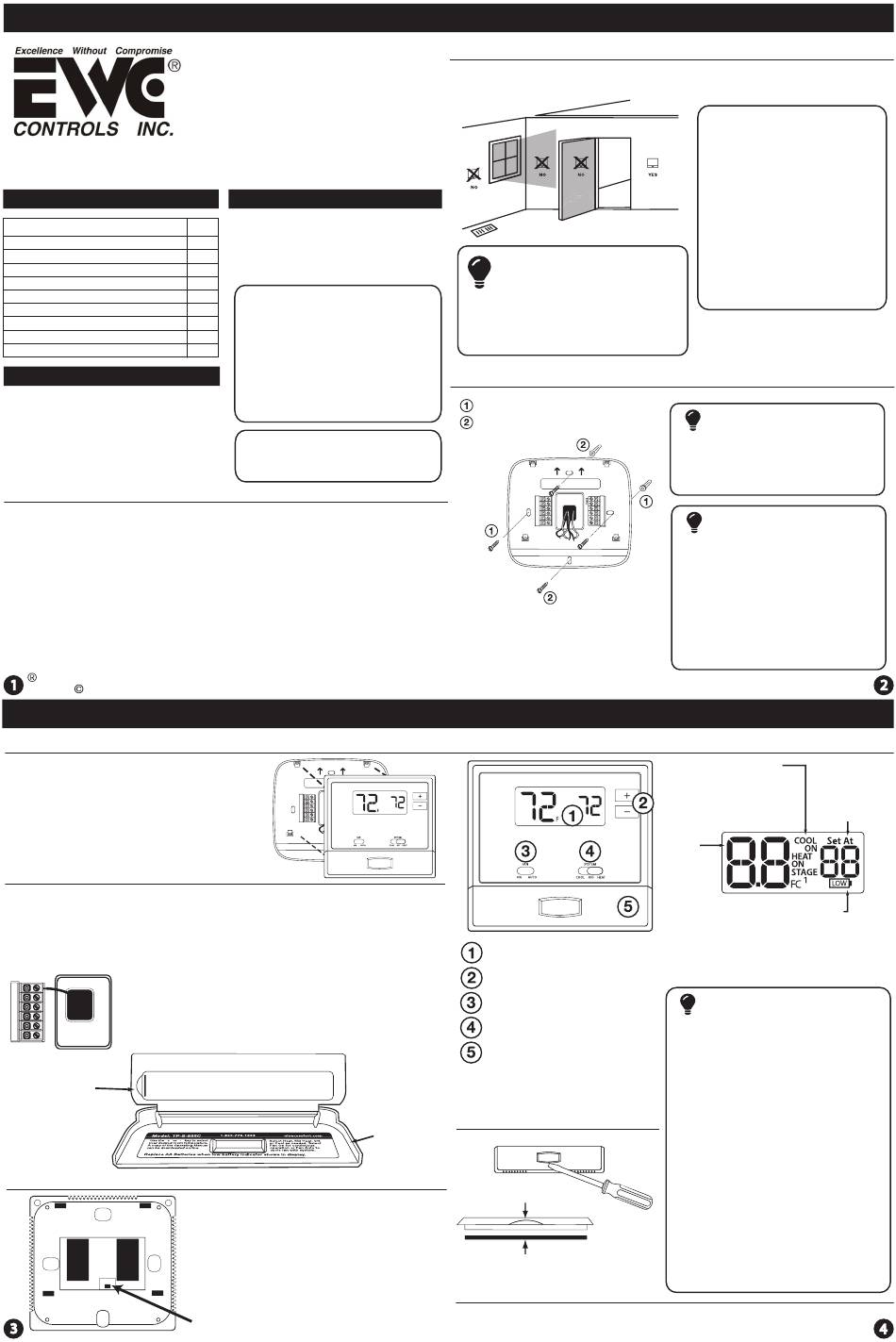

EWC Controls EWT-601-2 Installation Manual

Installation Manual
Thermostat Application Guide
Description
Gas or Oil Heat
Electric Furnace
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (With Aux. or Emergency Heat)
Multi-Stage Systems
Heat Only Systems
Heat Only Systems - Floor or Wall Furnace
Cool Only Systems
Millivolt
Table of Contents
Specifications
Installation Tips
Thermostat Quick Reference
Wiring
Wiring Diagrams
Technician Setup
Specifications
The display range of temperature ... 41˚F to 95˚F (5˚C to 35˚C)
The control range of temperature.... 44˚F to 90˚F (7˚C to 32˚C)
Swing (cycle rate or differential) ...... Heating is adjustable from 0.2˚ to 2.0˚
Power source ...........................................18 to 30 VAC, NEC Class II, 50/60 Hz
Operating ambient ............................... 32˚F to +105˚F (0˚C to +41˚C)
Operating humidity .............................. 90% non-condensing maximum
Dimensions of thermostat ................. 4.7"W x 4.4"H x 0.8"D
U.S. Registered Trademark. Patents pending
Copyright 2018 All Rights Reserved.
Installation Tips
Mount Thermostat
Align the 4 tabs on the subbase with
corresponding slots on the back of the
thermostat, then push gently until the
thermostat snaps in place.
Battery Installation
Battery installation is recommended even if thermostat is hardwired
(C terminal connected). When thermostat is hardwired and batteries
are installed, the thermostat will activate a compressor delay of 5
minutes when the thermostat detects a power outage from the
hardwired power supply.
Important:
High quality alkaline batteries are recommended.
Rechargeable batteries or low quality batteries
do not guarantee a 1-year life span.
Insert 2 AA
Alkaline batteries
(included). High
quality alkaline
batteries are
recommended.
Gas or Electric Setup
EWT-601-2
Power Type
Battery Power
Hardwire (Common Wire)
Yes
Hardwire (Common Wire) with
Yes
Battery Backup
Yes
No
A trained, experienced
No
Yes
technician must install this
Yes
product.
Yes
Carefully read these
Yes
instructions. You could damage
Page
this product or cause a
hazardous condition if you fail
1
to follow these instructions.
2-3
4
5
Una version en español de este
6 manual se puede descargar en
la pagina web de la compañia.
7-8
Cooling is adjustable from 0.2˚ to 2.0˚
for hardwire
Battery power from 2 AA Alkaline
batteries
Gas: For systems that control the fan
during a call for heat, put the fan
operation switch to the GAS position.
Electric: For systems that do not
control the fan during a call for heat,
put the fan operation switch to the
ELECTRIC position.
Fan Operation Switch
Wall Locations
The thermostat should be installed approximately 4 to 5 feet above the
floor. Select an area with average temperature and good air circulation.
Installation Tip
Pick an installation location that is easy for
the user to access. The temperature of the
location should be representative of the
building.
Subbase Installation
UP
Horizontal Mount
Vertical Mount
For vertical mount put one screw on the top
and one screw on the bottom.
For horizontal mount put one screw on the
left and one screw on the right.
Rev. 1841

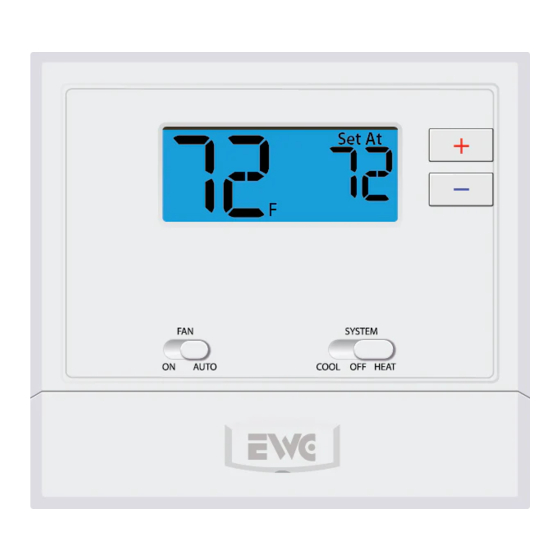

Getting to know your thermostat
Set At
LCD
Temperature setpoint buttons
Fan switch
System switch
Easy change battery door
Simple Removing The Private
operating
Label Badge
instructions
are found
on the back
of the
battery
door.
Use the bevel on lower ridge
Magnet in door
About The Badge
All of our thermostats use the same universal magnetic badge. Visit the
company website to learn more about our free private label program.
Do not install
thermostat in locations:
• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind
the thermostat
• In areas that do not require
conditioning
• Where there are dead spots
or drafts
(in corners or behind doors)
• Where there might be
concealed chimneys or
pipes
Installation Tip:
Electrical Hazard
Failure to disconnect the power before
beginning to install this product can
cause electrical shock or equipment
damage.
Mercury Notice
All of our products are mercury free.
However, if the product you are
replacing contains mercury, dispose of
it properly. Your local waste
management authority can give you
instructions on recycling and proper
disposal or you can mail the
thermostat to the address on the
warranty section for proper disposal.
Thermostat Quick Reference
System Operation
Indicators:
The COOL ON, HEAT ON
icon will display when the
Set At
COOL, HEAT is on.
Indicates
the current
room
temperature.
Low Battery Indicator:
Replace batteries when
indicator is shown.
NOTE: The compressor delay feature is active
if these icons are flashing. The compressor
will not turn on until the 5 minute delay has
elapsed.
Important
The low battery icon is displayed when the AA
battery power is low. Whenever the thermostat
detects low battery voltage from the AA batter-
ies, the low battery icon will begin flashing on
the screen for 21 days (if the batteries are not
changed). If the batteries are not changed 22
days after the thermostat detects low battery
voltage, the thermostat screen will only show
the flashing battery icon until buttons are
pressed. If the batteries are not changed 43
days after the thermostat detects low battery
voltage, the thermostat screen will only
show the flashing battery icon until buttons
are pressed and the set points will offset to
85°F/29°C in cooling and 55°F/13°C in heating.
At this stage, set point changes can be made
temporarily but, the set points will change back
to defaulted values after a 4-hour period. The
thermostat will continue to perform this low
battery flashing, temperature offset condition
until the internal voltage threshold is reached.
When the thermostat internal voltage threshold
is reached, all relays will be opened and the
thermostat will become inoperable until new
batteries are installed.
Installation Tips
Displays the
selected setpoint
temperature.
