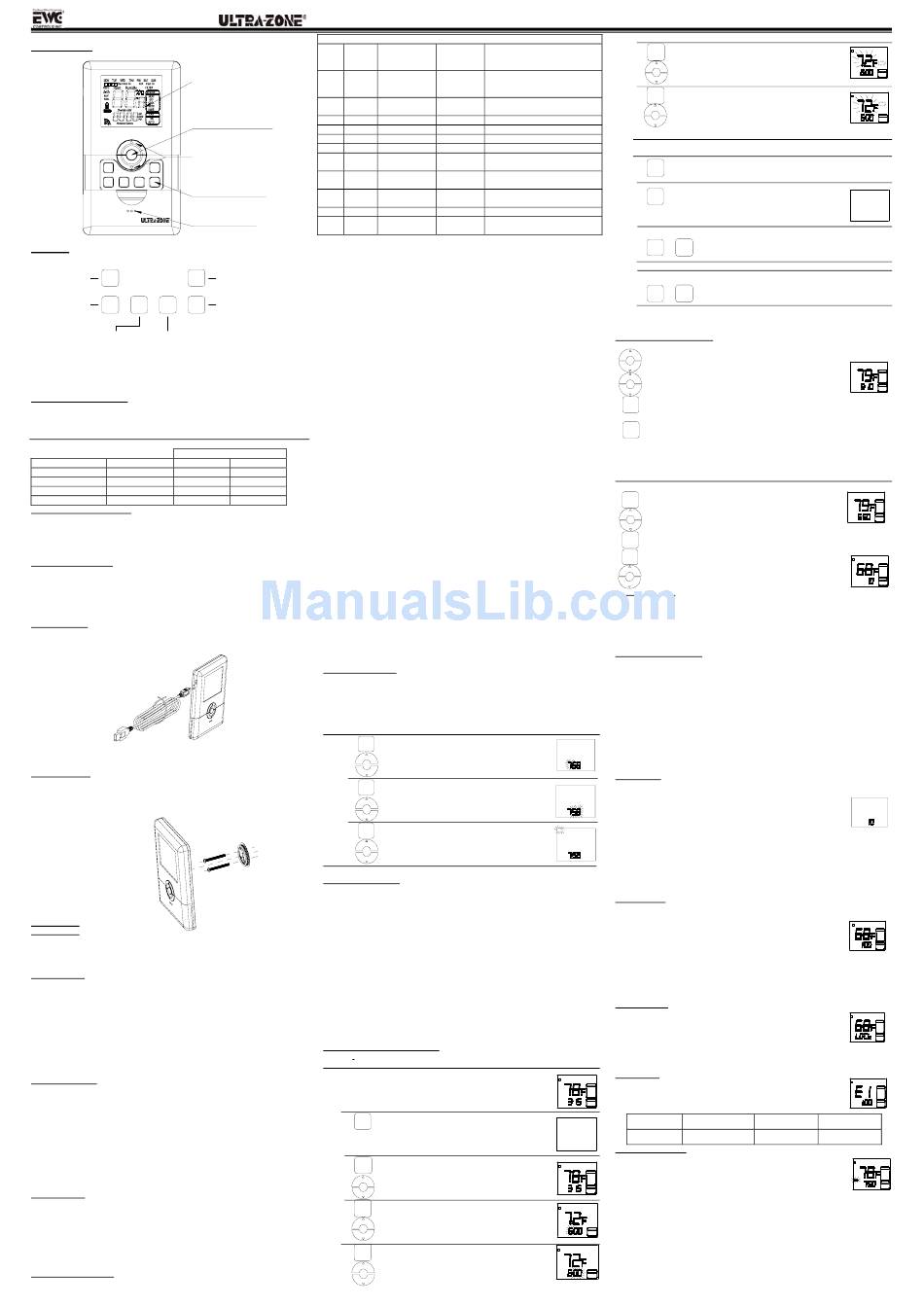

Wireless Thermostat Owners Manual
Model：EWT-3900
LCD Display:Shows
Time,Day,Temperature,
and other feature
information as required.
Reviews filter usage in hours and
minutes.
Also resets filter counter to zero.
Up and Down Key:Key for
changing the Temperature
setting. Also used for increasing
and decreasing selections in the
Time,Program,and Span
functions.
Soft touch programming
and functions buttons (see below)
Front Door: To open or close
the door by pushing it softly
FEATURES
Structure of thermostat and explanation for the keypads
DAY/
For entering
MODE
TIME
day or time.
Enters Program Mode
PROG HOLD
for reviewing and changing
PROG FAN
DAY /RUN
weekday, weekend,or daily
programs.
Selects the day or days
Fan key: For automatic or
to review or change in
continuous fan operation.
Program Mode.
We are pleased you have selected one of our broad line of wall thermostats. Our
products are manufactured to high quality standards and are designed for years of
service.
REMOVE THE MYLAR LABEL FROM THE LCD DISPLAY WINDOW.
ARMCHAIR PROGRAMMING
1. You can program your thermostat prior to installation by following these instructions
and starting at the configuration menu. This can be done while you relax in your favorite
chair and is a very good way to familiarize yourself with all the functions of your
thermostat.
The following time and temperature settings are pre-programmed into the thermostat:
Temperature in ˚F (˚C)
Program Number Time Heat
1 6:00 am 68˚F(20˚C)
2 8:00 am 60˚F(16˚C)
3 4:00 pm 68˚F(20˚C)
4 10:00 pm 60˚F(16˚C)
COMPRESSOR PROTECTION
2. The thermostat provides a 4 minute delay after shutting of the heating or cooling
system before it can be restarted. This feature will prevent damage to your compressor
caused by rapid cycling. Note that this delay also applies to the heating system control.
It does not provide a delay when there are power outages. You can select the function
on or off at the configuration.
TEMPERATURE RANGE
3. This thermostat can be programmed between 45˚F and 95˚F (7˚C and 35˚C).
However, it will display room temperatures from 30˚F to 99˚F (0˚C and 37˚C). "HI" will be
displayed if the temperature is higher than 99˚F (37˚C), and "LO" will be displayed if the
temperature is lower than 30˚F (0˚C).This thermostat will automatically cutoff in Heat
mode if the temperature rises above 95˚F (35˚C), and automatically cutoff in Cool mode
if the temperature drops below 45˚F (7˚C).
POWER SUPPLY
4. The thermostat is supplied with a Li-battery. You can charge the Lithium battery
through a USB cable (included) connected to a PC. During the charge process the
battery icon will flash on and off.
Note: The Lithium battery should be charged over 12 hours for the first 3 times to
properly condition the battery.
INSTALLATION
What You Need
This thermostat includes two #8 slotted screws and two wall anchors for mounting. To
install your thermostat, you should have the following tools and materials.
■ Slotted Screwdriver(s) ■ Small Philips screwdriver
■ Electric drill and 3/16" bit
OPERATION
Fan Operation
If your system does not have a G terminal connection, skip to Heating System.
1. Turn on power to system.
2. Press FAN key to ON mode. The blower should begin to operate.
3. Move FAN key to AUTO mode. The blower should stop immediately
Heating System
1. Press the SYSTEM key until HEAT shows on the LCD display. If the auxiliary heating
system has a standing pilot, be sure to light it.
2. Press to adjust thermostat setting to 2℉（1°C） above room temperature. The
heating system should begin to operate. The display should show "STG1". However, if
the setpoint temperature display is flashing, the compressor lockout feature is operating
(see Configuration menu, item 5).
3. Adjust temperature setting to 4℉（2°C）above room temperature. If your system
configuration is set at MS2, HP2 or HP1, the auxiliary heat system should begin to
operate and the display should show "STG1+2".
4. Press to adjust the thermostat below room temperature. The heating system should
stop operating.
Emergency System
EMER bypasses the Heat Pump to use the heat source wired to terminal E on the
thermostat. EMER is typically used when compressor operation is not desired, or you
prefer back-up heat only.
1. Press the SYSTEM key to select HEAT mode, then press the EMER key. "EMER" will
show on the display.
2. Press to adjust thermostat setting above room temperature. The Aux. heating system
will begin to operate. The display will show "STG1" "EMER" to indicate that the Aux
system is operating.
3. Adjust temperature setting to 4℉（2°C） above room temperature. The auxiliary heat
system should begin to operate and the display should show "STG1+2".
4. Press to adjust the thermostat below room temperature. The Aux. heating system
should stop operating.
Cooling System
1. Press SYSTEM key to select the Cool mode.
2. Press to adjust thermostat setting below room temperature. The blower should come
on immediately on high speed, followed by cold air circulation. The display should show
"STG1".
3. Adjust temperature setting to 4℉（2°C） below room temperature. The second stage
cooling should begin to operate and the display should show "STG1+2"
4. Press to adjust the temperature setting above room temperature. The cooling system
should stop operating.
CONFIGURATION MENU
Step Press Displayed
Button
1 PROG
2 PROG
3 PROG RECO(OF)
4 PROG
5 PROG BLIT(ON)
6 PROG
7 PROG
8 PROG HOUR(12)
9 PROG COHP(OF)
10 PROG
11 PROG
The configuration menu allows you to set certain thermostat operating characteristics to
your system or personal requirements. Set SYSTEM mode to OFF, then simultaneously
press PROG keys to enter configuration menu. The display will show the first item in the
configuration menu. The configuration menu table summarizes the configuration options.
Selects the system mode
An explanation of each option follows. Press the PROG key to change to the next
for Heat and Cool,Auto
menu item. To exit the menu and return to the program operation, press Hold/Run Key. If
heat, Emer,or Off.
no keys are pressed within fifteen Seconds, the thermostat will revert to normal
Provides permanent temperature setting
operation.
by overriding stored programs. It also
returns the thermostat to current program
1)Single Stage, Multi-stage or Heat Pump System Configuration
control from manual override or Home
Today mode. Returns display to current This control can be configured for Heat Pump or two stage heat/one stage cool
time and temperature.
multi-stage operation. The display indicates "STD2" (default for multi-stage mode) in the
display. The Multi-stage configuration can be toggled to "SS1" or "HP1" by pressing the
up or down key. In Multi-stage configuration, EMER mode is useless.
2）This thermostat is configured from the factory to operate a heat/cool, fossil fuel (gas,
oil, etc.), forced air system. It is configured correctly for any system that DOES NOT
require the thermostat to energize the fan on a call for heat. If you system is an electric
heat or heat-pump system that requires the thermostat to turn on the fan on a call for
heat, locate the HE/HG in the menu and SELECT the HE position. This will allow the
thermostat to energize the fan immediately on a call for heat. If you are unsure if the
heating/ cooling system requires the thermostat to control the fan, contact a qualified
heating and air conditioning service person. When the thermostat is configured for Heat
Pump, the thermostat will always power the circulator fan on a call for heat in the HEAT
mode. The HE/HG must be set to match the type of Auxiliary heat your system uses for
proper operation in the EMERGENCY mode.
All wiring diagrams are for typical systems only. Refer to equipment manufacturers'
instructions for specific system wiring information.
Cool
3) Select Energy Management Recovery OFF or ON
78˚F(26˚C)
Your thermostat is set from the factory to gradually recover the room temperature from
85˚F(29˚C)
an energy saving program to your comfort program. Therefore, the thermostat may turn
78˚F(26˚C)
your system on several minutes prior to your programmed start time.
82˚F(28˚C)
4) Fast or Slow Cycle Selection (one stage)
5) Select Backlight function OFF or ON
6) Fast or Slow Cycle Selection (two stage)
7) Select °F or °C Readout. When you change this parameter the thermostat will reset to
it's default settings and you will have to re-program it. Changes the display readout to
Centigrade or Fahrenheit as required
8) Selects time format display 12hours or 24hours
9) Select Compressor Lockout COMP OFF or ON
Selecting COMP ON will cause the thermostat to wait 4 minutes before turning on the
compressor if the heating and cooling system loses power. It will also wait 5 minutes
minimum between cooling and heating cycles. This is intended to help protect the
compressor from short cycling. Some newer compressors already have a time delay
built in and do not require this feature. Your compressor manufacturer can tell you if
the lockout feature is already present in their system. When the thermostat compressor
time delay occurs it will flash the set point for about 4 minutes.
10) This mode is used to set the communication channels. The thermostat and controller
must be re-matched after changing channels.
11) Select "1" to restore factory default settings. This will require the thermostat and
controller to be re-matched.
Setting Time And Day
Remove the mylar label covering the LCD display window before operating thermostat.
■ Initial display after power-up. The temperature will
update after a few seconds.
EXAMPLE: Set the Thermostat to the current time of 9:43 a.m. on
Saturday Refer to Figure below.
■ During time and day setting mode, the temperature
Press
■Press Day/Time key. The current hour and AM or
Step 1
DAY/
TIME PM indicator are flashing.
■Press to change the hour.
Note AM/PM
■Press Day/Time key again. The current min is
Step 2
DAY/
TIME
flashing.
■Press to change the min.
■ Hammer
■Press Day/Time key. The current week is flashing.
Step 3
DAY/
TIME
■Press to change the week.
After 30 seconds, the thermostat will return to normal automatically.
Manual Programming
■ Your thermostat can be programmed for weekdays and weekends, or have unique
programs for all 7 days. Use Weekday / Weekend Programs or 7-day Programming to
enter or revise programs to match your Personal Program Schedule. The same steps
are used when entering programs for the first time, or revising programs entered during
Auto Programming.
■ Familiarize yourself with Manual Programming, so that you can easily modify your
programs as your comfort needs change. The example below demonstrates the Manual
Programming method.
NOTE:
1. The program time can be set in 10-minute increments, and remains the same for both
Heat and Cool programs.
2. The program temperature can be set in increments of 1˚F (1˚C).
3. The Heat setpoint can not be set higher than the Cool set point, and the Cool
set point can not be set lower than the Heat set point.
4. When setting the program time, note the AM/PM indicator.
5. With the Auto Recovery feature enabled, you do not need to set your comfort program
times early. Auto Recovery will determine how early to turn your system on, so that the
room is comfortable at the program time.
Weekday/Weekend Programming
Weekday Programs
Press
■ Normal display of time, temperature,
and day of the week.
■ Selects days Mon to Fri for same set of 4
Step 1
PROG
DAY programs each day.
■ Program indicator(1) is displayed.
Step 2
PROG
■Mon to Fri is displayed.
■The Program hour and AM or PM indicator are
Step 3
PROG
flashing. Press to change the hour.
■ Note AM/PM
■Press again to change to the minute position. The
Step 4
PROG
period minute will be flashing.
■ Press to change the minute
EWC Controls, Inc. 385 HWY 33, Englishtown, NJ 07726 Ph: 732-446-3110 Fx: 732-446-5362
INSTALLER/CONFIGURATION MENU
Press up or Comments
(Factory down key
Default) to select
SS1 SS1, HP2, Selects Single stage, Multi-stage,
HP1 or Heat Pump (Single stage or
2-stage) System Configuration
(FAN)HE HG
Select GAS/ ELECTRIC
(Only can select by STD2 or SS1)
ON Recovery function ON or OFF
(SPAN)2 1,3 Span(one stage)
OF BackLight
(SP2)2 1,3 Span(Two Stage)
(TEMP)F C Selects temperature display ° F
or °C
24 Selects time format display
12hours or 24hours
ON Selects Compressor Lockout
OFF or ON
CANL(1) 1-10 Communication channels
FACT(0) 1 Select 1,all the setting will go
back to factory default
Display Reads
M O N
M O N
M O N
Display Reads
M O N
1
M O N
TUE WED THU FRI
M O N
1
M O N
TUE WED THU FRI
1
Set To
M O N
TUE WED THU FRI
1
Set To
■ Press again to change to the program COOL set
Step 5
PROG
temperature. The period program will be flashing.
■ Press to change the temperature.
■ Note HEAT/COOL
■ Press again to change to the program HEAT set
Step 6
PROG
temperature. The period program will be flashing.
■ Press to change the temperature.
■ Note HEAT/COOL
Weekday program 1 is complete.
Step 7 ■ Press PROG to move to program 2,3, and 4 and follow the same steps.
■ Use to insert or change time and temperature of other programs.
PROG
■Selects weekend days Sat, Sun for same set
PROG
of 4 programs each weekend day.
DAY
■ Follow steps 2-4 to enter programs.
Similar to weekday programming.
PROG
PROG
■ to insert weekend programs.
DAY
Similar to weekday programming.
PROG
■ to insert Individual programs.
PROG
DAY
NOTE: Another approach to programming is to first program all weekdays Mon
through Fri and Sat and Sun as same programs. Then, display and change the
programs of only those days which will have different programs.
Temporary Manual Override
To temporarily change the current set temperature without affecting your program:
■ Press up or down key for less than 1 second to enter Manual
Override mode.
■ Press up or down to change to your desired new temperature.
■ Press to RUN normal mode or wait 20 seconds
for it to return automatically.
■ The current program number will flash to signify the Temporary Override.
HOLD
At the next program change, the Temporary Override is canceled, and the next
/RUN
program temperature becomes the setpoint temperature.
To end the Temporary Manual Override:
HOLD
■ Press HOLD key twice. This will return the set temperature to the current
/RUN
program set temperature.
NOTE: The Auto Season Changeover feature will not operate while the thermostat is
in Temporary Manual Override. Refer to the Auto Season Changeover feature for more
information.
Permanent Override or a Designated Day Override
To hold your Manual Override for vacation or Until a Designated Day.
■ Press to make the current program temperature the HOLD
HOLD
/RUN temperature. HOLD will be displayed on the LCD, and the
Program number will disappear.
■ Follow the Temporary Manual Override instructions
above to change the Permanent Manual Override temperature.
HOLD ■ You can confirm the held set temperature by pressing for less than 1 second.
/RUN
■ Press again. Hold day will be displayed on the LCD and the clock will
DAY/
disappear.
TIME
■ Press Day/Time key to adjust override days.
■ Follow the Permanent Override instructions above to
change the Designated Day Manual Override temperature.
To end Override:
Under Permanent Override press the Hold key twice. Under a Designated Day Override
press the Hold key once. The thermostat will return to the current program, and the
HOLD display will be canceled.
NOTE: The Auto Season Changeover feature will not operate while the thermostat is in
permanent Manual Override. Refer to the Auto Season Changeover feature for more
information.
Auto Season Changeover
When the System Selector is in AUTO position, the thermostat will automatically change
between Heating and Cooling systems, depending on your program. We recommend
keeping your programmed heating and cooling temperature at least 2˚F (2˚C) apart to
allow the Auto Season Changeover to occur when the appropriate temperature span
has been reached. There is a Designated Day Override or Permanent Override.
However, these overrides are not energy saving settings. Auto Season Changeover will
still function in Override mode, as this is a comfort setting.
For example, you may have the following temperatures programmed at a given time:
Heat Set Temp=68˚F, Cool Set Temp=78˚F
If the room temperature rises above 78˚F, then the thermostat will automatically change
to cool mode and turn on the air conditioner.
Likewise, the thermostat will automatically change to heat mode and turn on heat when
the room temperature falls below 68˚F.
PM
Filter Monitor
Your thermostat also keeps a record of the number of days your filter has been in use.
To maximize your system's performance and energy efficiency,
change or clean your filter regularly.
■ When the total fan run time reaches 400 hours, you need clean or
PM
change your system's filter, "FILTER" will continue to display until the
counter is set back to zero.
■ Press to review total filter usage. "Filter" displays.
Then show the filter Monitor counter. After 20 seconds, the display will return to normal
mode, or you can hit RUN to exit immediately.
PM
The Filter Monitor will display up to 100 Days of usage. In this example, the counter is at
10 Days.
■ To reset the Filter Monitor counter, depress FILTER for 3 seconds when the filter
monitor day shows. The display will blink, and the counter will be reset to zero.
Auto Recovery
Auto Recovery calculates how early to turn your system back on, so that the room
temperature is already comfortable by the start of the comfort
temperature program period. Auto Recovery works in both Heat
and Cool modes.
■When the thermostat is in Auto Recovery mode, the display will
alternate "RECO" with time, and the program indicator will flash.
■Auto Recovery can be disabled by menu setting.
■Auto Recovery will not operate if Permanent hold or Temporary hold is in operation.
■Auto Recovery can be canceled manually if HOLD is pressed during the recovery
process.
■Auto Recovery will be canceled and change to the next period.
Keyboard lock
The keyboard can be locked to prevent unauthorized changes to the
thermostat.
To lock or unlock the keyboard, press and hold the Run key for 3
seconds. The keyboard is locked. when LOCK appears on the
display.
■ All keys are locked. Any time a key is pressed, LOCK will appear on the display for 1
second.
Error Mode
If the thermostat is unable to control your system due to an
SYSTEM
unexpected problem, the thermostat will enter Error Mode. In this
OFF
condition, the thermostat flashes "E1","E2" on the LCD display, and
AM FAN
PM
AUTO
shuts off your system..
LCD display information
E1 Sensor Error
Low Battery Warning
Your thermostat has a battery warning system. When the batteries are first
detected to be weak, the first stage low battery warning is indicated by
SYSTEM
battery symbol flashing on the LCD display. At your earliest convenience,
OFF
you need to charge the batteries through USB. During the charging
AM FAN
PM process the battery icon will flash one by one. When the battery charge
AUTO
completes, the battery icon will disappear.
COOL
AUTO
FAN
PM
AUTO
COOL
AUTO
FAN
PM
AUTO
M O N
TUE WED THU FRI
1
Set To
COOL
FAN
PM
AUTO
M O N
TUE WED THU FRI
1
Set To
HEAT
FAN
PM
AUTO
SAT SUN
SAT SUN
SYSTEM
HEAT
AM FAN
AUTO
Permanent Overri de
THU
SYSTEM
HEAT
FAN
PM
AUTO
Permanent Overr ide
SAT SUN
1
SYSTEM
COOL
Override Until
FAN
DAYS
AUTO
FILTER
DAYS
M O N
2
Room
RECO
SYSTEM
HEAT
AUTO
FAN
PM
AUTO
M O N
1
Room
SYSTEM
HEAT
AUTO
FAN
AUTO
M O N
1
SYSTEM
HEAT
FAN
PM
AUTO
LCD display information
E2 System switch Error
M O N
1
Room
SYSTEM
OFF
FAN
ON
PM
