Summary of Contents for i3TOUCH P5510

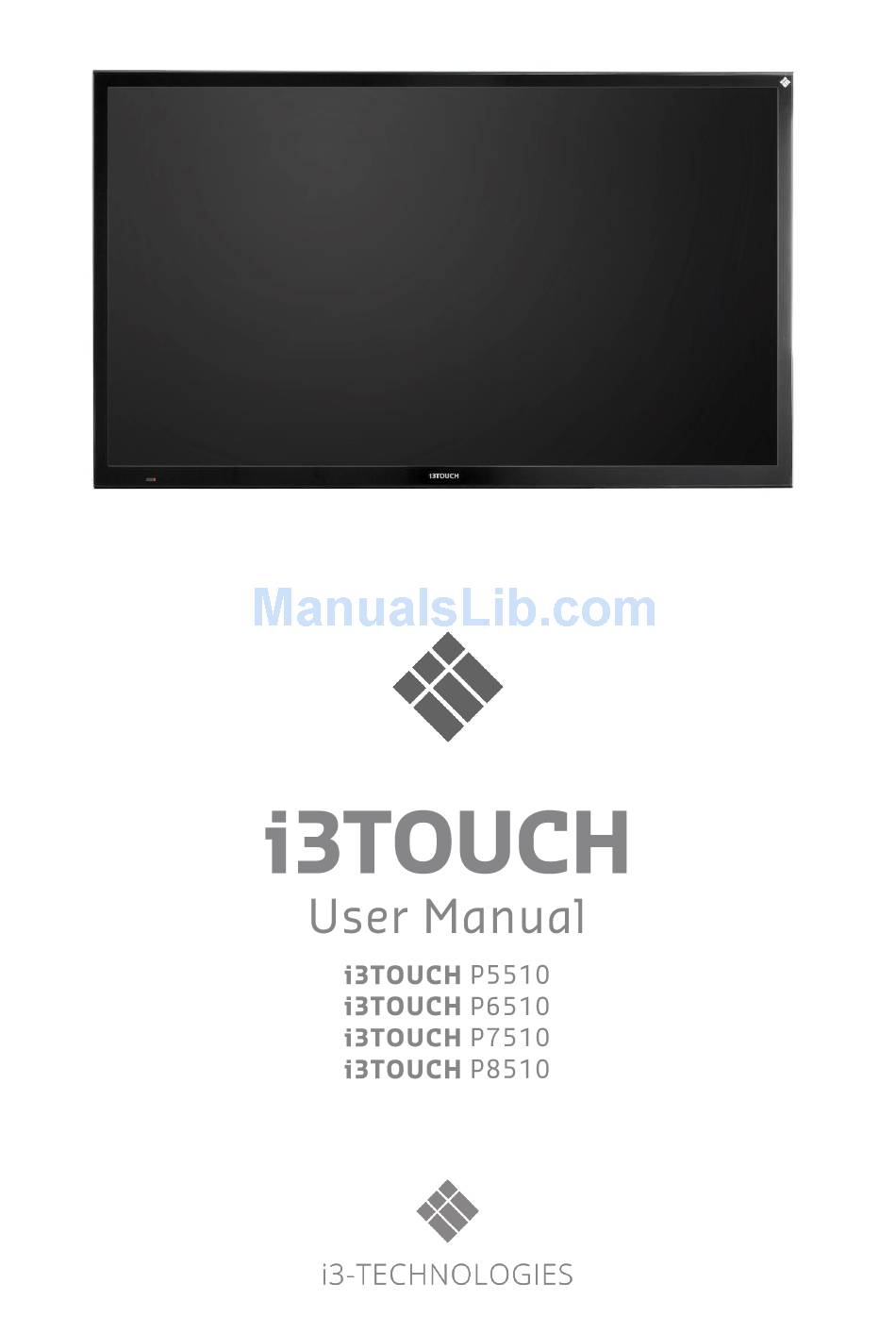

  • Page 1 www.i3-technologies.com...

  • Page 2: Important Safety Information

    Intended Use The i3TOUCH units were designed as an interactive touch display, and should only be used as such, as this product has considered the personal safety factors in its design, and has been tested thoroughly on safety, quality, and performance before delivery.
  • Page 3 Important Safety Information WARNING – Electric Safety Follow all precautions to prevent electric shocks or fire, which could cause serious injury or death. Do not use a damaged power cord or plug, or a loose power socket. Contact an electrician if you notice any damages to the wall socket, or the power supply cord.
  • Page 4 Important Safety Information WARNING – Installation Follow all precautions to ensure a safe installation process, and the later use of the product. Always have an experienced technician install the wall mount of the display. Installation by unqualified personnel may result in injury of the installer or user. Do not install the product in poorly ventilated spaces, such as cabinets or closet.

  • Page 5: Warning - Operation

    Important Safety Information Do not place the product face down. The glass of the display may become damaged. Make sure that the product is always property supported and secured, to prevent the product from falling. When installing on a table-mount, make sure that the product is not placed near the edges, where it may fall. Installing the product in an unusual place (exposed to fine particles, chemical substances, extreme temperatures, or a public place where the product should operate continuously for a really long period), may seriously affect its performance.
  • Page 6 Important Safety Information Do not use or keep combustible sprays or inflammable substances near the product. An explosion or fire may result. CAUTION – Operation Follow all precautions to ensure a safe use of the product, and prevent product or property damages. Leaving the screen fixed on a stationary image for an extended period of time may cause image burn-in or defective pixels.

  • Page 7: Remove Packaging Materials

    Remove the styrofoam and plastic bag from the product. Storage Store the packaging of the i3TOUCH in a dry location, so that the packaging can be used to move or relocate the product in the future. Verify contents...

  • Page 8: Product Overview

    Product Overview Dimensions (The following dimensions are not necessarily to scale. Some dimensions are subject to change without notice. Refer to the dimensions on product sheets prior to installing the product.) (Unit: mm) VESA hole Model Name (AxB) 1280.0 781.0 1212.0 683.0 400x400...

  • Page 9: Main Features

    Product Overview Main Features Display Technology The i3TOUCH Premium series displays consists of a (LED/TFT) LCD panel and microprocessor-controlled main board. It is designed to meet the demanding and rigid performance requirements of education, schools, public premise, corporate and industrial applications.

  • Page 10: Side Ports

    Product Overview I/O Interface The touch display’s input and output connectors are located at the rear, on the left side and bottom of the display. They are shown in the images below and described in the following paragraphs. Please note that connectors may vary in some derivate models.

  • Page 11: Installation

    Mounting Lift the i3TOUCH display, and hook the hanging profiles behind the wall brackets. Before letting go, verify that the hanging profiles are properly hooked on the two (!) protruding edges of the wall bracket.

  • Page 12: Signal Connection

    Plug one end of the signal cable into the correct input on the i3TOUCH display, and the other end to the correct output on the source device. Check and compare all image settings on the source device with the compatibility of the i3TOUCH display requirements.

  • Page 13: Display Features

    Display Features i3TOUCH Home The i3TOUCH home page offers quick accessible source switching between the main video sources, and also the i3NOTES application for fast whiteboarding and note-taking actions. Press the desired button on the Home Screen to perform its action.

  • Page 14: Display Settings

    Display Settings Device Settings Open the device settings from the i3TOUCH Home Page with the Settings button on the bottom right of the screen. Common functions, network and equipment options, storage settings, language & input settings and date & time setting can be altered here.

  • Page 15: Signal Source Selection

    Display Settings Signal Source Selection Open the Signal Source Selection Menu on the Pull-up Bar, and quickly switch between input sources at any time. A green indicator will show the signal sources that are active, and can be switched Display Setting (Picture, sound, and additional settings) Open the Display Settings on the Pull-up Bar, to access the display settings, applicable for picture, sound and main settings of the input signals.

  • Page 16: Communication Parameters

    RS232 Protocol Communication Parameters Set Sleep Timer (30 min) Communication system RS232C Set Sleep Timer Synchronous Asynchronous (60 min) communication Set Sleep Timer Baud rate 38400 bps (90 min) Character length 8 bit Parity None Set Sleep Timer (120 min) Start bit 1 bit Stop bit...
  • Page 17 Set Brightness 40 Set BASS 70 Set Brightness 50 Set BASS 80 Set Brightness 60 Set BASS 90 Set Brightness 70 Set BASS 100 Set Brightness 80 Set Treble 0 Set Brightness 90 Set Treble 10 Set Brightness 100 Set Treble 20 Set Saturation 0 Set Treble 30 Set Saturation 10...

  • Page 18: Troubleshooting

    If the screen remains blank while the power LED blinks, even when the product is correctly connected to a video source device, try to reset the product. Power off, both the i3TOUCH display, and the video source device.  Disconnect all cables from the i3TOUCH input and output ports.

  • Page 19: Screen Problems

    Screen Problems The power LED is off. The screen will not switch on. Make sure that the power cord is connected. Check that the product is connected correctly with a cable "No Signal" is displayed on the screen Check that the device connected to the product is powered on.
  • Page 20 The product was designed with personal safety in high regard, but the general safety precautions should always be followed for a safe use of the product. All i3TOUCH displays follow the ISO standard ISO 13406-2 Class II Discover more i3 products on www.i3-technologies.com...
  • Page 21 Supplement Supported video resolutions and frequencies This monitor is designed to meet following VESA standard resolution and timing per two different types of panels native resolution. VGA Timing HDMI DP Timing 640x480 60Hz 720x480i 60Hz 800x600 60Hz 720x480p 60Hz 1024x768 60Hz 1280x720p 60Hz...
  • Page 22 NOTES Discover more i3 products on www.i3-technologies.com...
  • Page 23 NOTES – User Manual...
  • Page 24 AUTHORIZED DISTRIBUTOR www.i3-technologies.com...

This manual is also suitable for:

P6510P8510P7510
