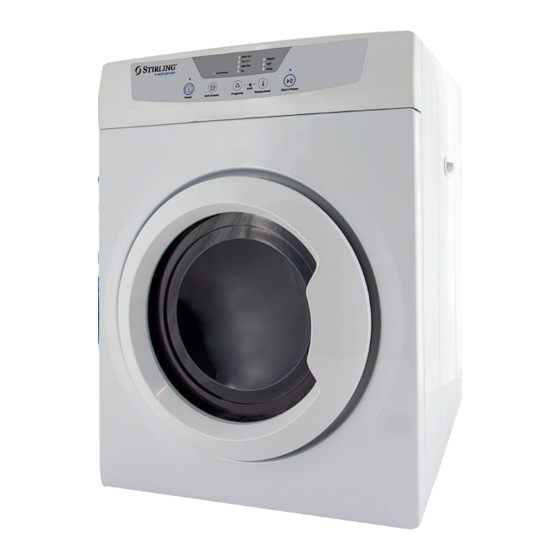

- Page 1 6.5kg Clothes Dryer Model Number GYJ70-78F3E INSTRUCTION MANUAL IM Version No: V1.4 Issue Date: 16 December 2014 AFTER SALES SUPPORT info@tempo.org N13275 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
-
Page 2: Welcome
Welcome ® Congratulations on choosing to buy a STIRLING product. ® All products brought to you by STIRLING are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. We hope you will enjoy using your purchase for many years to come. -
Page 3: Table Of Contents
Contents Welcome Warranty Details General Safety Instructions Product Overview Getting Started: Installation Instructions FAQs Other Useful Information Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... -
Page 4: Warranty Details
YEAR IN HOME WARRANTY AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... -
Page 5: General Safety Instructions
Do not use it outdoors. Do not use it for anything other than its intended purpose (drying domestic quantities of washing), and only use it as described in this manual. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... - Page 6 We assume no liability for any eventual damages caused by improper use or handling, or by any other noncompliance with the instructions in this manual. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
- Page 7 Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
-
Page 8: Product Overview
Window Back view Control panel Door gasket Stainless steel drum Exhaust connector 4 Wall-mounting notches (on both sides, at the top and bottom of the back panel) AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... - Page 9 Control panel Wall-mounting kit Parts of the Wall-Mounting Kit Part Illustration Quantity Hanging brackets Spacers Exhaust Connector 12mm Screws 25mm Screws 16mm Screws Additional Printed Control Panel AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
-
Page 10: Getting Started: Installation
10cm between the dryer and any wall. Use the adjustable legs to assist in levelling the dryer, if necessary. When the dryer is level, tighten the legs. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... - Page 11 (Fig. 3). 3. Remove the four legs from the dryer (Fig. 3). 4. The dryer is now ready for upside down use (Fig. 4). Fig. 3 Fig. 4 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
- Page 12 * Phillips head screw driver * 4 Timber screws (ø12x50mm) * Helper to help lift the dryer onto the wall. • Wall-mounting instructions follow on the next pages. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
- Page 13 (Fig. 8). Use the three 16mm screws to fix the connector firmly in place. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
- Page 14 (Fig. 10). Once the clothes dryer is properly installed, plug the electrical cord into an appropriately earthed three pin 240V wall socket. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
-
Page 15: Instructions
When closing the dryer door prior to starting the unit, ensure that items are not jammed in the door. • Do not add items into the dryer while it is operating. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... - Page 16 • 1 hour: The drying time for this program is 60 minutes. CAUTION: HOT SURFACE! Do not touch the air intake during a drying cycle: it will be hot. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
- Page 17 Never stop the clothes dryer before the end of the drying cycle, unless you remove all items quickly and spread them out so that the heat is dissipated. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
-
Page 18: Faqs
Set a drying program and Have you selected a drying program and temperature? temperature. Switch on power at the wall Is the power switched on at the wall socket. socket? AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... -
Page 19: Other Useful Information
It should audibly click into place. Fig. 13 NOTE: The fixed metal grid fixed at the rear of the drum should also be cleaned with a soft cloth or brush. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... - Page 20 • If cleaning the drum has left any residues on the drum, make sure to remove it before drying the next load. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
-
Page 21: Spare Parts
Other Useful Information (Cont.) Spare parts The following spare parts for the GYJ70-78F3E 6.5kg Clothes Dryer are available for purchase from our after sales support centre. • Air exhaust: thermal breaker, connector, sealing sponge • Air inlet: cover, filter •... -
Page 22: Technical Specifications
Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling. Contact your local authorities for advice on recycling facilities in your area. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... -
Page 23: Repair And Refurbished Goods Or Parts Notice
Telephone: 1300 886 649 (Aust) - Fax: (02) 9975 2688 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Fri 08:30am to 06:00pm EST) Email: info@tempo.org YEAR IN HOME WARRANTY AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015... -
Page 24: Warranty Returns
V1.1 10 November 2014 Minor updates V1.2 24 November 2014 Compliance updates V1.3 10 December 2014 Compliance updates V1.4 16 December 2014 Updated wall mount kit contents AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: GYJ70-78F3E PRODUCT CODE: 48141 06/2015...
