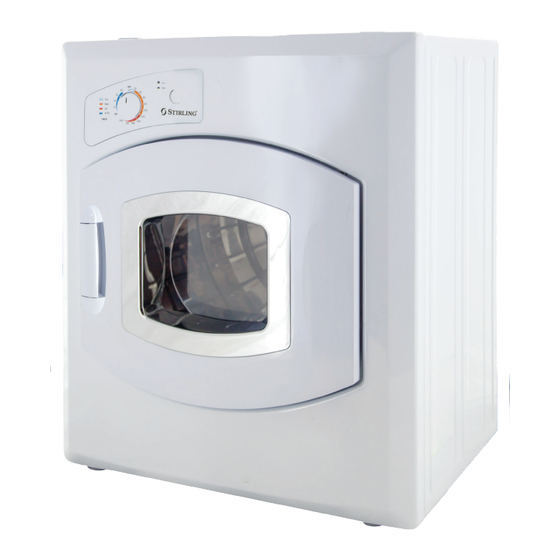

- Page 1 4kg Clothes Dryer Model Number GYJ40-88 INSTRUCTION MANUAL After Sales Support Telephone: 1300 886 649 N13275 Email: info@tempoaustralia.com.au...
-
Page 2: Table Of Contents
Contents Warranty Details Welcome General Safety Instructions Product Overview Getting Started: Installation Instructions Other Useful Information After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au... -
Page 3: Warranty Details
4kg Clothes Dryer Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 4: Welcome
Welcome ® Congratulations on choosing to buy a STIRLING product. ® All products brought to you by STIRLING are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. We hope you will enjoy using your purchase for many years to come. -
Page 5: General Safety Instructions
General Safety Instructions Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card and purchase receipt. - Page 6 General Safety Instructions (Cont.) • Usage restriction: The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 7 General Safety Instructions (Cont.) CAUTION! The items listed below are UNSUITABLE for clothes drying. They can cause fire in the clothes dryer or extensive damage. DO NOT place the following items into the clothes dryer. Items containing foam rubber (also known as latex foam) or similarly textured rubber-like materials —...
-
Page 8: Product Overview
Product Overview High Door Window Door gasket Drum Heat selector button Program selector/timer dial High After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au... - Page 9 Product Overview (Cont.) High Air intake filter Air intake shroud Exhaust vent After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
-
Page 10: Getting Started: Installation
Getting Started: Installation Unpacking • Unpack the appliance but keep all packaging materials until you have made sure your new clothes dryer is undamaged and in good working order. Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach. - Page 11 Getting Started: Installation (Cont.) Upside down installation The dryer can be installed upside down (either on the floor or on the wall), if this suits your setup better. To install it upside down, proceed as follows: Remove the rubber plugs on the top of the unit (see Fig. 1). Then remove the four legs from the bottom (see Fig.
- Page 12 Getting Started: Installation (Cont.) Wall-mounted installation • This dryer is not suitable for direct placement on top of a washing machine. If mounting above a washing machine, allow sufficient room to open the lid of the washer. • If you want to mount this dryer directly to your laundry wall, use the supplied wall-mounting kit which contains the following parts: Wall-Mounting Kit Includes Hanging brackets...
- Page 13 Getting Started: Installation (Cont.) Step-by-step wall-mounting instructions When mounting the clothes dryer to a plasterboard wall, make sure to attach the wall-mounting bracket securely to a timber stud. If if the space between two studs is too wide, fit a timber slat between the studs to mount the brackets securely onto the studs (see Fig.
- Page 14 Getting Started: Installation (Cont.) Use the four 12mm screws to attach the two spacers (see Fig. 9, below). Fig. 9 With assistance, mount the clothes Fig. 10 dryer onto the wall bracket (see Fig. 10, right). Once the clothes dryer is properly installed, plug the electrical cord into an appropriately earthed three pin 240V wall socket.
-
Page 15: Instructions
Instructions CAUTION! Make sure you read all safety precautions in this manual and are aware of the items (listed on page 5) that cause a hazard if placed in the clothes dryer. Loading the dryer • Prior to loading the dryer, check that none of your items have the following symbols anywhere on them. - Page 16 Instructions (Cont.) The control panel at the front of the clothes dryer consists of the Heat Selector and the Drying Program Selector/Timer. 1 Heat selector Select ‘Low’ for delicate items made of silk, polyester, etc. Select ‘High’ for particularly bulky items or large quantities. High 2 Drying program selector/timer Turn the drying program selector/timer in...
- Page 17 Instructions (Cont.) Suggested drying times Drying Capacity Drying Time High Approximately 1kg Approximately 30min. Approximately 55min. Approximately 2kg Approximately 60min. Approximately 110min. Approximately 3kg Approximately 120min. Approximately 4kg Approximately 200min. Drying times can be affected by many factors, such as type of material, bulkiness of the items, how full the dryer is, etc.
-
Page 18: Other Useful Information
Other Useful Information Maintenance To prolong the service life of your clothes dryer, keep it in good condition and clean the filters regularly. CAUTION: Before cleaning or maintenance, unplug the dryer from the wall socket. Cleaning the lint filter The lint filter must be in place whenever drying. It must be cleaned before each use. To remove the filter, insert your fingers into the four holes around the exhaust vent shroud and pull out the filter assembly. - Page 19 Other Useful Information (Cont.) Cleaning the air intake filter • The air intake filter should be cleaned about once a month. • To remove the filter, hold the upper and lower ends of the air intake shroud and pull it outwards, as illustrated below. •...
-
Page 20: Troubleshooting Guide
Other Useful Information (Cont.) Troubleshooting guide If your clothes dryer has a fault, is not working properly, or you think it should work better, use the list below to identify and solve any problems. If you cannot solve the problem, contact our after sales support line. Do not attempt to dismantle or repair the dryer yourself. - Page 21 Other Useful Information (Cont.) Responsible disposal At the end of its working life, do not throw this appliance out with your household rubbish. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling.
- Page 22 After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
- Page 23 After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
- Page 24 4kg Clothes Dryer Repair and Refurbished Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of...
