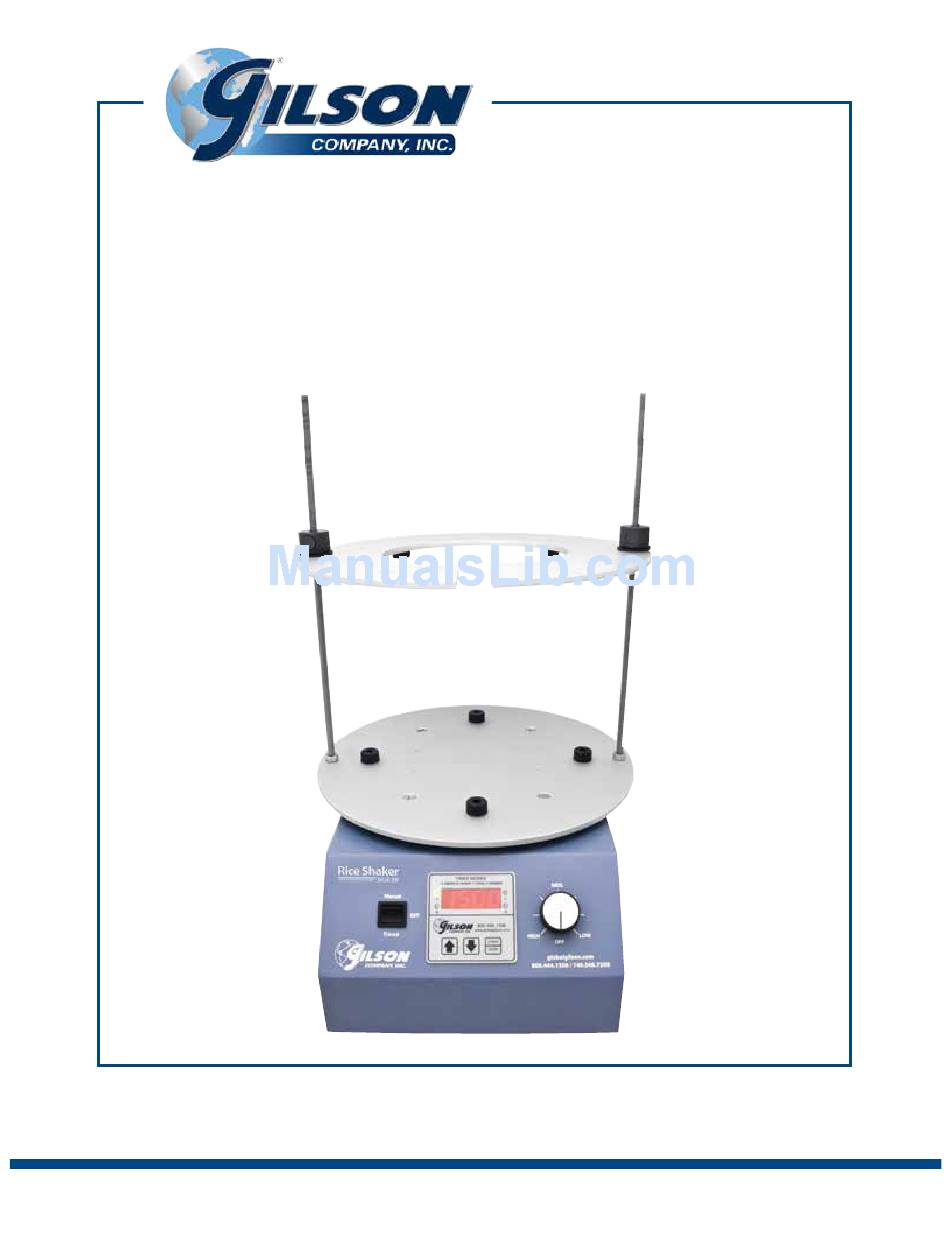

- Page 1 OPERATING MANUAL Rice Shaker SGA-5R & SGA-5RT Rev: 10/27/2016 PHONE: 800-444-1508 FAX: P.O. Box 200, Lewis Center, Ohio 43035-0200 800-255-5314 740-548-7298 E-mail: customerservice@gilsonco.com Website: www.globalgilson.com 740-548-5314...
-
Page 2: Safety Instructions
Gilson Company, Inc. Rice Shaker: SGA-5R & SGA-5RT SAFETY INSTRUCTIONS Whether you are the owner, employer, operator, or maintenance person for this machine, safety is your responsibil- ity. You are responsible for operating and maintaining this equipment in compliance with these instructions and for using common sense. -
Page 3: Table Of Contents
Gilson Company, Inc. Rice Shaker: SGA-5R & SGA-5RT Table of Contents Page Safety Instructions Table of Contents Introduction Unpacking & Assembly Set-Up Glass Filter-Flasks Aluminum Pycnometers SG-15 Plastic Pycnometer Operating Instructions Diagrams Figure 1: Glass Filter-Flask Figure 2: Aluminum Pycnometer... -
Page 4: Introduction
9/16in GW-75, and 4L GW-76), Aluminum Pycnometers (Gilson wrench. 2,000g SG-16, and 1,500g SG-17), and the Gilson 6,000g SG-15 Plastic Pycnometer. The EZ Clamp adjustment knobs are preinstalled on the top plate, and the knob buttons are held in place with tape. -
Page 5: Sg-15 Plastic Pycnometer
SGA-7 is placed with the foam side down on top of the pycnometer. Push in the buttons of This unit is equipped with an easy-to-operate Gilson the EZ Clamp knobs and lower the top plate into place, interval count-down timer. -
Page 6: Diagrams
Gilson Company, Inc. Rice Shaker: SGA-5R & SGA-5RT 5.0 PARTS DIAGRAMS: 5.1 Figure 1: Glass Filter-Flask SGA-8 Top Adapter EZ Clamp Knob Top Plate Adjustment Rod SGA-8 Rubber Base Pad Base Plate ON/OFF/Timed Operation Switch Vibration Control Timer/Controller Figure 1... - Page 7 Gilson Company, Inc. Rice Shaker: SGA-5R & SGA-5RT 5.2 Figure 2: Aluminum Pycnometer Adjustment Rod EZ Clamp Knob Top Plate SG-16 or SG-17 Aluminum Pycnometer (No Adapter Required) Base Plate Vibration Control ON/OFF/Timed Operation Switch Timer/Controller Figure 2 Using SG-16 or SG-17 Aluminum Pycnometer...
- Page 8 Gilson Company, Inc. Rice Shaker: SGA-5R & SGA-5RT 5.3 Figure 3: Plastic Pycnometer SGA-7 Upper Adapter Top Plate EZ Clamp Knob SG-15 Plastic Pycnometer Adjustment Rod Base Plate SGA-7 Adapter Ring ON/OFF/Timed Operation Switch Vibration Control Timer/Controller Figure 3 Using SG-15 Plastic Pycnometer...
-
Page 9: Additional Information
RICE SHAKER ASTM D 2041; AASHTO T 209 • Consistent, repeatable agitation for Asphalt Rice other containers. Special SGA-5RT has modified vibration Test and other specific gravity determinations. characteristics to meet the requirements of Texas DOT. • Variable vibration control allows for setting optimum Gilson's exclusive EZ Clamp System quickly secures agitation.
