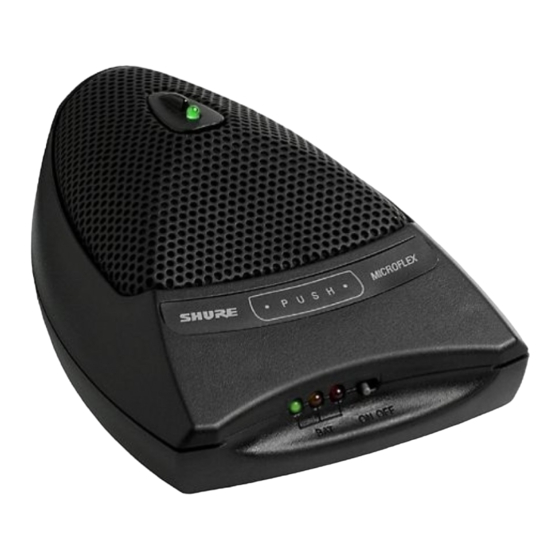

Shure MX692 User Manual

Wireless boundary microphone transmitter
Hide thumbs Also See for MX692:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

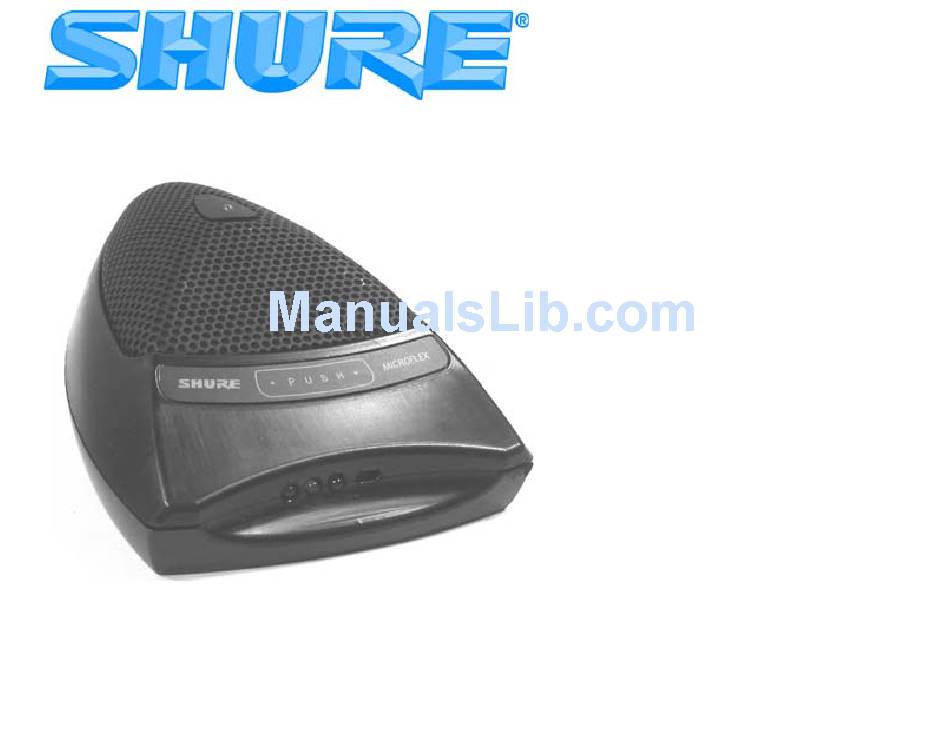

SHURE MX692 WIRELESS BOUNDARY MICROPHONE TRANSMITTER
27A8828 (CE)
©2003 Shure Incorporated
Model MX692
User Guide
• Integrated functionality of Microflex
cardioid cartridge with UC1 UHF
wireless transmitter
• Frequency agile transmitter offers
191 user selectable channels for
both UA and UB country codes
• User programmable touch-sensitive
switch and status LED (4 operational
modes)
• 9V battery-powered with 3-stage
battery life LED indicator
• Thread mount cartridge connection
for easy field replacement
• Internally mounted antenna
• Requires Shure UC4 receiver (sold
separately)
Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX692 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shure MX692

Summary of Contents for Shure MX692

  • Page 1 Model MX692 User Guide SHURE MX692 WIRELESS BOUNDARY MICROPHONE TRANSMITTER • Integrated functionality of Microflex cardioid cartridge with UC1 UHF wireless transmitter • Frequency agile transmitter offers 191 user selectable channels for both UA and UB country codes • User programmable touch-sensitive...
  • Page 2 LANGUAGES Table of Contents: English ....... .3 Contenido: Español ........19 Table des matières : Français .

  • Page 3: Table Of Contents

    TABLE OF CONTENTS: ENGLISH Introduction ..........4 Microphone Components.

  • Page 4: Introduction

    MX392 boundary microphone, the MX692 maintains the MX392’s sleek profile, modern design, and ease of customization. In addition, the MX692 includes a built-in Shure UC wireless transmitter, allowing freedom of microphone placement and movement. Drilling wire exit holes in desks and tabletops is a thing of the past.

  • Page 5: Microphone Components

    MICROPHONE COMPONENTS Microphone Active LED Touch-sensitive switch Touch to mute or activate microphone, depending on logic settings (see page 16) Battery Charge Indicator Green: 2 to 8 Hours Amber: 45 minutes to 2 hours Red: 45 minutes or less Power switch English –...
  • Page 6 GAIN AND CHANNEL SETTINGS To access gain and channel settings, open the battery compartment (see page 7). Input Attenuation Control This two position switch lets you select either 0 dB or -20 dB attenuation, depending on the volume of the speaker’s voice. Use the 0dB position for nor- mal voices.

  • Page 7: Replacing The Battery

    REPLACING THE BATTERY To access the battery compartment, as well as the internal gain and channel settings, turn the microphone over. Unlatch and open the battery compartment door. To remove the battery, simply lift up on the edge opposite the contact points. English –...

  • Page 8: Adjusting The Transmitter Gain Level

    ADJUSTING THE TRANSMITTER GAIN LEVEL The transmitter audio gain level has been factory preset to the mid position. For optimal perfor- mance, adjust the audio gain control on the bottom of the transmitter so that the audio LED meter on the receiver regularly reaches amber and will momentarily flash red during the loudest sounds.

  • Page 9: Notes On Microphone Use

    Do not place laptop computers, open or closed, in front of the microphone during use. • When using multiple wireless systems, use a single group and successive channels. This will avoid interference between systems. • The MX692 wireless microphone/transmitter uses the Shure UC4 wireless receiver. English – 9...

  • Page 10: Positioning The Microphone

    POSITIONING THE MICROPHONE With the standard cardioid cartridge installed, the MX692 will pick up audio at conversational volume levels within 1.5 M (5 ft.) in a 130 degree radius. As a general rule for tables with multiple seats, a single microphone should be used for every two people speaking.

  • Page 11: Positioning Multiple Microphones

    POSITIONING MULTIPLE MICROPHONES In any installation, good vocal amplification can be achieved by following the positioning rules on page For information on receiver setup and positioning, see your UC4 Wireless System user guide. English – 11...

  • Page 12: Positioning Your Receiver

    The receiver may be wall-mounted or used in conjunction with a remote antenna system, such as the Shure UA500. The distance between transmitter and antenna should never be greater than 15 meters (50 feet) or less than 3 meters (10 feet). See your UC4 user manual for additional information on receiver and system setup.

  • Page 13: Removing The Grille

    REMOVING THE GRILLE 1. Open the battery compartment 5. Insert the screwdriver into the opening above the 2. Remove the battery battery compartment 3. Loosen and remove the screw at the base of the battery compartment 6. Press gently on the underside of the microphone grille with the tip of the screwdriver until the grille 4.

  • Page 14: Additional Or Replacement Cartridges

    ADDITIONAL OR REPLACEMENT CARTRIDGES Additional or replacement cartridges may be purchased for the MX692. For more information or to order cartridges, contact the Shure service department or an authorized Shure service center. Omnidirectional Cartridge ..........R183 Supercardioid Cartridge ..........R184 Cardioid Cartridge ............R185 To replace the microphone cartridge: 1.

  • Page 15: The Internal Dip Switches

    THE INTERNAL DIP SWITCHES The behavior of the touch-sensitive switch on the microphone’s front panel (see page 5) can be customized using the internal DIP switches. See page 16 for customization options. English – 15...

  • Page 16: Customizing Microphone Behavior

    CUSTOMIZING MICROPHONE BEHAVIOR DESIRED SWITCH BEHAVIOR DESIRED LED BEHAVIOR DIP SWITCH SETTING Push to mute, release to talk (as LED on when microphone is shipped) active Push to talk release to mute LED on when microphone is active Toggle: push on/push off LED on when microphone is active English –...

  • Page 17: Troubleshooting

    If your system is properly configured and you are having troubles, check the following: • Make sure both the transmitter and the receiver are turned on • Check the MX692 battery gauge, and replace the battery if necessary • Make sure the transmitter and receiver frequency group/channel settings are identical •...

  • Page 18: Specifications

    Temperature Range ensability depends on the user’s classification and application, and on the selected frequen- Operating: (20° to 120° F) cy. Shure strongly urges the user to contact Storage: (-20° to 165° F) the appropriate telecommunications authority Operating Frequency Range concerning proper licensing, and before 692–806 MHz...
