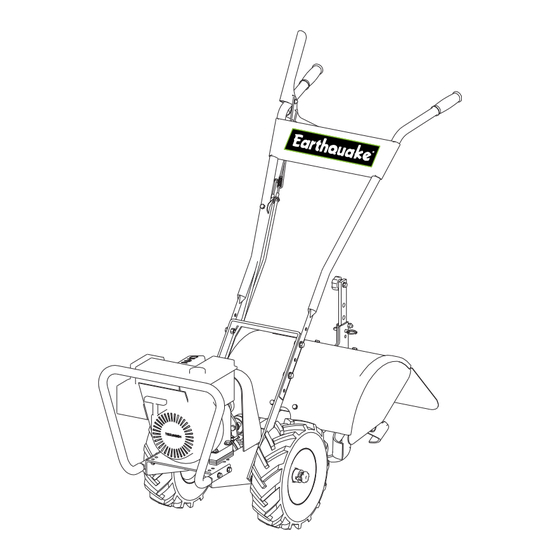

- Page 1 OPERATING INSTRUCTIONS & PARTS EXPLOSIONS CRT ROTOTILLERS 5055 6 HP BRIGGS 5155 6 HP BRIGGS 6065VE 6.5 HP VIPER ELECTRIC R5055H 5.5 HP HONDA ARDISAM .com OMcRT07 Rev. 12/21/06 © copyright 2006 Ardisam, Inc. All Rights Reserved. Printed in USA.
- Page 2 OPERATING INSTRUCTIONS ANd PARTS ExPlOSIONS CRT Models CRT hANdlEBAR PARTS ExPlOSION 53650(2) 53632 53614 53631(2) 53613 53612 53606(2) 53620 53607(4) 53629 60G56 53630(2) 53624 2104(4) 53679 90139(2) 53618(2) 90138(4) 48762(2) Page 0 800-345-6007...
- Page 3 OPERATING INSTRUCTIONS ANd PARTS ExPlOSIONS CRT Models CRT hANdlEBAR PARTS lIST 6065vE BATTERY BOx PARTS lIST PART # dESCRIPTION QTY. PART # dESCRIPTION QTY. 300500 Grommet, 1/2” ID 2104 Nut Hex Two-Way 3/8-16 300501 Nut, Wing M5 x .8 48762 Bolt 3/8-16 x 1”...
- Page 4 OPERATING INSTRUCTIONS ANd PARTS ExPlOSIONS CRT Models CRT TINES & hOOd PARTS ExPlOSION 509(2) 53581 504(2) 417(2) 1504(2) 1501(4) 69170 1900RCRT 1501(2) 53699 1511(3) 1508 1507 2001(2) 1900LCRT 719(2) 2104(2) 1103(2) 1710(2) 1501 1500CRT2, 1500CRT3 53698 1507 1514 1515 48406 53655 1516(3) Model 5155, 6065VE...
- Page 5 OPERATING INSTRUCTIONS ANd PARTS ExPlOSIONS CRT Models CRT TINES & hOOd PARTS lIST PART # dESCRIPTION QTY. PART # dESCRIPTION QTY. 1103 Lock Pin 5/16” x 1-3/4” Tail Mount Depth Regulator 1103A Wheel Lockout Knob (5155, Bolt 5/16-18 x 1/2” HH GR5 6065VE) 48406 Black Knob 5/16-18...
- Page 6 OPERATING INSTRUCTIONS ANd PARTS ExPlOSIONS CRT Models CRT mOTOR mOUNT PARTS ExPlOSION 2104 1408 WF38(2) 53638 53682 53649 48144B 1423(4) 53622 WF516 (4) 53617 60501, 60365E, 53637 501H WF516 WF516 2104 1408 WF38(2) 48144B 504(2) 1416 WF516 1418 53696B WF516 802(2) 741, 742 504(2)
- Page 7 OPERATING INSTRUCTIONS ANd PARTS ExPlOSIONS CRT Models CRT mOTOR mOUNT PARTS lIST PART # dESCRIPTION QTY. PART # dESCRIPTION QTY. 1407 Forward Arm Spring 53648 Bumper Guard (5155, 6065VE, R5055H) 1408 Forward Pulley Idler 53649 Belt Guard 1416 clevis Pin 53682 Reverse Tine Weldment 1418...
- Page 8 OPERATING INSTRUCTIONS ANd PARTS ExPlOSIONS CRT Models CRT WhEEl & TIllER ShAFT PARTS ExPlOSION & PARTS lIST PART # dESCRIPTION QTY. PART # dESCRIPTION QTY. 1500cRT2 Transmission complete, Lock Pin 1801 Tine Shaft 1500cRT3 Transmission complete, Lockout 1803c Gear-Worm, Brass, 30 Tooth, LH, Tiller Shaft 1506 Seal-Tiller Housing...
