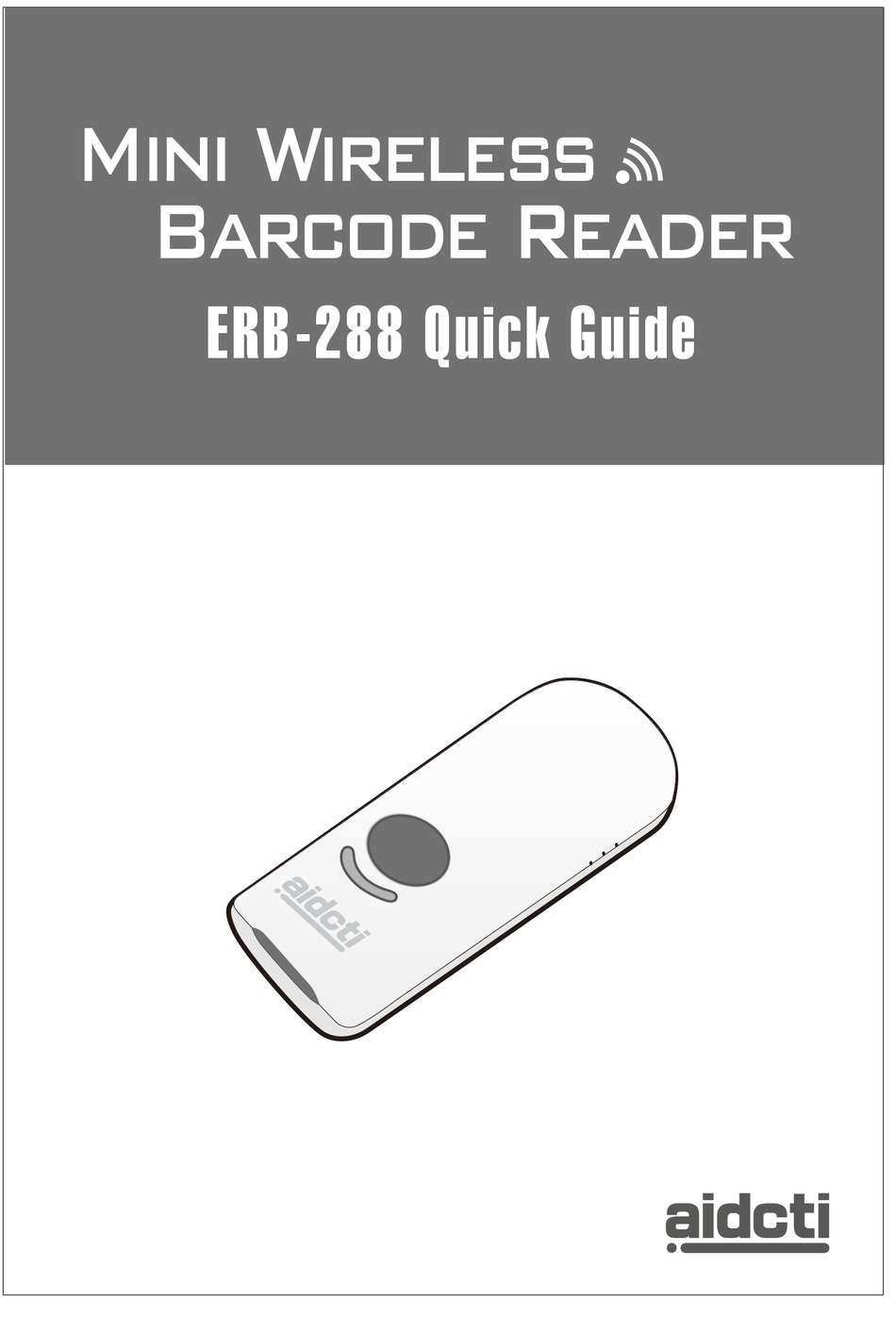

- Page 1 Mini Wireless Barcode Reader ERB-288 Quick Guide...
- Page 2 FCC WARNING STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 WARNING AND CAUTION 1. Take any metals into contact with the terminals in connectors. 2. Use the scanner where any inflammable gases. If following condition occur, immediately power off the host computer, disconnect the interface cable, and contact your nearest dealer. 1.
- Page 4 OUT OF THE BOX ERB-288 Barcode Reader Barcode Reader Setting Card Quick Guide Hand Strap USB Charger Cable ¡...
-
Page 5: Specifications
INTRODUCTION Trigger LED Indicator Mini USB port (w/ Protective Cover) Exit Window SPECIFICATIONS Light source 625nm visible red LED Scan rate 240 scans/sec Sensor Linear CMOS sensor Resolution 5mil/ 0.127mm Housing Plastic(PC) Profile SPP, HID 8 hours (1 scan/ 5 sec) Working Hours Charge Time 2 hours (fully charged) Coverage... -
Page 6: Getting Started
GETTING STARTED ☺ ☺ To scan a barcode, make sure the aiming beam crosses every bar and space of the barcode. CHARGING THE BATTERY Host ERB-288w Mini USB USB A 1. Flip open the mini USB port on the scanner. 2. -
Page 7: Led Indication
BEEPER INDICATION Single long beep Power up Single beep Good read Single short beep The scanner reads a Code39 of ASCII in configuration procedure Two beeps Wireless connection Two short beeps The scanner successfully reads a configuration barcode High-low beeps Data temporarily stored (Batch) Five beeps Low power... -
Page 8: Getting Connected
GETTING CONNECTED There are two modes of wireless communication: . E043$ *.E043$* BT mode - HID 1. Press the trigger for 1 second to activate the scanner. 2. Scan [NEW CONNECT] 3. Scan [BT mode - HID]; the scanner will emit several beeps. 4. -
Page 9: Pincode Setup
PINCODE SETUP STEP 1 . E032$ *.E032$* Pincode Start STEP 2 (see section Scan numeric barcodes NUMERIC BARCODES on the next pages) based on the pincode generated by the Bluetooth application. STEP 3 *$TX* Enter STEP 4 . E033$ *.E033$* Pincode Stop ¡... -
Page 10: Numeric Bar Codes
NUMERIC BARCODES ¡... - Page 11 ¡ ¢...
- Page 12 SMARTPHONE CONNECTION - iOS (Apple) Getting Connected Please pair with the scanner via [BT mode - HID]. (page 7) Getting Connected without Pincode . E049$ ENABLE SSP Secure Simple Pairing (SSP), supported by Bluetooth 2.1 or above, allows you to pair with iOS without pincode. Please scan [Enable SSP] above before entering the pairing procedure of [BT mode - HID].
-
Page 13: Smartphone Connection - Android
SMARTPHONE CONNECTION - Android Getting Connected To get connected to Android, please follow the instruction in [BT mode - HID]. (page 7) Touch Keyboard While connected with the scanner, the Touch Keyboard on the Android smartphone or tablet might disappear. To resolve this issue, please change settings on Android device with below steps: 1. -
Page 14: Power Off Timeout
POWER OFF TIMEOUT The timeout before automatic power-off to save power. . B017$ *.B017$* 1 MIN . B018$ *.B018$* 3 MIN . B019$ *.B019$* 5 MIN . B020$ *.B020$* 10 MIN . B021$ *.B021$* DISABLE (ALWAYS ON) ¡ ¢... -
Page 15: Link Quality
LINK QUALITY . E035$ ENABLE . E036$ DISABLE Link Quality ensures a more secure data transmission from the scanner to the cradle/host. However it will decrease the distance of data transmission. BATCH MODE . E054$ ENABLE . E053$ DISABLE In Batch Mode, the scanner will temporarily keep scanned data in its memory buffer(2K RAM) and send all stored data back to the host after getting back in range. -
Page 16: General Settings
GENERAL SETTINGS . A001$ DEFAULT . P023$ RESET . A007$ CHECK VERSION ¡ ¢... -
Page 17: Reading Mode
READING MODE . F002$ TRIGGER . F003$ TOGGLE . F001$ FLASH . F005$ CONTINUOUS . F006$ CONTINUOUS AUTO OFF ¡ ¢... - Page 18 KEYBOARD LAYOUT . C010$ ENGLISH (USA) . C018$ ENGLISH (UK) . C012$ FRENCH . C011$ GERMAN . C014$ ITALIAN . C013$ SPANISH ¡ ¢...
- Page 19 . C009$ JAPAN (106 key) . C025$ CANADIAN (FRENCH) . C034$ CANADIAN (TRADITIONAL) . C029$ NORWEGIAN . C026$ SWEDISH . C031$ PORTUGUESE ¡ ¢...
- Page 20 KEYBOARD LAYOUT . C017$ CZECH (QWERTY) . C022$ CZECH (QWERTZ) . C021$ HUNGARIAN (QWERTZ) . C024$ HUNGARIAN (101 KEY) . C016$ SWISS (GERMAN) . C023$ SWISS (FRENCH) ¡ ¢...
- Page 21 . C030$ BELGIAN (AZERTY) . C028$ DUTCH . C027$ DANISH . C032$ SLOVAK . C033$ BRAZILIAN (PORTUGUESE) . C015$ ALT CODE ¡ ¢...
-
Page 22: Enable Symbologies
ENABLE SYMBOLOGIES . A002$ ENABLE ALL CODE . K010$ CODE 32 . L010$ UK PLESSEY . L001$ . N001$ INDUSTRIAL 2 OF 5 . M010$ MATRIX 2 OF 5 ¡ ¢... - Page 23 . G010$ CODE 93 . N017$ IATA . L014$ TELEPEN . N032$ GS1 DATABAR . N010$ GS1 DATABAR LIMITED . N026$ GS1 DATABAR EXPANDED ¡ ¡...
- Page 24 TERMINATOR . D012$ . D011$ . D013$ CR + LF . D010$ NONE . D015$ SPACE . D014$ ¡ ¢...
-
Page 25: Test Barcodes
TEST BARCODES Code 39 SECH-738 Interleaved 2 of 5 9876543210 Code 128 12345678 ¡ ¢... - Page 26 TEST BARCODES Code 39 Full ASCII {12}ab Codabar 9932562 EAN-128 JHS-736-dep UPC-A 24698 63215 ¡ ¢...
- Page 27 TEST BARCODES Code 39 DENSITY ¡ ¢...
- Page 28 Visit official site for full user's manual download www.aidcti.com ERB-288 Mini Wireless Barcode Reader Quick Guide (Rev6) P/N: 8002-0028*07...
