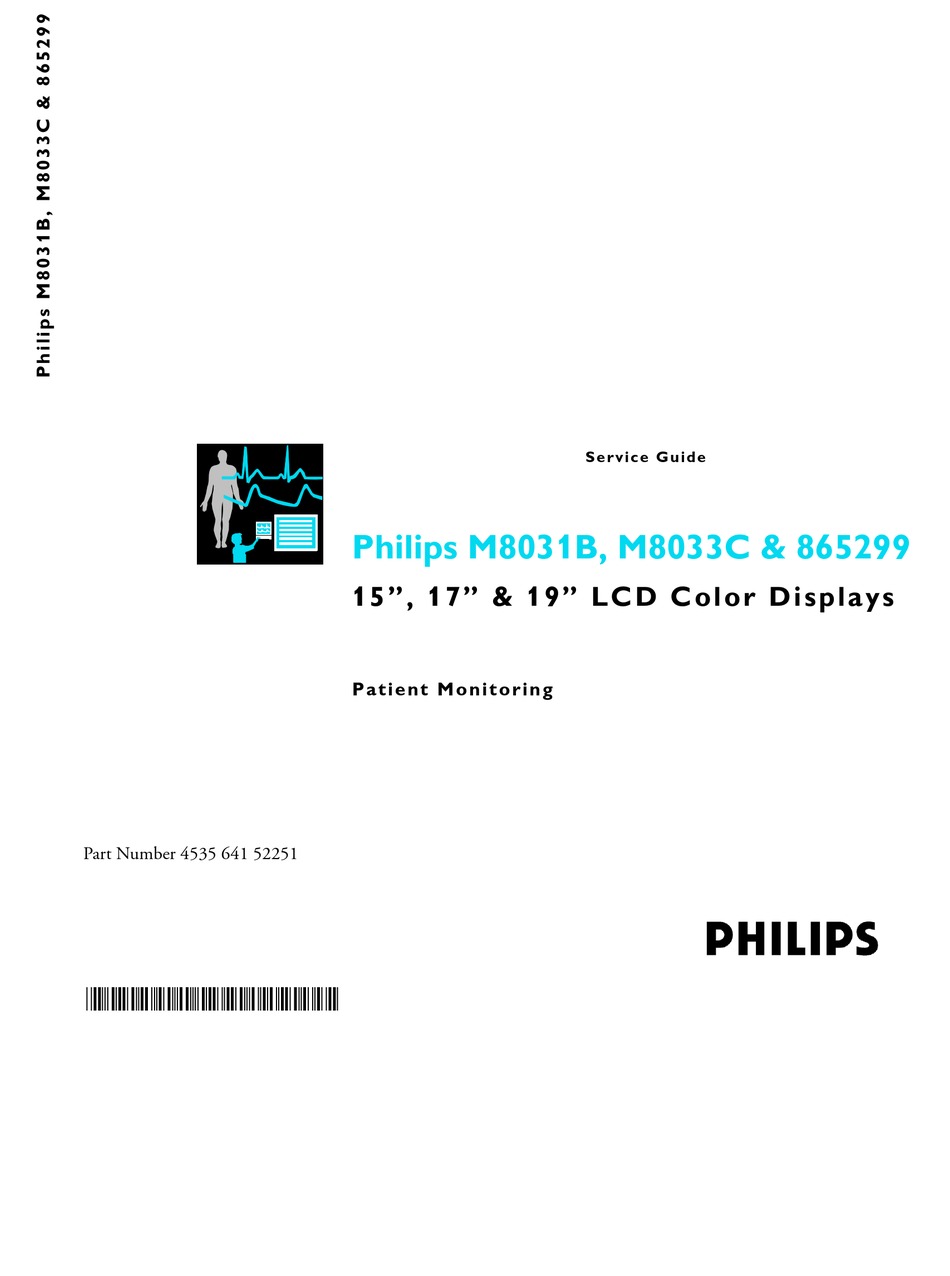

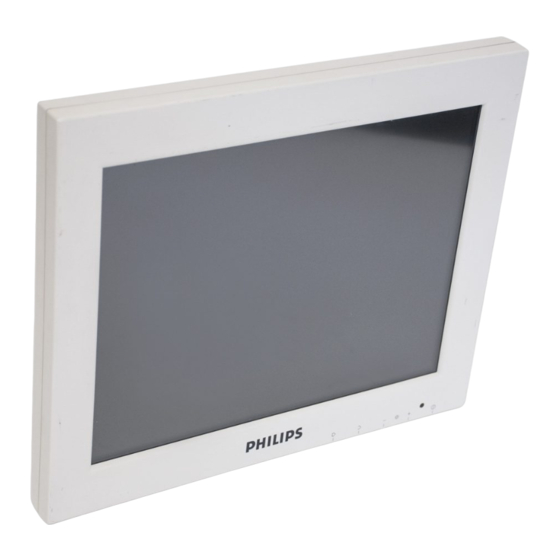

- Page 1 S e r vi c e G ui de Philips M8031B, M8033C & 865299 15 ” , 17 ” & 1 9 ” L C D C o lo r D i sp l a ys P a t i e nt M o n i t or i n g...
-
Page 3: Table Of Contents
Table of Contents 1 Introduction Who Should Use This Guide Responsibility of the Manufacturer Warnings and Cautions 2 Installation (M8031B & M8033C) Dimensions M8031B 15” Display Power Supply M8033C 17” Display Installation Positioning Mounting Instructions Desk Stand (Optional) Connections M8031B... - Page 4 After Installation, Testing or Repair 5 Troubleshooting Signal missing Cable disconnected 6 Repair and Disassembly Backlight Replacement (M8031B & M8033C only) Tools required M8031B Backlight Replacement Removing the LCD Panel from the Display Unit Replacing the Backlights M8033C Backlight Replacement...
-
Page 5: Introduction
• the instrument is used in accordance with the instructions for use. To ensure safety and EMC, use only those Philips parts and accessories specified for use with the monitor. If non-Philips parts are used, Philips is not liable for any damage that these parts may cause to the equipment. -
Page 6: Warnings And Cautions
1 Introduction Warnings and Cautions Philips shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. Warnings and Cautions In this guide: • A warning alerts you to a potential serious outcome, adverse event or safety hazard. Failure to observe a warning may result in death or serious injury to the user or patient. -
Page 7: Installation (M8031B & M8033C)
Installation (M8031B & M8033C) Dimensions The following graphics show the dimensions of the display and the power supply. Please allow for a sufficient amount of space for installation of the display. M8031B 15” Display Dimensions: in mm; Weight: approx. 5 kg without desk stand... -
Page 8: Power Supply
2 Installation (M8031B & M8033C) Dimensions Power Supply Dimensions: mm (inches) Weight: 373g (13,2 Oz). -
Page 9: M8033C 17" Display
Dimensions 2 Installation (M8031B & M8033C) M8033C 17” Display Dimensions: in mm; Weight: approx. 7kg without desk stand... -
Page 10: Installation
Philips Sales/Support Office immediately. Philips will arrange for immediate repair or replacement of the instrument without waiting for the claim settlement by the carrier. Keep all packing... - Page 11 Installation 2 Installation (M8031B & M8033C) After unpacking the display, make sure the following items are included: • display • AC Power Supply • Mains cord set 1,8-meter • Video Signal cable • Touch screen cable • User and Service Documentation...
-
Page 12: Mounting Instructions
Desk Stand (Optional) With the desk stand (Part No.: M8031-04701, 12NC: 451261001901) you can tilt the display to the most comfortable viewing angle. 5° 15° For other mounting options please refer to the Philips IntelliVue Mounting Solutions Website. -
Page 13: Connections M8031B
Connections M8031B 2 Installation (M8031B & M8033C) Connections M8031B The graphic below shows the display connectors. These are located on the back of the display below the mounting plate and are accessible from the bottom. • +12V D.C. Connection (Power jack) •... - Page 14 2 Installation (M8031B & M8033C) Connections M8031B • RS 232 Connection (DSUB9 female connector)) Pin 1 Pin 6 N.C. Pin 2 Pin 7 Pin 3 Pin 8 Pin 4 N.C. Pin 9 N.C. Pin 5...
-
Page 15: Connections M8033C
Connections M8033C 2 Installation (M8031B & M8033C) Connections M8033C The graphic below shows the display connectors. These are located on the back of the display below the mounting plate and are accessible from the bottom. SXGA Power Touch Screen • CEE 22-6A IEC320 male pin receptacle connector •... -
Page 16: Connecting Ac Power (M8031B)
2 Installation (M8031B & M8033C) Connections M8033C • Input DSUB-15 connector (VGA type) Analog RGB Pin 1 Pin 9 N.C. Pin 2 GREEN Pin 10 Pin 3 BLUE Pin 11 Pin 4 N.C. Pin 12 Vesa_SDA Pin 5 Pin 13... -
Page 17: Connecting Ac Power (M8033C)
Connections M8033C 2 Installation (M8031B & M8033C) The power connector should be fixed to the cabinet with the proper cable clamp and screw. Insert the plug end of the power cord into a grounded wall outlet. If needed add the Power Supply Holder M8031-64001 (451261001931) to your installation. -
Page 18: Connecting Digital Video (Dvi)
2 Installation (M8031B & M8033C) Connections M8033C Connecting Digital Video (DVI) With both system and display powered off, connect the digital video cable from the display to the system’s DVI video port. Make sure the video cable connector is securely connected to the system video port. -
Page 19: Connecting Analog Video (Xga)
Connections M8033C 2 Installation (M8031B & M8033C) Connecting Analog Video (XGA) With both system and display powered off, connect the analog video cable from the display to the system’s D-SUB video port. Make sure the video cable connector is securely connected to the system video port. -
Page 20: Connecting The Touch Screen
2 Installation (M8031B & M8033C) Connections M8033C Connecting the Touch Screen Connect the display’s RS-232 serial port to the system’s serial port using the appropriate cable. -
Page 21: Installation (865299)
Installation (865299) Dimensions The following graphics show the dimensions of the display and the power supply. Please allow for a sufficient amount of space for installation of the display. -
Page 22: 865299 19" Display
3 Installation (865299) Dimensions 865299 19” Display... - Page 23 Dimensions 3 Installation (865299)
-
Page 24: Power Supply
Philips Sales/Support Office immediately. Philips will arrange for immediate repair or replacement of the instrument without waiting for the claim settlement by the carrier. Keep all packing... -
Page 25: Mounting Instructions
Mounting Instructions 3 Installation (865299) After unpacking the display, make sure the following items are included: • display • CD • Power Supply • User & Service Documentation Mounting Instructions It is the customer’s responsibility to have the attachment of the mounting hardware to the ceiling, wall, WARNING or mounting rail and the construction of the ceiling, wall or mounting rail evaluated for structural integrity and compliance with all local, state and any other required codes by a registered, professional,... -
Page 26: Rear Mounting Using The Vesa Interface
3 Installation (865299) Connections 865299 Rear Mounting Using the VESA Interface If the display is already connected to a pedestal, remove the four screws that connect the pedestal to the display (refer to Figure2-1 , item 1 ). Separate the pedestal from the display. Reinstall the four screws into the VESA interface mount. -
Page 27: Touch Interface Connection
Connections 865299 3 Installation (865299) Touch Interface Connection Before connecting the cables to your touchmonitor and PC, be sure that the computer and N O TE touchmonitor are turned off. Connecting the Video Cable Tilt the screen up and back to access the connection ports. •... -
Page 28: Connecting The Speaker Cable
3 Installation (865299) Connections 865299 • Connect the female end of the serial (RS-232) cable to the serial port on your PC, or connect the USB touchscreen cable to the USB touchscreen connector on the back of your touchmonitor. • Connect the male end of the cable to the serial touchscreen connector on your touchmonitor, or connect the other end of the USB touchscreen cable to your PC. - Page 29 Connections 865299 3 Installation (865299) Depending on where you live, you will use either the European or US/Canadian power cable. • Connect the female end of the power cable to the medical grade power adaptor. • Connect the brick power cable into the power port on the touchmonitor. •...
- Page 30 3 Installation (865299) Connections 865299...
-
Page 31: Testing And Maintenance
Testing and Maintenance Introduction This chapter provides a checklist of the testing and maintenance procedures to ensure the performance and safety of the displays. These tests must be performed only by qualified personnel certified by the responsible organization. Qualifications required are: training on the subject, knowledge, experience and acquaintance with the relevant technologies, standards and local regulations. -
Page 32: Tests Recommended When Performing
Service Event Test Blocks Required (When performing..Complete these tests) Repairs where the display (M8031B or M8033C) Perform Power On and all Safety Tests has been opened Repairs where the display has been damaged by Perform Visual, Power On and all Safety Tests impact, liquid ingression, fire, short circuit or electrical surge. -
Page 33: Testing Sequence
Testing Sequence 4 Testing and Maintenance Testing Sequence Here is a summary of the recommended sequence of testing: Start Select the test Visual Inspection See ““Visual Inspection” on page 31. Safety Tests See “Safety Testing” on page 32. Reporting of Results See “Reporting of Test Results”... -
Page 34: Safety Testing
4 Testing and Maintenance Safety Testing The expected test result is pass: the monitor boots up and displays the startup screen. Safety Testing Safety tests are comprised of the following tests performed on the monitoring system: • protective earth resistance •... -
Page 35: Safety Test Procedures
Safety Testing 4 Testing and Maintenance Safety Test Procedures Use the test procedures outlined here only for verifying safe installation or service of the product. The setups used for these tests and the acceptable ranges of values are derived from local and international standards but may not be equivalent. -
Page 36: Guideline For Performance Of Safety Tests
4 Testing and Maintenance Safety Testing • Connection lines such as data lines or functional earth conductors may appear to act like protective earth connections. These may lead to incorrect measurements and need to be considered during testing. If necessary, unplug these connections. •... -
Page 37: S(1): Protective Earth Resistance Test
Safety Testing 4 Testing and Maintenance S(1): Protective Earth Resistance Test Test to perform: Measuring circuit for the measurement of Protective Earth Resistance in medical electrical equipment that is disconnected from the supply mains. This measures the impedance of the Protective Earth (PE) terminal to all exposed metal parts of the Instrument under Test (IUT), which are for safety reasons connected to the Protective Earth (PE). -
Page 38: S(2): Equipment Leakage Current Test - Normal Condition
4 Testing and Maintenance Safety Testing S(2): Equipment Leakage Current Test - Normal Condition Test to perform: Measuring circuit for the measurement of Equipment Leakage Current - Direct method according to IEC/EN 62353. This test measures leakage current of exposed metal parts of the display and the functional earth leakage current. -
Page 39: S(3): Equipment Leakage Current Test - Single Fault Condition
Philips recommends all test results are documented in accordance with local laws. Authorized Philips personnel report test result back to Philips to add to the product development database. While hospital personnel (biomedical engineers or technicians) do not need to report results to Philips, Philips recommends that they record and store the test results in accordance with local laws. - Page 40 4 Testing and Maintenance Reporting of Test Results • Identification of the testing body (for example, which company or department carried out the tests). • Name of the person(s) who performed the tests and the concluding evaluation. • Identification of the device(s) and accessories being tested (serial number, etc.). •...
-
Page 41: Carrying Out And Reporting Tests
Measurement Equipment (Manufacturer, Type, Serial No.): Functional Test (parameters tested): Table 1: Test and Inspection Matrix Record the Results (mandatory for Test or Inspection Philips Personnel only) Test Block Expected Test Results to be Performed What to Record Actual Results... -
Page 42: Evaluation
4 Testing and Maintenance Reporting of Test Results Evaluation Safety and Functional Test passed Repair required at a later date, safety and functional test passed Device must be taken out of operation until repair and passed tests Device failed and must be taken out of operation Notes: Next Recurrent Test: Name: _____________________________________________... -
Page 43: Explanation Of Symbols Used
Explanation of Symbols Used 4 Testing and Maintenance Explanation of Symbols Used The following symbols appear on the display. Symbols Refer to accompanying Protective earth Identifies year 2002- documents and month of manufacture Menu Button Select Button Adjust + - and Brightness Adjustment Buttons... - Page 44 4 Testing and Maintenance After Installation, Testing or Repair...
-
Page 45: Troubleshooting
Troubleshooting Problem Cause Remedy No image appears on screen Display is not turned ON Switch ON the display Power plug is not properly Check DC input plug. inserted Turn ON display pressing the ON/OFF switch. Screen is black and LED is Display is in stand-by Check the signal output of the blinking. -
Page 46: Cable Disconnected
5 Troubleshooting Then the following message appears for 10 seconds and then the backlight lamp goes OFF (black screen) and the Green LED starts blinking. Cable disconnected When signal cables are disconnected the following message is displayed. In this case the display does not enter into stand-by mode and the LED is always ON N O TE... -
Page 47: Repair And Disassembly
Repair and Disassembly Backlight Replacement (M8031B & M8033C only) WARNING This operation may be critical if not executed by trained and skilled operators. Warranty will not cover any damage caused by bad workmanship while performing this replacement process. CAUTION Take special care when handling the LCD module with the backlight unit. -
Page 48: M8031B Backlight Replacement
6 Repair and Disassembly M8031B Backlight Replacement M8031B Backlight Replacement Removing the LCD Panel from the Display Unit Remove the plastic back cover. - Page 49 M8031B Backlight Replacement 6 Repair and Disassembly Remove the fixing screws from the front mask (four screws at the corners). Remove the metal back-cover, and disconnect the flex cable from the touch controller board.
- Page 50 6 Repair and Disassembly M8031B Backlight Replacement Slide the flat cable out from its location.
- Page 51 M8031B Backlight Replacement 6 Repair and Disassembly Take fixing screws out of the controller board, disconnect all signal cables connected to the board, and remove it from its position.
- Page 52 6 Repair and Disassembly M8031B Backlight Replacement Turn the metal chassis around. Lift the touch screen panel off carefully.
- Page 53 M8031B Backlight Replacement 6 Repair and Disassembly Remove the four fixing screws from the LCD panel module. Take the metal bracket out from the left hand side.
- Page 54 6 Repair and Disassembly M8031B Backlight Replacement 10 Disconnect the two backlight inverter cables from the LCD panel module (found on the right hand side of the panel) 11 Extract the cables by sliding them out gently from the metal chassis holes.
- Page 55 M8031B Backlight Replacement 6 Repair and Disassembly 12 Lift and extract the LCD panel carefully.
-
Page 56: Replacing The Backlights
6 Repair and Disassembly M8031B Backlight Replacement Replacing the Backlights 13 Unscrew cold cathode fluorescent lamp assembly with a Philips head screwdriver (upper and lower). - Page 57 M8031B Backlight Replacement 6 Repair and Disassembly 14 Pull out the cold cathode fluorescent lamp assembly (upper and lower). CAUTION Do not pull the cable directly as this may cause damage to the cable.Watch your fingers because the edge of lamp holder is sharp.
- Page 58 6 Repair and Disassembly M8031B Backlight Replacement 15 Remove the cold cathode fluorescent lamp assembly (upper and lower). CAUTION Do not pull the cable directly as this may cause damage to the cable.Watch your fingers since the edge of the lamp holder is sharp.
- Page 59 M8031B Backlight Replacement 6 Repair and Disassembly 16 Insert the new cold cathode fluorescent lamp assembly (upper and lower). CAUTION Insert the lamp assembly so that the white sheet is hidden under the holder. Watch your fingers since the edge of the lamp holder is sharp.
- Page 60 6 Repair and Disassembly M8031B Backlight Replacement 17 Screw in cold cathode fluorescent lamp assembly (upper and lower). 18 Reassemble the display by performing steps 1 to 12 in reverse order. 19 Perform power on and safety tests.
-
Page 61: M8033C Backlight Replacement
M8033C Backlight Replacement 6 Repair and Disassembly M8033C Backlight Replacement Remove the plastic back cover. Remove the fixing screws from the front mask (four screws at the corners). - Page 62 6 Repair and Disassembly M8033C Backlight Replacement Remove the metal back cover(by removing the 10 fixing nuts), and disconnect the flex cable from the Touch controller board. Disconnect the keyboard cable and remove the eight nuts fixing the metal chassis. Lift the metal chassis and disconnect the video signal and the inverter cables.
- Page 63 M8033C Backlight Replacement 6 Repair and Disassembly Remove the metal chassis from the panel. Remove the the panel from the front mask but leave the touch screen in its position inside the front mask. Disconnect the lamp connectors from the inverter. Remove the two screws fixing the side bracket (only the bracket close to the inverter).
- Page 64 6 Repair and Disassembly M8033C Backlight Replacement Remove the two screws fixing the two lamp assemblies to the panel by turning the screws counterclockwise. 10 Take out the two lamp assemblies using a screwdriver. 11 Remove the lamp assemblies and replace them.
- Page 65 M8033C Backlight Replacement 6 Repair and Disassembly 12 Screw in the lamp assemblies and reassemble the monitor following the previous steps in reverse order.
- Page 66 6 Repair and Disassembly M8033C Backlight Replacement...
-
Page 67: Part Numbers
19” LCD Display M8031-68001 4512 610 01941 Exchange 15” LCD Medical Grade Display 2090-0860 4535 634 63201 Backlights for M8031B M8033-68071 4512 610 09161 M8033C Exchange 17” Medical Grade Monitor with Touch 4519 208 80311 Backlights for M8033C 4535 641 92181 865299 Exchange 19”... - Page 68 7 Part Numbers...
