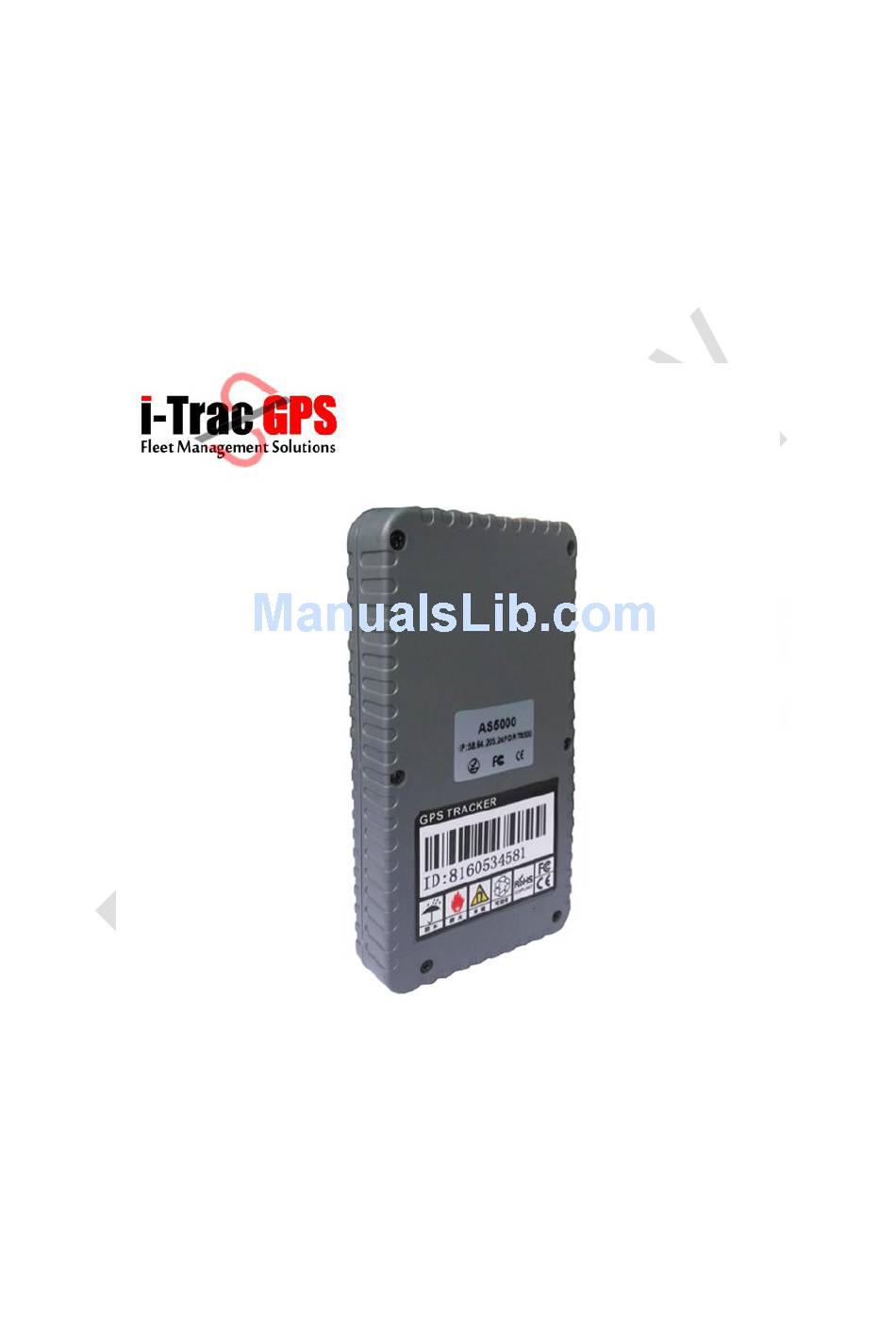

Page 1: User Manual
Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn User Manual AS5000 GPS Tracker (Vehicle/Container) - Page 2 Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn Disclaimer The Ascend Group Company Limited Manual (the "Manual") is proprietary to Ascend Group Company Limited. ("i-Trac GPS") and no ownership rights are hereby transferred. No part of the Manual shall be used, reproduced,...
-
Page 3: Product Overview
Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn 1. Product Over view GPS TRACKER AS5000 is the combination of GSM and GPS technology, it uses industrial-grade fireproof material, 6 18MM × 3MM strong magnets , IPX-5 waterproof level, built-in 18000MAH high-capacity Li-Fe battery, battery life time is 15 years, long work time 1-5 years, Magnetic free installation design, easy to use. -
Page 4: Specification
Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn environmental shielding; may fail to carry out positioning during certain circumstances. It will resume the positioning function as soon as it leaves the shielding environment. This is normal. Please do not worry when encountering such problem. -
Page 5: Installation
20 m/sec displacement 3. Installation: 3.1 Product part list GPS tracker AS5000 main unit 3.2 Precaution before Installation Check if all the parts are included. Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set and that it can dial out and receive telephone calls and SMS without problem. -
Page 6: Important Notice
Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn installation shall ensure that face up (skyward), and above no metal barrier shield, suggest installation position: Front windshield decorative below the covert, Front panel (skin for non-metal material) around the shadow Rear window below decorative Check if all the wiring has been connected correctly;... - Page 7 Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn WT+A,next power on time,present time A=01-99 hours Example: WT24,1101,1345 24 means the gps tracker will power on every 24 hours , 1101 means next power on time is 11:01AM next day, 1345 means present time is 13:45PM.
- Page 8 Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn APN, is gateway to connect internet, Each country is different, please contact your SIM card provider for APN name, and APN User name. password. In the example: telecom: is GPRS user name, abc1234: is GPRS password...
- Page 9 Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn Asset Name: Define by yourself; you can enter A-Z number or Numeric Device ID: On the GPS tracker cover , you can find the “ID”. Very Important Note: Asset name and device ID must be unique on the software, you can add once only, you need to delete it from database before adding it again.
-
Page 10: Sms Command List
Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn Put a check mark on the device, and right click, you will see the menu as below picture. Now you can track online. Attention: For 900D GPS Software, "Monitor" and "Asset Name" must be checked till the font becomes blue, then the GPS tracker will update location automatically on map.Like below picture:... - Page 11 Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn Set the duration of shock alarm command:vibtime123456,n (n=0-15 seconds, default 3 seconds, n=0 means cancel shock alarm) 5. Movement alarm Open Command: move123456 300(default) Reply: Move ok Note: in the unit of meter Cancel movement alarm: nomove123456 Reply: No move ok.
-
Page 12: Troubleshooting
Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn Command1(No apn user name and apn password)：APN123456+Space+APN Name Example: apn123456 cmnet Command2 (Need apn user name and apn password): apnuser123456+Space+APN User name apnpasswd123456+Space+APN Password Example: apnuser123456 telecom apnpasswd123456 abc1234 Remarks: APN, is gateway to connect internet, Each country is different, please contact your SIM card provider for APN name, and APN User name. - Page 13 Ascend Group Company Limited(i-Trac GPS), www.i-trac.cn 4/ Why it said "log in fail" on on itrac gps tracker ios andriod app "itracksafe" Answer: Kindly choose the correct server, we have two server, please choose 58.64.205.22, default is null. 5/ Why the GPS tracker can not come online after i set IP, Port APN Answer: send sms command 7100000 switch gps tracker to GPRS mode please.
