Petrol Rotavator
Please read and retain these instructions for future reference
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

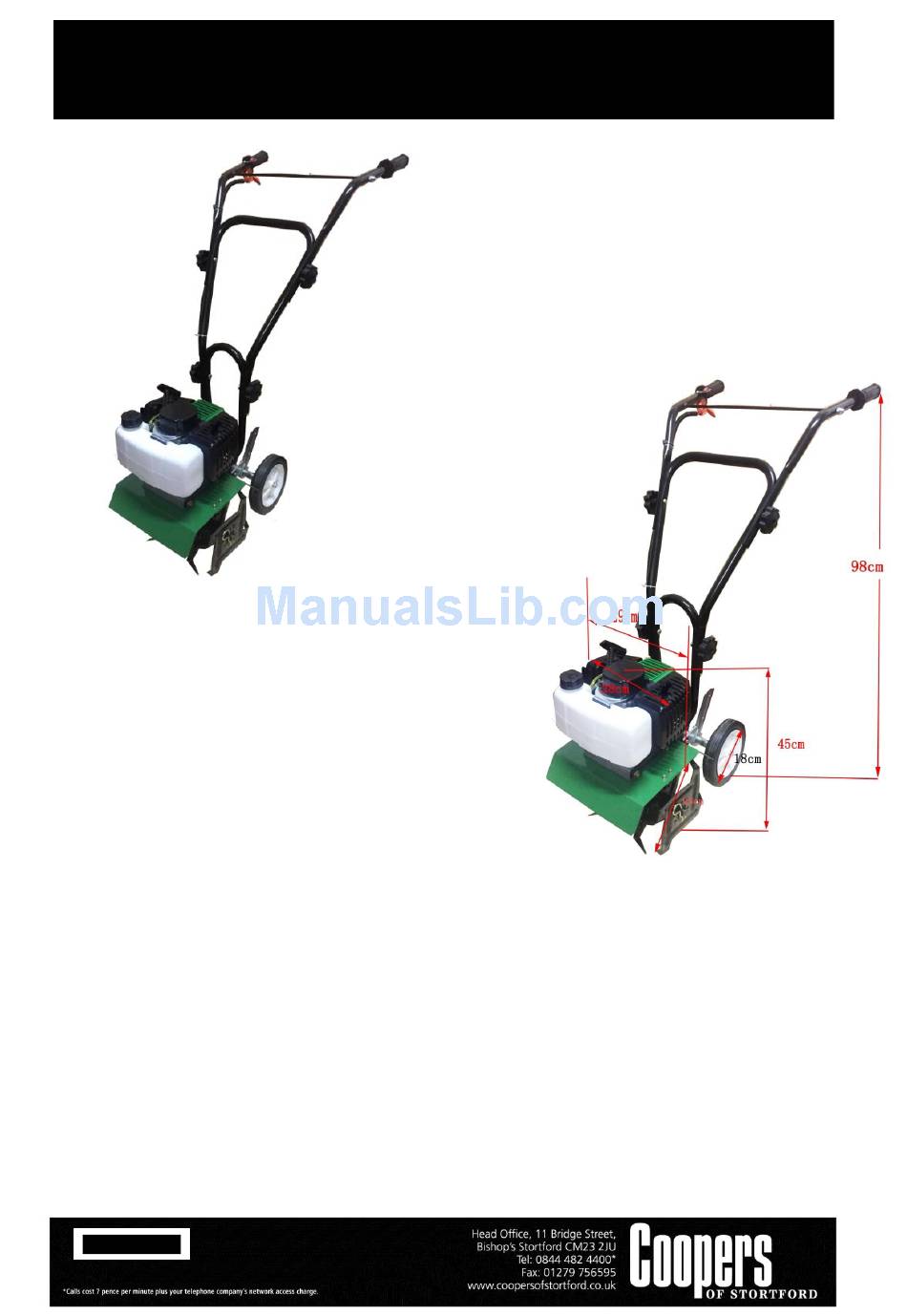

PRODUCT SPECIFICATIONS
Engine Type:
Displacement:
Starting System:
Fuel Tank Capacity:
Petrol Mixing Ratio:
Net Weight:
Tilling Width:
Aerator Width:
Diameter of rear wheels:
Rotavator body height:
Height of handles from
Bottom of wheel:
Contents
Product Specifications .................................................................................................................. 1
Important Safety Instructions ....................................................................................................... 1
Safety Warnings ........................................................................................................................... 2
Parts Identification ...................................................................................................................... 3
Assembly ..................................................................................................................................... 4
Operation Steps ........................................................................................................................... 7
Maintenance and repair Instructions .......................................................................................... 10
Storage ...................................................................................................................................... 11
Page No. 1
10598
1.65kw, 2 Air-cooled
Engine
52cc
Recoil
1200ml
25:1
16.5 kg without extra
attachments
28cm
29cm
18cms
45cm
98cms approx.
Instructions for Use
v001: 28/11/16
Advertisement
Related Manuals for Coopers 10598
Summary of Contents for Coopers 10598
-
Page 1: Table Of Contents
Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. PRODUCT SPECIFICATIONS Engine Type: 1.65kw, 2 Air-cooled Engine Displacement: 52cc Starting System: Recoil Fuel Tank Capacity:... -
Page 2: Important Safety Instructions
Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 IMPORTANT SAFETY INSTRUCTIONS Before Operating This Equipment: A. READ ALL INSTRUCTIONS CAREFULLY. FAMILIARISE YOURSELF WITH ALL THE CONTROLS AND PROPER USE OF THE UNIT. DO NOT OPERATE THIS MACHINE WHEN TIRED, ILL, OR UNDER THE INFLUENCE OF ALCOHOL, DRUGS, OR MEDICATION. -
Page 3: Parts Identification
Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 PARTS IDENTIFICATION Page No. 3... -
Page 4: Assembly
Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 ASSEMBLY INSTRUCTIONS 1. Open the product packaging, remove the product and accessories. 2. Adjust depth skid assembly (according to the installation diagram below) Pull out the spring and bolt Page No. - Page 5 Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 3. Mounting Bracket (follow the diagrams below) 4. Install from left to right as shown below Page No. 5...
- Page 6 Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 5. Secure the throttle cable in 3 places, do not overtighten. First Second Third 6. Depth Adjustment There are three grooves in the connector plate. Place the wheels in the highest groove when working.
-
Page 7: Operation Steps
Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 OPERATION STEPS: To start the engine using the Recoil Starter Move the rotavator, by pushing it on its wheels, to the work area before starting the engine. - Page 8 Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 B. Hold both of the handlebar grips firmly, slowly lower the cultivator until the tines make contact with the ground. As the tines rotate on the soil, begin to pull back on the rotavator so that the tines can penetrate the ground.
- Page 9 Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 ON/OFF STOP CONTROL ON/START/RUN. ON/OFF STOP CONTROL OFF or STOP HOT SURFACE WARNING Do not touch a hot silencer, gear housing or cylinder. You may get burned. These parts get extremely hot from operation.
-
Page 10: Maintenance And Repair Instructions
Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 MAINTENANCE AND REPAIR INSTRUCTIONS MAINTENANCE SCHEDULE Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up. -
Page 11: Storage
Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 CLEANING THE AIR FILTER Clean and re-oil the air filter every ten hours of operation. It is vitally important item to maintain. Remove the sponge filter from inside. - Page 12 Petrol Rotavator Instructions for Use 10598 Please read and retain these instructions for future reference v001: 28/11/16 Long Term Storage Drain any fuel left in the tank into a container and dispose of considering local bylaws. Start and run the engine until it stalls. This ensures all fuel has been used from the carburettor.
