QuickSpecs
Overview
HPE 6125XLG Ethernet Blade Switch
The HPE 6125XLG Ethernet Blade Switch from HPE Networking is built with the enterprise data center in mind. The HPE
6125XLG is based on HPE Comware v7 network operating system, which delivers enterprise grade resiliency The 6125XLG is
designed for data center convergence with full support for IEEE Data Center Bridging (DCB) for lossless Ethernet, and Fibre
Channel over Ethernet (FCoE) protocols. The Fibre Channel Forwarder (FCF) feature allows 3PAR StoreServ arrays to be directly
attached to the HP6125XLG switch through FCoE ports. The HPE 6125XLG supports HPE Software-defined Network (SDN)
ecosystem that delivers simple, open, and Enterprise ready benefits to automate the data center network. With support for IETF
industry standard TRILL (Transparent Interconnection of Lots of Links) and SPB (Shortest Path Bridging), the HPE 6125XLG
delivers loop free large Layer 2 networks with multi-path support. With the HPE Intelligent Resilient Fabric (IRF) multiple switches
can be virtualized and managed as a single entity with the HPE Intelligent Management Center (IMC). The HPE 6125XLG is the
industry's first blade witch with VEPA (Virtual Ethernet Port Aggregation) support, enabling customers to unify the management of
their physical and virtual networks. Combine these features with Virtual Application Network (VAN) and your data center provides
the benefits of versatility of a true Virtualized Network. HPE 6125XLG Ethernet Blade Switch provides flexibility, versatility, and
resiliency making it the optimal choice for any blade switching environment.
1. Ejector Lever
2. Four (4) 40 GbE (QSFP+) ports
3. Release tab
4. Eight (8) 10 GbE (SFP+) ports
5. Reset button
Models
HPE 6125XLG Ethernet Blade Switch
HPE 6125XLG Ethernet Blade Switch TAA
HPE 6125XLG Blade Switch
Compatibility
HPE ProLiant
HPE ProLiant BL460c Gen9
Servers
HPE ProLiant BL660c Gen9
HPE ProLiant BL420c Gen8
HPE ProLiant BL460c Gen8

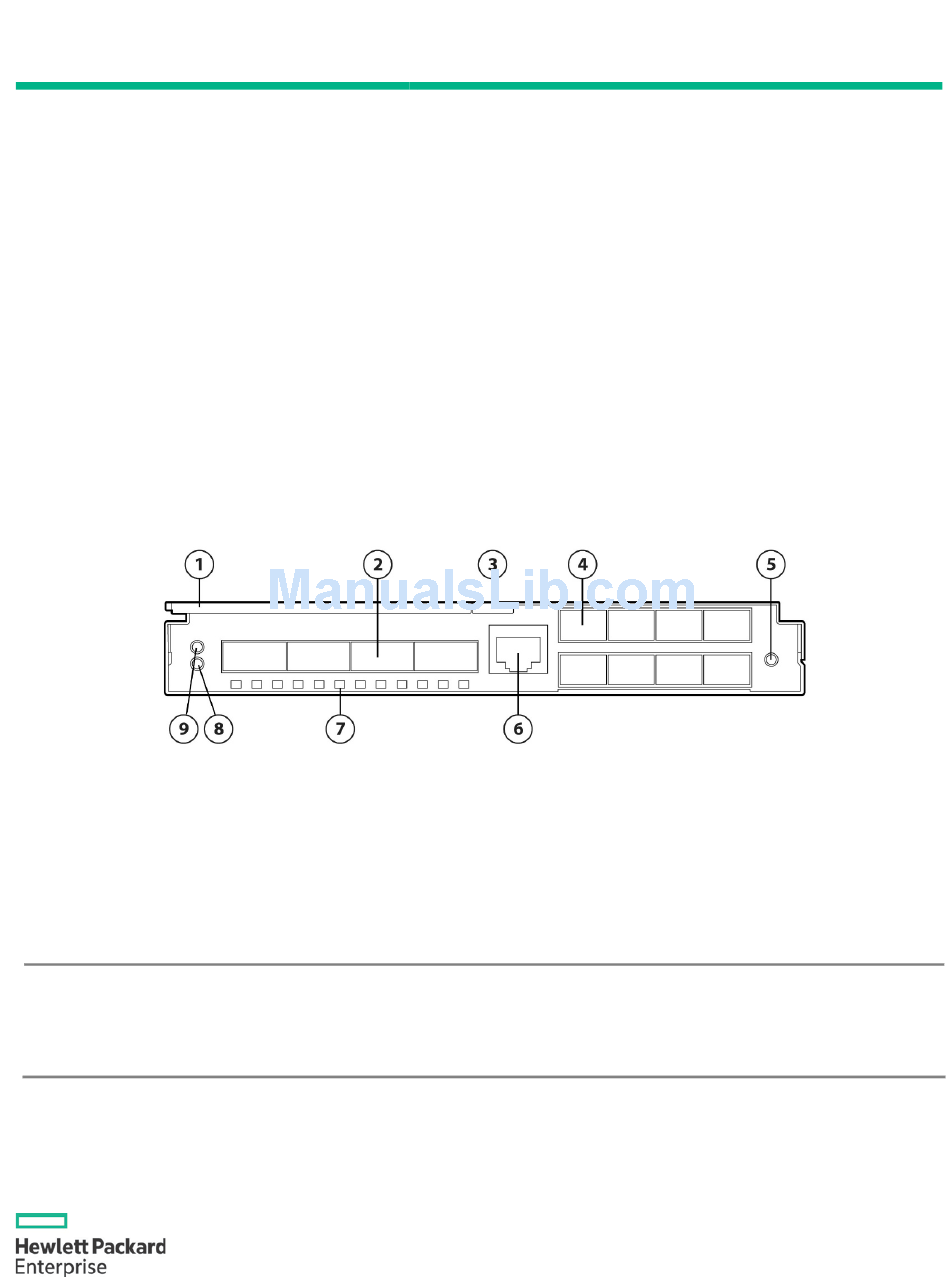

Figure 1 HPE 6125XLG Blade Switch
6. Console port
7. Port LED
8. Health LED
9. Unit ID (UID) LED
HPE 6125XLG Ethernet Blade Switch
711307-B21
737230-B21
B9F40A
