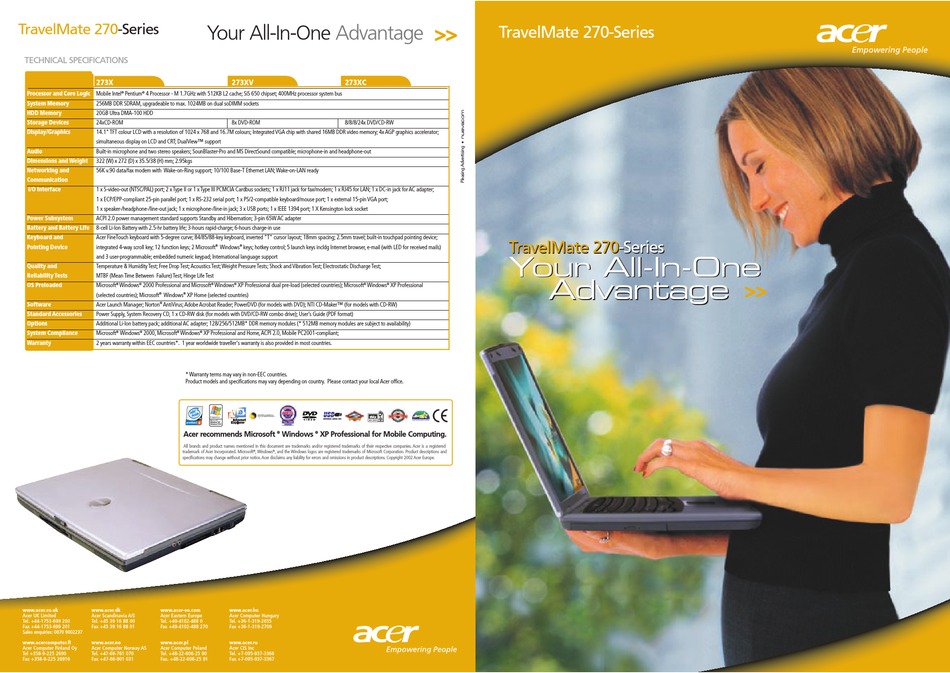

Acer TravelMate 270 Technical Specifications

TravelMate 270-Series
TECHNICAL SPECIFICATIONS
273X
Processor and Core Logic Mobile Intel ® Pentium ® 4 Processor - M 1.7GHz with 512KB L2 cache; SiS 650 chipset; 400MHz processor system bus
System Memory 256MB DDR SDRAM, upgradeable to max. 1024MB on dual soDIMM sockets
HDD Memory 20GB Ultra DMA-100 HDD
Storage Devices 24xCD-ROM
Display/Graphics 14.1" TFT colour LCD with a resolution of 1024 x 768 and 16.7M colours; Integrated VGA chip with shared 16MB DDR video memory; 4x AGP graphics accelerator;
simultaneous display on LCD and CRT; DualView™ support
Audio Built-in microphone and two stereo speakers; SounBlaster-Pro and MS DirectSound compatible; microphone-in and headphone-out
Dimensions and Weight 322 (W) x 272 (D) x 35.5/38 (H) mm; 2.95kgs
Networking and 56K v.90 data/fax modem with Wake-on-Ring support; 10/100 Base-T Ethernet LAN; Wake-on-LAN ready
Communication
I/O Interface 1 x S-video-out (NTSC/PAL) port; 2 x Type II or 1 x Type III PCMCIA Cardbus sockets; 1 x RJ11 jack for fax/modem; 1 x RJ45 for LAN; 1 x DC-in jack for AC adapter;
1 x ECP/EPP-compliant 25-pin parallel port; 1 x RS-232 serial port; 1 x PS/2-compatible keyboard/mouse port; 1 x external 15-pin VGA port;
1 x speaker-/headphone-/line-out jack; 1 x microphone-/line-in jack; 3 x USB ports; 1 x IEEE 1394 port; 1 X Kensington lock socket
Power Subsystem ACPI 2.0 power management standard supports Standby and Hibernation; 3-pin 65W AC adapter
Battery and Battery Life 8-cell Li-Ion Battery with 2.5-hr battery life; 3-hours rapid-charge; 6-hours charge-in use
Keyboard and Acer FineTouch keyboard with 5-degree curve; 84/85/88-key keyboard, inverted "T" cursor layout; 18mm spacing; 2.5mm travel; built-in touchpad pointing device;
Pointing Device integrated 4-way scroll key; 12 function keys; 2 Microsoft
and 3 user-programmable; embedded numeric keypad; International language support
Quality and Temperature & Humidity Test; Free Drop Test; Acoustics Test; Weight Pressure Tests; Shock and Vibration Test; Electrostatic Discharge Test;
Reliability Tests MTBF (Mean Time Between Failure) Test; Hinge Life Test
OS Preloaded Microsoft ® Windows ® 2000 Professional and Microsoft
(selected countries); Microsoft ® Windows ® XP Home (selected countries)
Software Acer Launch Manager; Norton ® AntiVirus; Adobe Acrobat Reader; PowerDVD (for models with DVD); NTI CD-Maker™ (for models with CD-RW)
Standard Accessories Power Supply, System Recovery CD, 1 x CD-RW disk (for models with DVD/CD-RW combo drive); User's Guide (PDF format)
Options Additional Li-Ion battery pack; additional AC adapter; 128/256/512MB* DDR memory modules (* 512MB memory modules are subject to availability)
System Compliance Microsoft ® Windows ® 2000, Microsoft ® Windows
Warranty 2 years warranty within EEC countries*. 1 year worldwide traveller's warranty is also provided in most countries.
* Warranty terms may vary in non-EEC countries.
Product models and specifications may vary depending on country. Please contact your local Acer office.
Acer recommends Microsoft
All brands and product names mentioned in this document are trademarks and/or registered trademarks of their respective companies. Acer is a registered
trademark of Acer Incorporated. Microsoft
specifications may change without prior notice. Acer disclaims any liability for errors and omissions in product descriptions. Copyright 2002 Acer Europe.
www.acer.co.uk www.acer.dk www.acer-ee.com
Acer UK Limited Acer Scandinavia A/S Acer Eastern Europe
Tel. +44-1753-699 200 Tel. +45 39 16 88 00 Tel. +49-4102-488 0
Fax +44-1753-699 201 Fax +45 39 16 88 01 Fax +49-4102-488 270
Sales enquiries: 0870 9002237
www.acercomputer.fi www.acer.no www.acer.pl
Acer Computer Finland Oy Acer Computer Norway AS Acer Computer Poland
Tel +358-9-225 2690 Tel. +47-66-761 070 Tel. +48-22-606-25 90
Fax +358-9-225 26916 Fax +47-66-901 031 Fax. +48-22-606-25 91
Your All-In-One Advantage
273XV 273XC
8x DVD-ROM 8/8/8/24x DVD/CD-RW
® Windows ® keys; hotkey control; 5 launch keys incldg Internet browser, e-mail (with LED for received mails)
® Windows ® XP Professional dual pre-load (selected countries); Microsoft ® Windows
® XP Professional and Home, ACPI 2.0, Mobile PC2001-compliant;
® Windows ® XP Professional for Mobile Computing.
