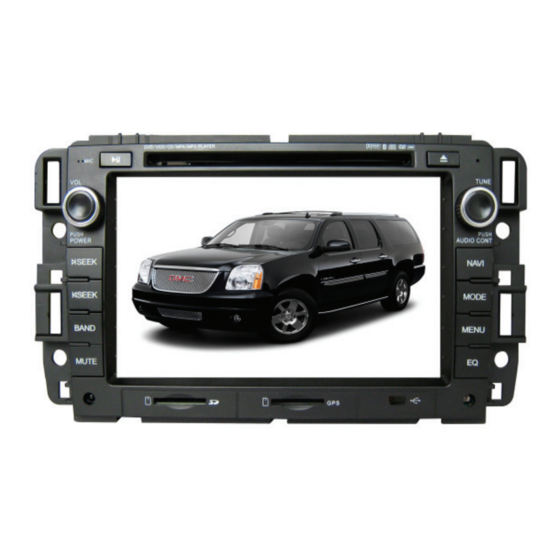

Rosen DS-GM0710 GM Series Installation Manual

Hide thumbs Also See for DS-GM0710 GM Series:

Advertisement

Table of Contents

See also: Owner's Manual
THE ROSEN MULTI-MEDIA NAVIGATION SYSTEMS CONTAIN AN INTERNAL VIDEO PLAYER, WHICH IS
NOT INTENDED FOR VIEWING BY THE DRIVER. THE VIDEO PLAYER IS DISABLED WHEN THE
VEHICLE IS IN MOTION THROUGH A CONNECTION TO THE PARKING BRAKE. THE INSTALLER OF
THIS PRODUCT MUST INSURE THE VIDEO DISABLE CONNECTION IS WORKING PROPERLY PRIOR TO
DELIVERY OF THE VEHICLE. IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR
INTERFERE WITH SAFE OPERATION OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY
ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY OR
PROPERTY DAMAGE THAT MAY RESULT FROM ANY IMPROPER OR UNINTENDED INSTALLATION
BEFORE YOU START THE INSTALLATION, READ THIS GUIDE!
Rosen Multi-Media systems are the easiest-to-install OEM Radio replacement systems available today.
However, we strongly recommend reading this guide before starting the installation!
1 Vehicle Compatibility
The Rosen Multi-Media Navigation System is designed to operate on the GM 29Bit Data CAN Bus. However,
GM Produces some vehicles with an 11Bit Radio which look identical, but are not compatible with this unit.
If your Vehicle is not listed below, contact Rosen Technical Support BEFORE YOU START to confirm
compatibility:
Buick:
Chevrolet:
Pontiac:
GMC:
Saturn:
Note: The Rosen Unit backlighting is Blue/Green which matches most vehicles, however some vehicles use Red
backlighting. Rosen does not offer a GM Navigation System with Red Backlighting at this time.
Rosen Entertainment Systems
Multi-Media Navigation System Installation Guide
NOTICE OF INTENDED INSTALLATION AND USE
OR DEATH, AND COULD ALSO VIOLATE STATE AND/OR FEDERAL LAW.
For additional technical tips, please visit
www.Rosendealercentral.com
Enclave – Lucerne
Avalanche – Equinox – Impala – Silverado – Suburban – Tahoe – Traverse
Torrent
Acadia – Sierra – Yukon
Outlook – Vue
AND/OR USE.
Installation Guide
Copyright 2009 all rights reserved
DP-GM0714IG Rev D
E

Advertisement

Table of Contents
loading

Related Manuals for Rosen DS-GM0710 GM Series

Summary of Contents for Rosen DS-GM0710 GM Series

  • Page 1 1 Vehicle Compatibility The Rosen Multi-Media Navigation System is designed to operate on the GM 29Bit Data CAN Bus. However, GM Produces some vehicles with an 11Bit Radio which look identical, but are not compatible with this unit. If your Vehicle is not listed below, contact Rosen Technical Support BEFORE YOU START to confirm...
  • Page 2 2 Identify The Vehicle Audio System Type BEFORE YOU START you must verify the compatibility of the Rosen Navigation System. GM Vehicles contain a number of different audio systems. The Radio included in this Kit is designed to cover specific GM Configurations.
  • Page 3 Sensors which have been enabled will require the Dealer Service Department to reset them. Dealerships often charge a significant fee to reset the Fault Sensor. Keep the Vehicle OFF while the Radio is disconnected to avoid a potential Airbag Sensor Fault Rosen Entertainment Systems Copyright 2009 all rights reserved Installation Guide...
  • Page 4 Use Caution. See the OEM Service Manual for additional information on the removal process 7 Remove the Factory Radio You will need to remove the Factory Radio and prepare the Rosen Multi-Media unit for installation. The following steps will help guide you through this process.
  • Page 5 You will need to make the Electrical Connections and install the Rosen Unit. The following steps will help guide you through this process. Note: Use caution when locating the wire harnesses to be sure they will not be damaged when the Rosen unit is installed.

  • Page 6: Touch Screen Calibration

    The system was calibrated at the factory; however re-calibrate the system if the touch screen positions do not appear to align with the buttons or icons. Note: There are TWO Touch Screen Calibrations in the Rosen Navigation System. These Touch Screens are calibrated independently as follows;...

  • Page 7: Installer Settings

    Calibrate 12 Installer Settings Installer Settings Screen – The Installer can enable and disable several option features of the Rosen Unit. To access the Installer Settings screen, follow the steps below. Step 1: Select Main from any Step 2: Select the AV Icon...

  • Page 8: Pre-Delivery Test

    There are a number of GM Radios which look identical but operate on different data protocol, you may experience problems if the OE System was not properly identified or if the harness has become damaged. The Following Table will help to Resolve Typical Problems. Installed Rosen System Symptom Cause...
  • Page 9 Set BT Setting to OFF Respond BT is Setting to ON Factory BT Button on Steering Factory BT Reports No Phone BT is Paired with Rosen Set RES BT OFF and Pair with Paired Wheel System – Not Factory Factory System...

  • Page 10: Wiring Diagram

    Camera, Cylinder W/Mount DP-1022 Antenna, GPS DP-1047 GPS Antenna Windshield Mount NOTE: Items marked “*” are not compatible with all systems, contact Rosen Technical Support for specific compatibility. Sourced from GM Dealerships Part Number Description GM17801150 XM Upgrade Kit - OEM...
  • Page 11 XM Audio Harness iPod Interface DP-GM0718 XM / iPod Harness (Optional) Replaces DP-GM0715 Junction Connectors OnStar Backup System AUX Input Satellite Radio :::: ::: ::: :::: Rear Output AV Output Rosen Entertainment Systems Copyright 2009 all rights reserved Installation Guide DP-GM0714 IG Rev D Page 11...
  • Page 12 Installation Guide GM Series www.RosenEntertainment.com Rosen Entertainment Systems Copyright 2009 all rights reserved Installation Guide DP-GM0714 IG Rev D Page 12...
