150M Wireless N ADSL2+ Router

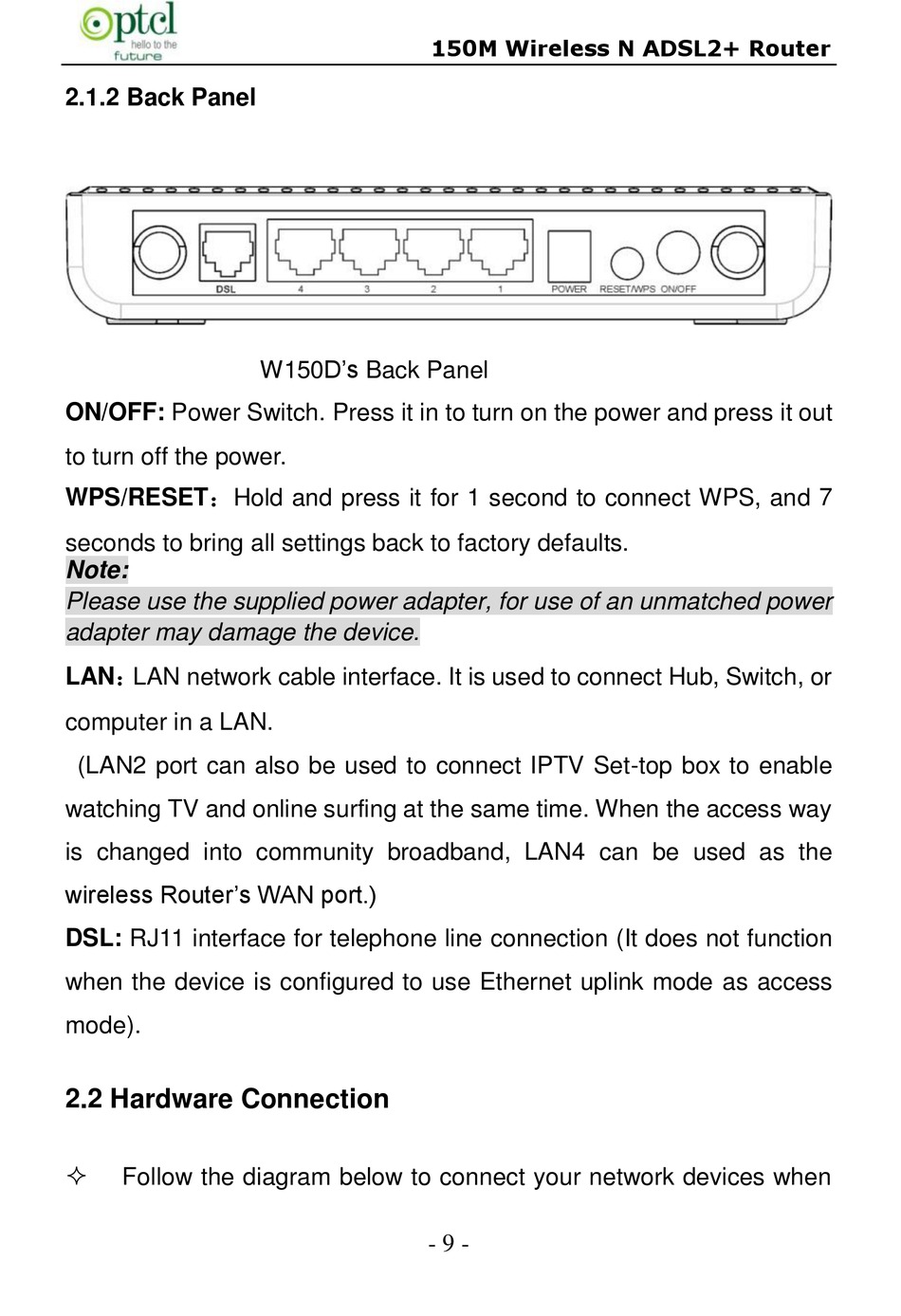

2.1.2 Back Panel

W150D's Back Panel
ON/OFF: Power Switch. Press it in to turn on the power and press it out
to turn off the power.
WPS/RESET：Hold and press it for 1 second to connect WPS, and 7
seconds to bring all settings back to factory defaults.
Note:
Please use the supplied power adapter, for use of an unmatched power
adapter may damage the device.
LAN： LAN network cable interface. It is used to connect Hub, Switch, or
computer in a LAN.
(LAN2 port can also be used to connect IPTV Set-top box to enable
watching TV and online surfing at the same time. When the access way
is changed into community broadband, LAN4 can be used as the
wireless Router's WAN port.)
DSL: RJ11 interface for telephone line connection (It does not function
when the device is configured to use Ethernet uplink mode as access
mode).

2.2 Hardware Connection


Follow the diagram below to connect your network devices when
- 9 -
