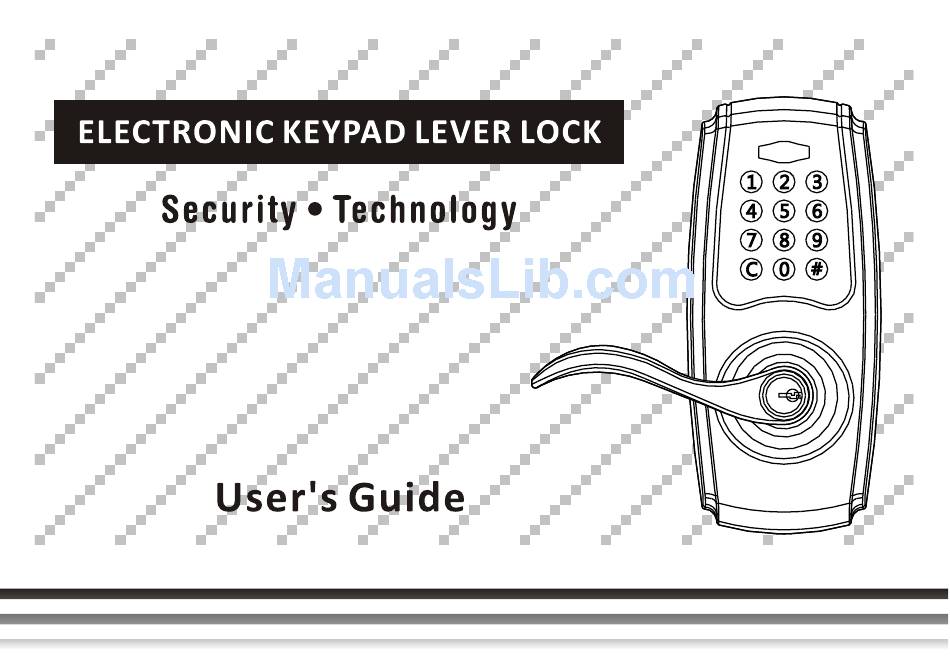

Pamex FKL User Manual

Electronic keypad lever lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FKL and is the answer not in the manual?

Questions and answers

Related Manuals for Pamex FKL

Summary of Contents for Pamex FKL

  • Page 2 IMPORTANT SAFETY INSTRUCTION WARNING 1. To prevent damage to the finish, DO NOT use any abrasives, sharp objects or harsh chemical products containing alcohol, petroleum solvents, acids or acetone to clean this lockset. 2. To prevent damage to the sensitive electronic components, DO NOT allow any liquids to enter lockset while installing or cleaning.
  • Page 3 CONTENTS INSTALLATION INSTRUCTIONS 1. COMPONENTS TEMPLATE 2. DOOR PREPARATION 3. LATCH INSTALLATION 4. STRIKE PLATE INSTALLATION 5. LEVER DIRECTION DETERMINATION 6-1. TO RESET DIRECTION OF INSIDE LEVER 6-2. TO RESET DIRECTION OF OUTSIDE LEVER 7-1. MOUNTING EXTERIOR ASSEMBLY 7-2. PREPARING TO MOUNT INTERIOR ASSEMBLY 7-3.

  • Page 4: Table Of Contents

    CONTENTS MAIN OPERATING INSTRUCTIONS SETUP MODE 1. CHANGE PROGRAMMING CODE 2. ADD A USER CODE 3. DELETE INDIVIDUAL EXISTING USER CODE 4. DELETE ALL THE EXISTING USER CODES AT ONCE 5. DISABLE ALL THE EXISTING USER CODES (VACATION MODE) 6. DISABLE BUTTON SOUND (MUTE MODE) SETTING AUTO-LOCK TIME DELAY 8.
  • Page 5 INSTALLATION INSTRUCTIONS 1. COMPONENTS A. Key B. Exterior Assembly C. Mounting Plate D. Interior Assembly E. Decorative Cover F. Battery Pack Cover G. Lever H. 5/16''(7.8mm) Screw (2) I. 1-1 /4'' (32mm) Screw (2) J. Latch K. 6/8''(19.2mm) Wood Screw (4) L.

  • Page 6: Template

    TEMPLATE IMPORTANT BEFORE PROCEEDING 1. Remove lever lock, or do not install lever lock prior to painting your door. Do not let any water or liquid into the lockset during installation process. NOTE:MEASUREMENTS BELOW ARE JUST A GUIDELINE. Please measure your door to determine the exact center of your door edge.

  • Page 8: Door Preparation

    DOOR PREPARATION 2. DOOR PREPARATION NOTE: If replacing an existing lock or installing in a pre-drilled door, begin with page 7. Fold the template against the door edge as shown in below illustration, mark and drill a pilot hole for latch on door edge, select backset (60mm or 70mm) to mark and drill a pilot hole for selected backset on door face.
  • Page 9 INSTALLATION INSTRUCTIONS 3. LATCH INSTALLATION 60mm(2-3/8'') Drive-shaft B. Push the drive-shaft forward for adjustment to 60mm(2-3/8''). 70mm(2-3/4'') Drive-shaft A. Pull the drive-shaft backward for adjustment to 70mm(2-3/4'').
  • Page 10 INSTALLATION INSTRUCTIONS 3. LATCH INSTALLATION A. Insert the latch into the latch hole. Using the faceplate as a pattern, TRACE a line along the out edge of the faceplate and chisel a 4mm (1/8") slot in the marked out area. Face plate should fit flush with door edge.
  • Page 11 INSTALLATION INSTRUCTIONS 4. STRIKE PLATE INSTALLATION A. Placing the strike plate on the door frame, TRACE a line along the out edge of the strike plate and chisel a 3mm (1/8") slot in the marked out area. B. Chisel out a hole measuring 32 x 24 x 13mm (1-1/4''X1''X1/2'') in association with the size of the dust box.
  • Page 12 INSTALLATION INSTRUCTIONS 5. LEVER DIRECTION DETERMINATION NOTE: Do not install the lock when the lever is at vertical position. Before lock installation, please determine the inside lever direction according to the opening direction of door as shown.
  • Page 13 INSTALLATION INSTRUCTIONS 5. LEVER DIRECTION DETERMINATION NOTE: Do not install the lock when the lever is at vertical position. Before lock installation, please determine the outside lever direction according to the opening direction of door as shown.
  • Page 14 INSTALLATION INSTRUCTIONS 6-1. TO RESET DIRECTION OF INSIDE LEVER Press the button below ''SWITCH'' mark of the interior assembly to free inside lever and turn it upward then down to the correct horizontal direction with the door. Lever will be fixed in position after a sound of ''click''.
  • Page 15 INSTALLATION INSTRUCTIONS 6-2. TO RESET DIRECTION OF OUTSIDE LEVER Use a screwdriver to press the button in the hole below ''SWITCH'' mark of the exterior assembly to free outside lever and turn it upward and then down to the correct horizontal direction with the door.
  • Page 16 INSTALLATION INSTRUCTIONS 7-1. MOUNTING EXTERIOR ASSEMBLY A. Slide the spindle and screw posts through the latch and thread the cable under the latch. B. Thread the cable through the rectangular hole in the mounting plate and combine the posts of the mounting plate and the exterior assembly.
  • Page 17 INSTALLATION INSTRUCTIONS 7-2. PREPARING TO MOUNT INTERIOR ASSEMBLY A. Remove battery pack cover by pushing it up to the top position. (Please follow two steps ) B. Remove the lever by inserting the catch tool into the access hole and depressing to release catch while gently pulling on lever.
  • Page 18 INSTALLATION INSTRUCTIONS 7-3. REMOVING DECORATIVE COVER A. Remove decorative cover by holding fingers at cover's edges as shown in photo A. B. Use thumbs to press ''THUMBTURN'' as shown in photo B and photo C.
  • Page 19 INSTALLATION INSTRUCTIONS 7-4. MOUNTING INTERIOR ASSEMBLY A. Insert the cable into the connector port firmly with blue wire just under the red black wires of the port as shown. B. Slide the interior assembly onto square spindle of the exterior assembly. C.
  • Page 20 INSTALLATION INSTRUCTIONS 7-5. BATTERY INSTALLATION A. Snap the decorative cover back onto the interior assembly. B. Place four alkaline batteries into the battery pack. Following the imprinted '' +/- '' guide. C. Replace the battery pack cover as shown.
  • Page 21 INSTALLATION INSTRUCTIONS 7-6. REINSTALL LEVER Reinstall the lever after the decorative cover is snapped back onto the interior assembly. NOTE: If you follow page 10-13 to change inside and outside levers to proper direction, you can skip the following instructions about exchange of lever to setup mode started in page 28.
  • Page 22 INSTALLATION INSTRUCTIONS 8-1. EXCHANGE OF LEVER For lever removal and assembly process, please see page 21-25.
  • Page 23 INSTALLATION INSTRUCTIONS 8-2. EXCHANGE OF LEVER (REMOVAL OF INSIDE LEVER) Insert the catch tool into the access hole on the lever. Once the lever is released, remove the catch tool and pull the lever off. Catch tool...
  • Page 24 INSTALLATION INSTRUCTIONS 8-3. EXCHANGE OF LEVER (REMOVAL OF OUTSIDE LEVER) A. Insert the key horizontally and turn counter-clockwise 90 degrees. B. Insert the catch tool into the access hole on the lever. Once the lever is released, remove the catch tool and pull the lever off. NOTE: This step is required if you are rekeying the lock.
  • Page 25 INSTALLATION INSTRUCTIONS 8-4. SWAP INSIDE AND OUTSIDE LEVERS (REMOVAL OF CYLINDER) A. With lever removed, withdraw the key. B. Slide the cylinder retaining collar off the shank of the lever. C. Remove the cylinder. D. Insert cylinder into the other lever. Align the tab of the cylinder retaining collar with the slot of lever shank and push it back to secure cylinder in place.
  • Page 26 INSTALLATION INSTRUCTIONS 8-5. SWAP INSIDE AND OUTSIDE LEVERS (ASSEMBLE OUTSIDE LEVER) A. Turn the key counter-clockwise by 90 degree to vertical position as shown. B. Push outside lever back to slide onto spindle until it is securely engaged.
  • Page 27 INSTALLATION INSTRUCTIONS 8-6. SWAP INSIDE AND OUTSIDE LEVERS (ASSEMBLE INSIDE LEVER) Align inside lever and push it back to slide onto spindle until it is securely engaged.

  • Page 28: Main Operating Instructions

    MAIN OPERATING INSTRUCTIONS 1.Indicator 4.Confirm Button 2.Keypad 6.Thumbturn 3.Cancel Button (Auto-Locked/ Unlocked switch) 7.Low Battery Indicator 5.Key Override...
  • Page 29 MAIN OPERATING INSTRUCTIONS...

  • Page 30: Setup Mode

    SETUP MODE IMPORTANT : The internal thumbturn enables / disables exterior lever. The internal thumbturn is horizontal position to be unlocked (passage lock). The internal thumbturn is vertical position to be auto-locked (entry lock). Please DO NOT press the lever when programming the lockset 1.CHANGE PROGRAMMING CODE ( THIS PROGRAMMING CODE MUST BE 6-DIGITS IN LENGTH) (1) The pre-set programming code of the product is 123456, please change it before operating the lockset.

  • Page 31: Add A User Code

    SETUP MODE 2. ADD A USER CODE (MAXIMUM 100 SETS USER CODES WITH 4-8 DIGITS IN LENGTH.) 2. ADD A USER CODE (MAXIMUM 100 SETS USER CODES WITH 4-8 DIGITS IN LENGTH.) Procedures: (1) Rotate the internal thumbturn to horizontal position press # (the red indicator is on, you are in setup mode) (2) Input programming code...

  • Page 32: Delete All The Existing User Codes At Once

    SETUP MODE 4. DELETE ALL THE EXISTING USER CODES AT ONCE 4. DELETE ALL THE EXISTING USER CODES AT ONCE Procedures (1) Rotate the internal thumbturn to horizontal position press # (the red indicator is on, you are in setup mode) (2) Input programming code press# press 40...

  • Page 33: Disable Button Sound (Mute Mode)

    SETUP MODE 6.DISABLE BUTTON SOUND (MUTE MODE) 6.DISABLE BUTTON SOUND (MUTE MODE) Procedures (1) Rotate the internal thumbturn to horizontal position press # (the red indicator is on, you are in setup mode) (2) Input programming code press# press 60 press#.

  • Page 34: Operation Mode

    OPERATION MODE 1. TO ACTIVATE AUTO-LOCKING (AUTOMATIC RE-LOCKING) 10-3. TO LOCK A. Use a flat tool to turn the thumbturn on the inside to vertical position as shown to activate auto-locking mode, i.e., this device will be relocked automatically in 5 seconds (default value) after unlocking.

  • Page 35: To Open (Unlock) The Door

    OPERATION MODE 2. TO OPEN (UNLOCK) THE DOOR A. Enter the correct user code or programming code. B. Upon the green indicator light on and a short beep heard, turn the outside lever to unlock.

  • Page 36: To Deactivate Auto-Locking (Automatic Re-Locking)

    OPERATION MODE 3. TO DEACTIVATE AUTO-LOCKING (AUTOMATIC RE-LOCKING) Use a flat tool to turn the slotted turn on the inside as shown from vertical position to horizontal position to deactivate auto-locking mode. The device is then served as a passage lever.

  • Page 37: Troubleshooting Guideline

    TROUBLESHOOTING GUIDELINE Problem Solutions 1. Check to see if the batteries are properly installed. A. Keypad does not respond 2. Check to see if the indicator is flashing. It means "the battery is low" if the indicator keeps flashing. 3. Make sure the cable is well-connected to the port. 4.
  • Page 38 TROUBLESHOOTING GUIDELINE Problem Solutions 1. Make sure you have entered the correct user code. E. Can not open the door after input 2. Check to see if the indicator is flashing. If the indicator is a correct flashing, please replace the batteries with new ones. 3.

  • Page 39: Data Records

    DATA RECORDS SECURITY INSTRUCTIONS 1. Do not share your programming code with anyone else. 2. Keep a written copy of all valid user codes in safe place. (You may use the table below to record your information) 3. Code capacity: 100 sets maximum. 4.
  • Page 40 FEDERAL COMMUNICATIONS COMMISSION STATEMENT This device complies with Part 15 of the FCC. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 41 IC REGULATIONS This Class B digital apparatus complies with Canadian ICES-003 . Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. This device complies with Industry Canada licence-exempt RSS-210 standard. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.
