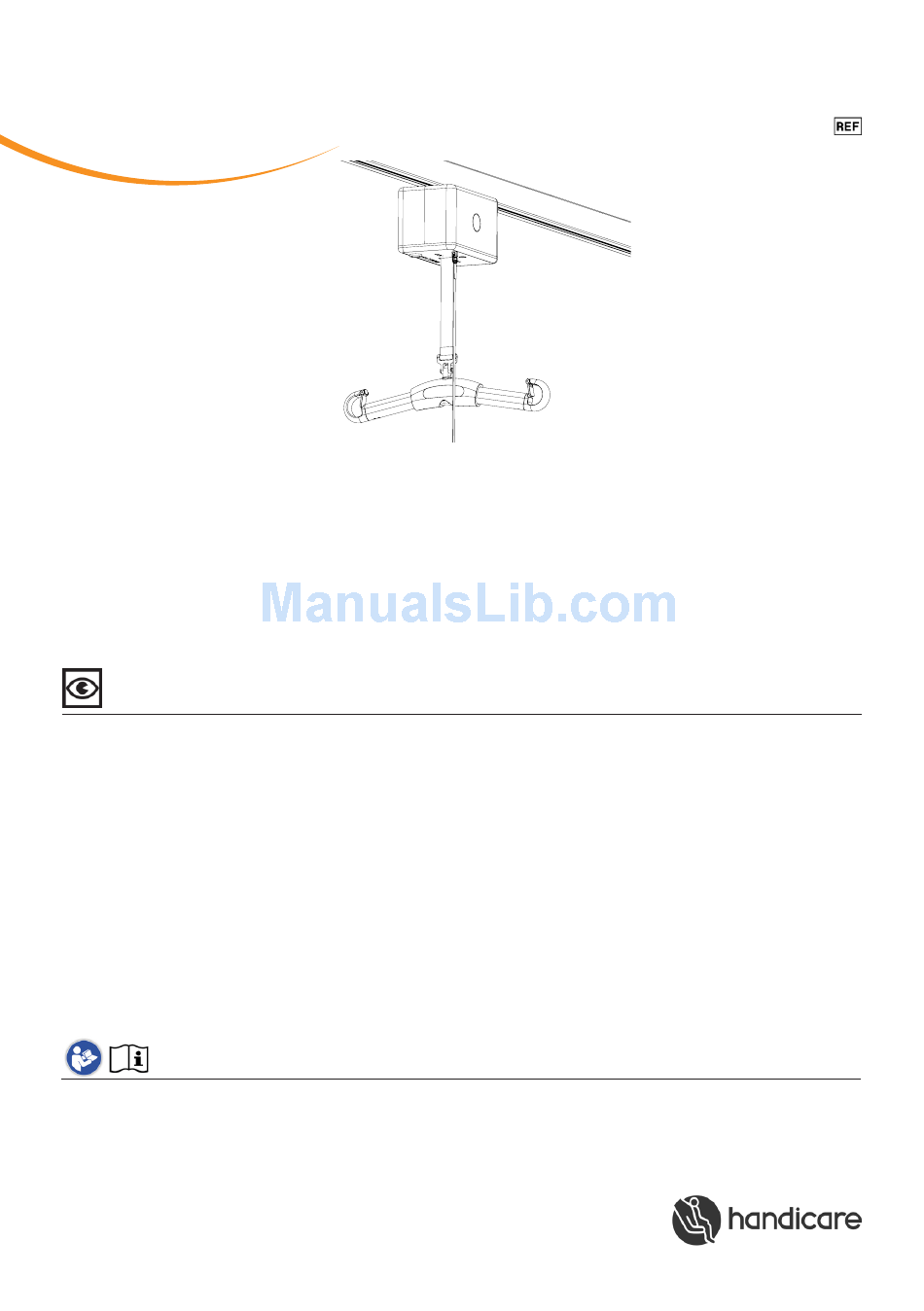

RiseAtlas450M,
with QuickTrolleySystem
SystemRoMedic
TM
RiseAtlas450M is a safe and easy-to-use stationary ceiling lift unit which can be used in all settings and in all types of
rooms, both on permanent rail systems and on portable, freestanding lift stands. When used with the appropriate lifting
accessories, RiseAtlas450M provides secure, comfortable and individually adapted lifting of users in connection with
seated or horizontal transfers to and from the bed, wheelchair or toilet. RiseAtlas450M offers a large lifting area and
the possibility of both very low and very high lifting, making it an excellent solution also for lifting from the floor and for
gait training and standing training. RiseAtlas450M can also be used for convenient transfer of users from one room to
another. RiseAtlas450M is manually transferred along the rail (M for manual) and features Handicare's unique
SystemRoMedic™ QuickTrolleySystem. This model is fitted with a quick release trolley which readily allows for
dismantling of the ceiling lift unit from the rail.
Functional inspection
Visual inspection
Inspect lift functions regularly. Check to ensure that product is free from damage.
Before use:
Ensure that the product is correctly mounted in the trolley.
Check rail end stops.
Check sling bar connection and safety latch function.
Check lifting movement.
Inspect the lift for signs of wear and damage.
Check the hand control cable for signs of wear.
Check to ensure that hand control markings coincide with lift functions.
Check battery charge level.
Always read the user manual
Always read the user manuals for all assistive devices used during a transfer.
Keep the user manual where it is accessible to users of the product.
Under no circumstances may the lift be used by persons who have not received instruction in the operation of the lift.
It is strongly prohibited to modify the original product.
Manual nr: 706-En Rev 6
User Manual - English
50100057 (RiseAtlas450M)
50100051 (RiseAtlas450M, high humidity)
SWL: 205 kg/450 lbs
