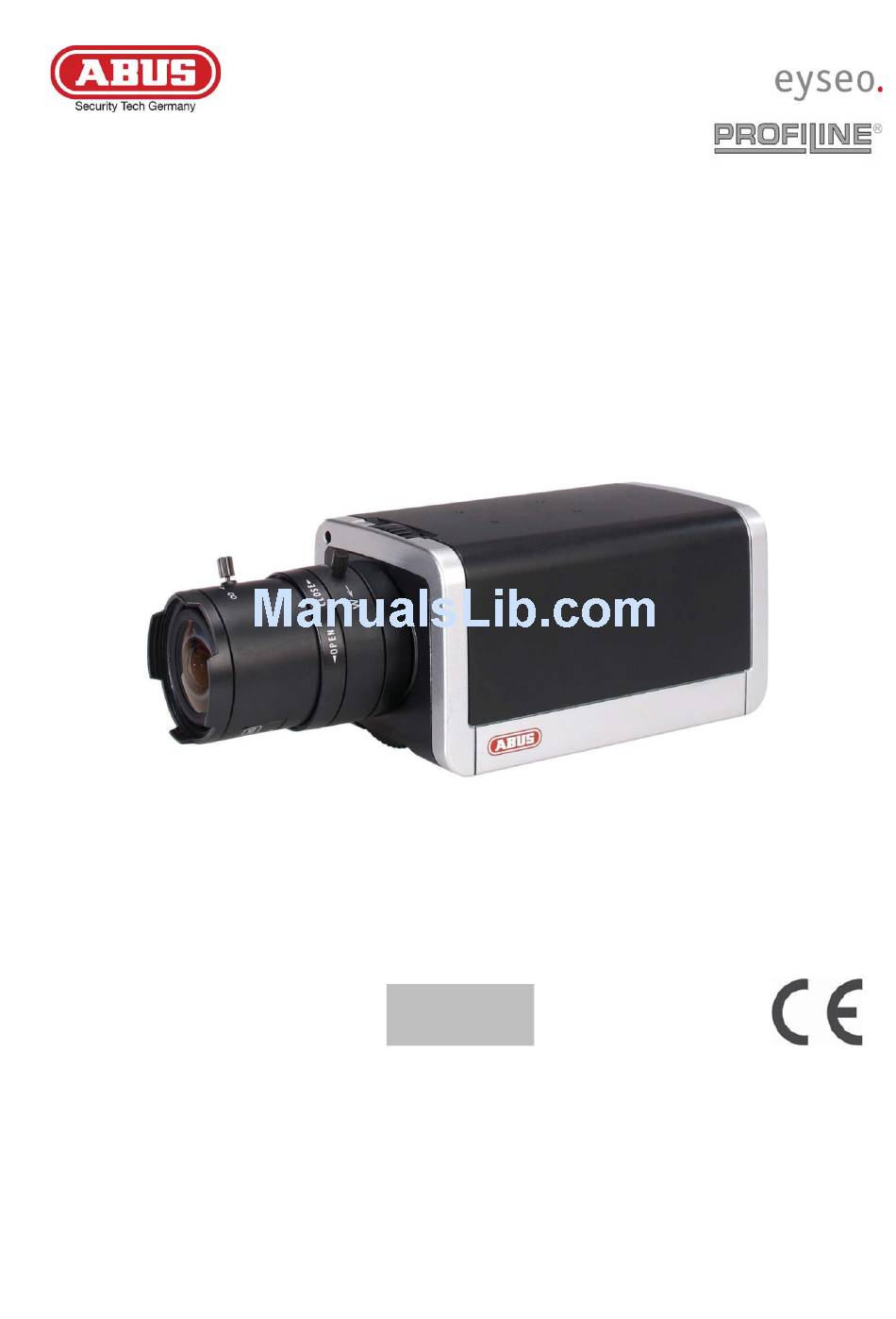

- Page 1 WDR DNR Day/Night 650 TVL Camera Profiline TVCC50030 TVCC50530 Version 07/2010 Original English user manual. Keep for future use.
- Page 2 The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.
-
Page 3: Important Safety Instructions
Important safety instructions The warranty will expire for damage due to non-compliance with these operating instructions. We shall not be liable for any consequential loss! We do not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions. -
Page 4: Table Of Contents
Table of contents INTENDED USE ......................27 EXPLANATION OF SYMBOLS .................. 27 SCOPE OF DELIVERY ....................27 FEATURES AND FUNCTIONS ................... 27 DESCRIPTION OF DEVICE ..................28 5.1 O – ..................28 VERVIEW ARTICLE NUMBERS 5.2 U ......................... 28 NPACKING MOUNTING ......................... -
Page 5: Intended Use
This symbol can be found when you are to be given tips and information on operation. 3. Scope of delivery ABUS WDR DNR Day/Night 650 TVL Standard Camera C-Mount lens adapter ring Mounting bracket and screws for camera bracket... -
Page 6: Description Of Device
TVCC50530 TVCC50030 TVCC50030 is run by a 12 VDC / 24 VAC power supply. The polarity can be ignored. In order to connect a 12 VDC power supply (DC Connector 5.5mm x 2.1mm) to the camera you have to first install the included connector cable. Therefore you need to press the pins and insert the cable ends into the terminals. -
Page 7: Lens Mounting
6.2 Lens mounting The camera is designated for lenses with CS-Mount. A lens with C-Mount can be mounted with the enclosed lens adapter ring. Before a lens with C-Mount can be mounted, please make sure that the lens adapter ring is mounted on the camera. Otherwise you may damage the image sensor. For lenses with DC-drive the connector for the lens cable is on the right side of the camera. -
Page 8: Rear View
7. Rear view 12VDC Variante 110~240VAC Variante OSD menu buttons (2) Relay output (triggered by motion, max. 60VDC/400mA) (3) Power Supply (12VDC/24VAC or 110~240VAC) (4) Status LED (active if power is connected) (5) BNC Video output (MONITOR) (6) BNC Video output (VIDEO) Buttons Function Enter : Enter menu / execute... -
Page 9: On Screen Display (Osd)
8. On Screen Display (OSD) Function Description Quick Install Fast setup of the most important parameters Advanced Menu Detailed setup of all camera parameters Exit Leave the main menu completely. Quick Install For an easy configuration of this camera the function „Quick Install“ was implemented. This function leads you through the most important camera settings, to get the best camera parameter in a fast way at given illumination situations. - Page 10 Focus Adjust The function „Focus Adjust“ is used to be able to setup the image focus perfectly. The lens aperture will be set to maximum in this mode. To move to the next step inside “Quick Install” please activate the menu item “Next” in the On-Screen-Display.
- Page 11 Advanced Menu Advanced Menu Exposure WD.. White Balance Enhance .. Auto .. Detect Miscellaneous .. Restore Default Back Exit Function Description Exposure Settings for camera exposure mode White Balance Settings for white balance mode Enhance Settings for picture improvement Day / Night Setup Day/Night control settings Detect Settings for motion detection...
- Page 12 changing illumination conditions. Only Auto Iris lenses can be used in this mode. Shutter (Auto, 1/50~1/10000) Auto : Automatic control of the exposure time 1/5~1/10000 : Fixed exposure time to be selected (1/50 – slow, 1/10000 – fast) BLC (On/Off) On : Backlight compensation on Off : Backlight compensation off The exposure control is setup to image scenes with constant...
- Page 13 White Balance Function Description Auto Tracking White Balance The white balance will be performed dynamically and continuously in a range of 1800~10500K. Auto White Balance The white balance is performed once at a restart of the camera. Push to Lock The white balance will be performed after pressing the „Enter“...
- Page 14 Off : Image integration deactivated 2X~128X : Image integration activated at selected integration rate. The image integration will be only active in low light conditions. Digital Noise Reduction, DNR Off : Digital noise reduction deactivated 2D DNR : Digital noise reduction optimized for static image objects.
- Page 15 Detection Setup (Detect) Function Description All detection function of the camera are deactivated. Motion The motion detection of the camera is active and can be further configured. There are 8x8 field available for marking the detection area. L/R Move : The frame to mark a field can be moved using the buttons Left/Right at the camera back side.
- Page 16 Miscellaneous Misc Menu Mirror Mask .. Camera ID Winker E-Zoom Back Exit Function Description Mirror Mirror of the image Off : Mirror deactivated Horizontal mirror activated Vertical mirror activated H/V : Horizontal and vertical mirror activated Mask Settings for privacy masking Mask (1 ~ 16) : Configuration and activation of up to 16 privacy masks;...
- Page 17 Winker Live image verification The function „Winker“ will realize a live image verification, this is done by a blinking sign in the live image. Off : Live image verification deactivated On : Live image verification activated E-Zoom Digital zoom The center of the image can be magnified digitally, this value will be stored and used on leaving the main menu to live screen.
-
Page 18: Servicing And Cleaning
9. Servicing and cleaning 9.1 Function test Check the technical safety of the product such as damage to the housing at regular intervals. When it can be assumed that the safe operation is no longer possible, the product must be put out of service and precautions taken o ensure that it is not used unintentionally. -
Page 19: Technical Data
Technical data Article number TVCC50030 TVCC50530 Videosignal Resolution 650 TVL 650 TVL Image sensor 1/3" Sony Interline Super HAD II Dual Scan CCD SONY Effio 1028(H) x 596 (V) Picture elements (total) Picture elements (effective) 976(H) x 582 (V) Signal-to-noise ratio...
