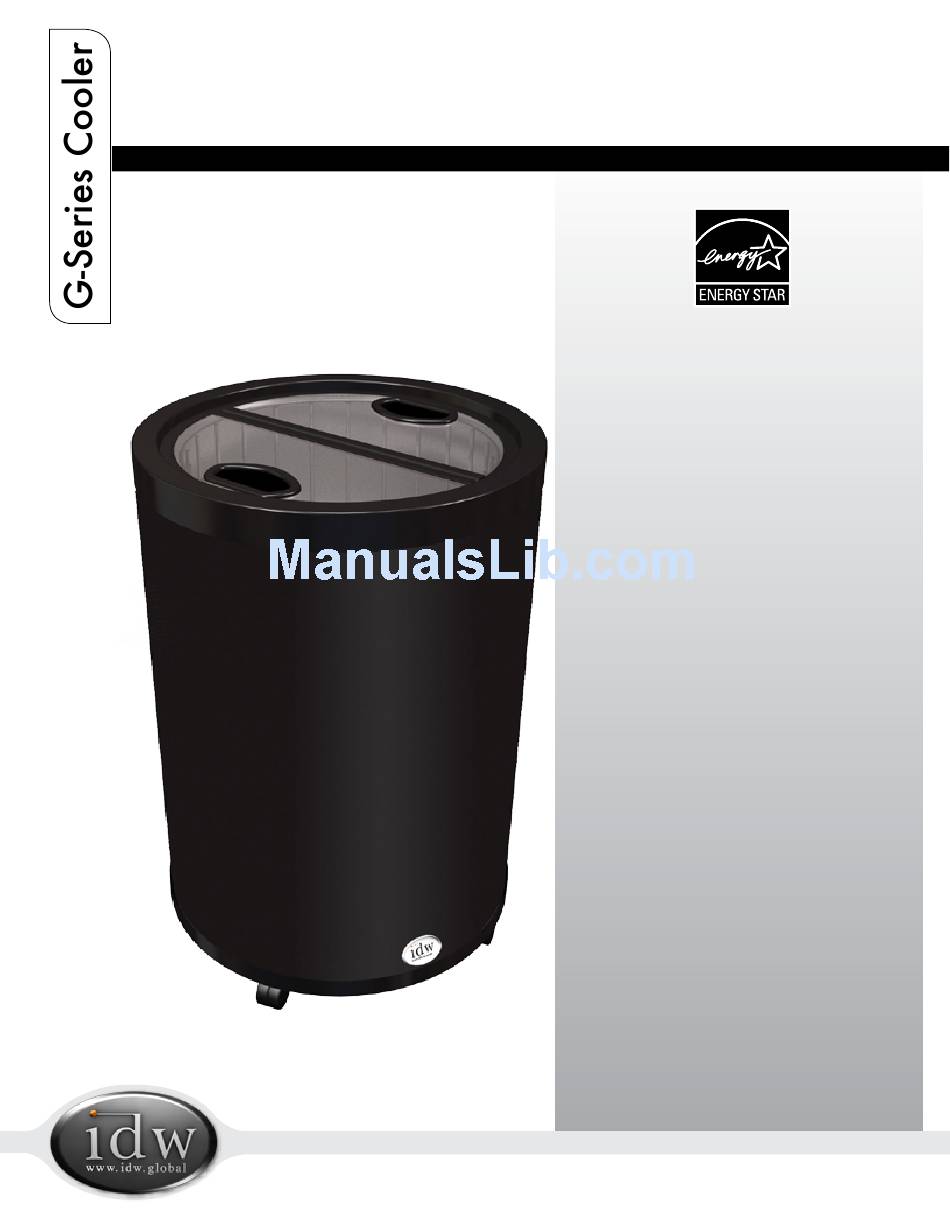

- Page 1 G-77 ELECTRIC IMPULSE COOLER Manual is for the following model: G-77-N23EN Instruction Manual...
- Page 2 Manual is for the following model: G-77-N23EN Instruction Manual G-77...
-
Page 3: Table Of Contents
G-77 FOR YOUR FUTURE REFERENCE • This easy-to-use manual will guide you in getting the best use of your cooler. • Remember to record the model number and the serial number. This information can be found on the inside of your cooler. •... -
Page 4: Parts And Identification
22. Lid Clip(2) Thermostat 23. Basket 10. Power Cord 24. Evaporator Baffl e Power Cord Clip 25. Evaporator Fan Cover 12. Thermostat Wire 26. Evaporator Fan 13. Transformer Connecting Line Evaporator Fan Grill 14. Ground Line Innovative DisplayWorks offi ce 909.447.8254 • fax 909.305.8756 • toll free 877.307.2665 • www.idw.global Last Revised: September 30, 2015 12:19 PM... -
Page 5: Safety Instructions
4. IDW requires that a dedicated circuit be used for the unit. Failure to do so voids warranty. 5. Never unplug your cooler by pulling on the power cord. Always grasp the plug fi rmly and pull it straight out from the outlet. -
Page 6: Preparation
• Remove all packaging materials before using cooler. This includes: foam pedestal, adhesive tape (used to fi x accessories) and protective gaskets. • Inspect cooler for concealed damage. Immediately fi le a claim with the freight carrier if there is damage. IDW is not responsible for damage incurred during shipping. -
Page 7: Location
G-77 LEVELING/LOCATION • Place unit in a well-ventilated area. • WARNING: Warranty is void if ventilation is insufficient. • Unit must be leveled for proper operation, this will help prevent condensation. • The cooler should be leveled front to back and side to side with a leveler. INSTALLATION AND OPERATION • Connect the Power Source. After 30 minutes of operation, the unit should show signs of cooling. • After the empty cooler has been operating for a period of 5 hours, the unit can be loaded with products. CLAMP INSTALLATION The clamp secures the lid assembly to the main body of the cabinet Locate the (2) notches on the interior of the lid Snap the (2) bolts into the notches of the lid. Screw the clamps onto the bolts. Hook the two clamps onto the center bar of the basket. Innovative DisplayWorks... -
Page 8: Beverage Storage
Instruction Manual BEVERAGE STORAGE • Do not overload the cooler beyond the red limitation line. • Leave adequate space between beverage cans to allow air circulation. • This cooler is primarily for storing beverage cans and plastic bottles. Avoid putting glass containers in the cooler. • All beverage products should be properly sealed to avoid leaking into the cooler. MAINTENANCE Accessing Cooler Components: Remove the basket from the inside of the cooler. Remove the baffler from cooler. Using a Phillips screwdriver, unscrew the (4) screws at the base of the cooler. -
Page 9: Changing Graphics
G-77 The body of the cooler can now be worked free from the frame. Lay the body of the cooler on its side to access components. To re-assemble the cooler align the notch at base of the body with the cooler cord. Then reverse steps 1-5. Changing Electric Impulse Cooler Graphics: Place graphic around barrel, making sure to align the grill holes in the graphic with the grill holes on the cooler to allow proper ventilation for the cooler. Wedge the graphic under the plastic frame of the cooler. Remove the covering on the double-stick tape to adhere the graphic in place. Innovative DisplayWorks... -
Page 10: Cleaning
Cleaning • Before cleaning the appliance, always remember to unplug it. • Unplug the cooler at the electrical outlet; never pull the service cord. Instruction Manual • Do not use sharp or pointed objects for cleaning. • Clean the inside cabinet of the cooler with a clean damp cloth. Avoid damage by using non-abrasive and non- fl... -
Page 11: Troubleshooting
G-77 TROUBLESHOOTING If your cooler is not working properly: • Check the electrical outlet for power, and that the plug is properly inserted. • Check to see if the circuit breaker is tripped or the fuse is blown. • Check the condenser for proper cleaning. If your cooler is making noise: •... -
Page 12: Circuit Diagram
Instruction Manual CIRCUIT DIAGRAM... -
Page 13: Innovative Displayworks
G-77 Innovative DisplayWorks... - Page 14 Innovative DisplayWorks, Inc. To locate the distributor in your area go to: http://www.idw.global/contact/#distributors...
