SERVICE AND REPAIR MANUAL
AIRWAVE OCTO
PN RG320
Service & Repair Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Airwave Octopus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for XS Scuba Airwave Octopus

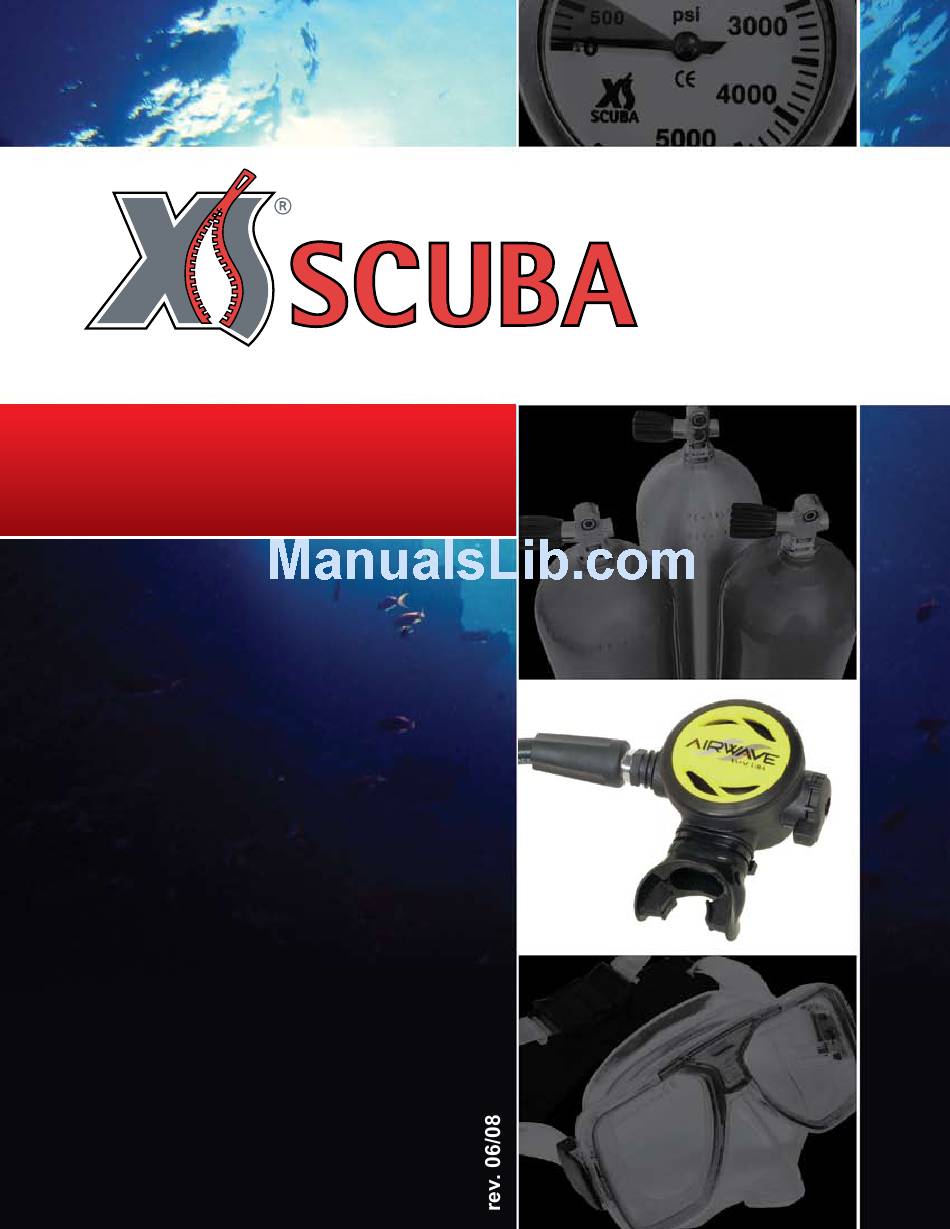

  • Page 1 SERVICE AND REPAIR MANUAL AIRWAVE OCTO PN RG320 Service & Repair Manual...
  • Page 2: Table Of Contents

    AirWave Octo Contents Section 1 - Introduction Warnings, Cautions, & Notes ........................ 3 Scheduled Service..........................3 EAN/ Nitrox Service ..........................3 Facility Requirements ..........................4 Specialty Tools ............................5 Section 2 - Preliminary Inspection External Inspection ..........................6 Immersion / Leak Test ........................... 6 Intermediate Pressure Test ........................
  • Page 3: Section 1 - Introduction

    XS Scuba representative. EAN/ Nitrox Service Newly manufactured XS Scuba regulators are assembled and packaged to be compatible with oxygen enriched air (EAN/ Nitrox), not to exceed 40% oxygen content. If the regulator is going to be used for this application, however, it must be dedicated and clearly labled as such, in order to prevent any crossover use with standard compressed air.
  • Page 4: Facility Requirements

    AirWave Octo Facility Requirements As an Authorized XS Scuba Dealer, your customers expect you to provide top-notch overhaul service, both before and after the sale. Next to airfills and gas blending, it is the single most important com- modity your store can provide.
  • Page 5: Specialty Tools

    1/4" Nut Driver PN #11-168-500 Small (.02) Blade Screwdriver PN #11-133-500 Cristo Lube PN #MS150 Hakko Side Cuts, 5" PN #16-020-500 Galion, OH 44833 Snap Ring Pliers Phone: 419-468-2212 11/16" Open End Wrench www.scubatools.com 3/4" Open End Wrench Copyright ©2008 XS Scuba...
  • Page 6: Section 2 - Preliminary Inspection

    AirWave Octo Preliminary Inspection External Inspection 1. Closely examine the conical filter to check for any signs that contaminants have entered the system, including sea water, rust, or aluminum oxide. NOTE: A green discoloration of the filter indicates that moisture has entered the regulator, and internal corro- sion has possibly occurred.
  • Page 7: Intermediate Pressure Test

    - 3,000 psi. 5. Close the supply valve and depress the second stage purge button to depressurize the system before attempt- ing to perform any disassembly. ▼ After completing the Preliminary Inspection, proceed to Section 3 – Disassembly Copyright ©2008 XS Scuba...
  • Page 8: Section 3 - Disassembly Procedures

    AirWave Octo Disassembly Procedures General Guidelines ▼ Prior to performing any disassembly, check to ensure that the service facility is well equipped with all the tools and parts needed to perform a complete service from start to finish. DO NOT attempt to perform the service unless all of the required tools and parts are available.
  • Page 9 NOTE: If the retaining ring is difficult to loosen, XS Scuba recommends using the Rim Clamp (P/N 20-790-200), available from Peter Built Co. Complete instructions are provided with the tool.
  • Page 10 AirWave Octo 8. Lift out the diaphragm(4) and thrust washer(3) from the second stage housing. Inspect the diaphragm to ensure that it is supple and free of any pinholes, tears, corrosion, or other damage. If any damage is found, discard it and replace with new.
  • Page 11 ▼ After completing the disassembly of the first and second stages, refer to the instructions provided in the XS Scuba Authorized Service Document, titled - Regulator Parts Cleaning Procedures. Copyright ©2008 XS Scuba...
  • Page 12: Section 4 - Reassembly Procedures

    CAUTION: The use of aerosol spray or petroleum based lubricants must be strictly avoided. The propellant gas or pe- troleum base may attack or weaken plastic or rubber parts. Use all replacement parts provided in the XS Scuba Authorized ▼ Dealer parts kit.
  • Page 13 Second Stage Reassembly WARNING: DO NOT attempt to use any other manu- facturer's part as a substitute for any XS Scuba part, regardless of any similarity in shape, size, or appear- ance. Doing so may render the product unsafe, and Fig.
  • Page 14 AirWave Octo 7. Apply a light coat of lubricant to both ends of the poppet spring(4), and place the spring over the small end of the poppet, inside the air barrel. Be careful not to disturb the the orientation of the poppet inside the air barrel. 8.
  • Page 15 Trim the excess material close to the locking tab. ▼ After completing the reassembly of the second stage, proceed to Section 5 – Final Testing Fig. 20 – Preliminary Orifice Setting Copyright ©2008 XS Scuba...
  • Page 16: Section 5 - Final Testing Procedures

    AirWave Octo Final Testing Procedures CAUTION: If the regulator will be used with EAN/ Nitrox, it is important to pressurize and flow test the regulator using only hydrocarbon-free gas. The regula- tor will otherwise become contaminated with hydrocar- bons if normal compressed air is used. Industrial grade compressed Nitrogen is strongly recommended as a lower cost alternative to EAN/ Nitrox for the purposes of flow testing.
  • Page 17: Second Stage Adjustment And Flow Test

    Press the knurled knob inward to engage the slotted drive of the Inline Adjustment Tool with the head of the orifice inside the inlet fitting. Then, turn the orifice Copyright ©2008 XS Scuba...
  • Page 18: Subjective Breathing Test

    AirWave Octo slightly counter-clockwise while lightly depressing the purge cover to prevent wear on the seat. Do not adjust any further than is needed to establish a slight leak. 6. Hold the drive of the Inline Adjustment Tool engaged with the orifice.
  • Page 19: Flowbench Testing (Optional)

    Disinfect the mouthpiece, and dry the regulator completely with a clean towel. This completes the over- haul service procedures for the AirWave regulator. Copyright ©2008 XS Scuba...
  • Page 20: Troubleshooting Guide

    AirWave Octo Troubleshooting Guide Second Stage Symptom poSSible CauSe treatment 1. Excessive intermediate pressure. 1. Refer to first stage troubleshooting Freeflow or leakage 2. Damaged or worn LP seat. 2. Replace with new. 3. Damaged orifice sealing surface. 3. Replace with new. 4.
  • Page 21: Schematic & Parts List

    LP Hose, 36" 12 ..RP320-12 Tie Strap 29 ..RP320-29 O-ring 13 ..RP320-13 Housing 14 ..RP320-14 Lever Pad 15 ..RP320-15 Air Barrel * Bold Indicates Overhaul Replacement Part - Provided In Parts Kit #RK2 Copyright ©2008 XS Scuba...
